Cevon M60 Type 10 Wallwasher White Trim 3000K

M60 Series

Select your M60-T10

21 items

M60-T1
Cevon M60 Type 1 Dark Art Adjustable Black 3000K
Watts6.5W
Lumens500lm
Tilt Angle20°
Rotate Angle355°
M60-T2
Cevon M60 Type 2 Lotus Black 3000K
Watts9W
Lumens650lm
M60-T3
Cevon M60 Type 3 Dark Art Fixed Black 3000K
Watts9W
Lumens750lm
M60-T5
Cevon M60 Type 5 Adjustable Spot Black 3000K
Watts6.5W
Lumens500lm
Tilt Angle40°
Rotate Angle355°
M60-T6
Cevon M60 Type 6 Black Hole Black 3000K
Watts9W
Lumens600lm
M60-T7
Cevon M60 Type 7 Adjustable Highlighter Black 3000K
Watts6.5W
Lumens500lm
Tilt Angle30°
Rotate Angle355°
M60-T9
Cevon M60 Type 9 Pinpoint Black 3000K
Watts9W
Lumens290lm
M60-T10
Cevon M60 Type 10 Wallwasher Black Trim 3000K
Watts9W
Lumens550lm
Rotate Angle355°
M60-T11
Cevon M60 Type 11 Classico Fixed Black 3000K
Watts9W
Lumens730lm
M60-T13
Cevon M60 Type 13 Dark Art Adjustable Spot Black 3000K
Watts6.5W
Lumens550lm
Tilt Angle40°
Rotate Angle355°
M60-T15
Cevon M60 Type 15 Dark Art Adjustable Spot Black 3000K
Watts9W
Lumens760lm
Tilt Angle60°
Rotate Angle355°
M60-T16
Cevon M60 Type 16 Dark Art Adjustable Spot Black 3000K
Watts12W
Lumens1030lm
Tilt Angle60°
Rotate Angle355°
M60-T18
Cevon M60 Type 18 Dark Art Adjustable Spot Black 3000K
Watts9W
Lumens720lm
Tilt Angle90°
Rotate Angle355°
M60-T19

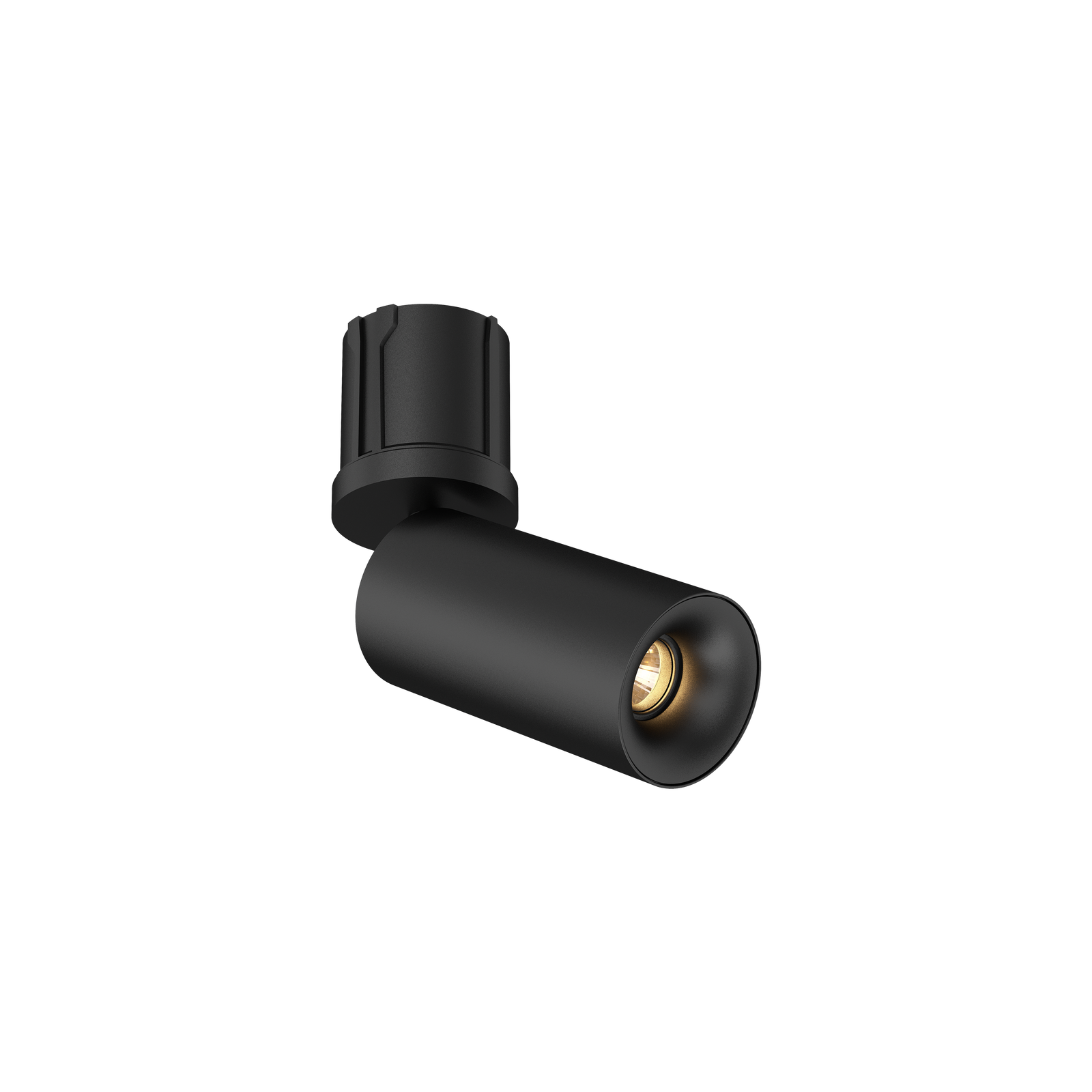

Cevon M60 Type 19 Dark Art Adjustable Spot Black 3000K
Watts12W
Lumens1020lm
Tilt Angle90°
Rotate Angle355°
M60-T19-XL

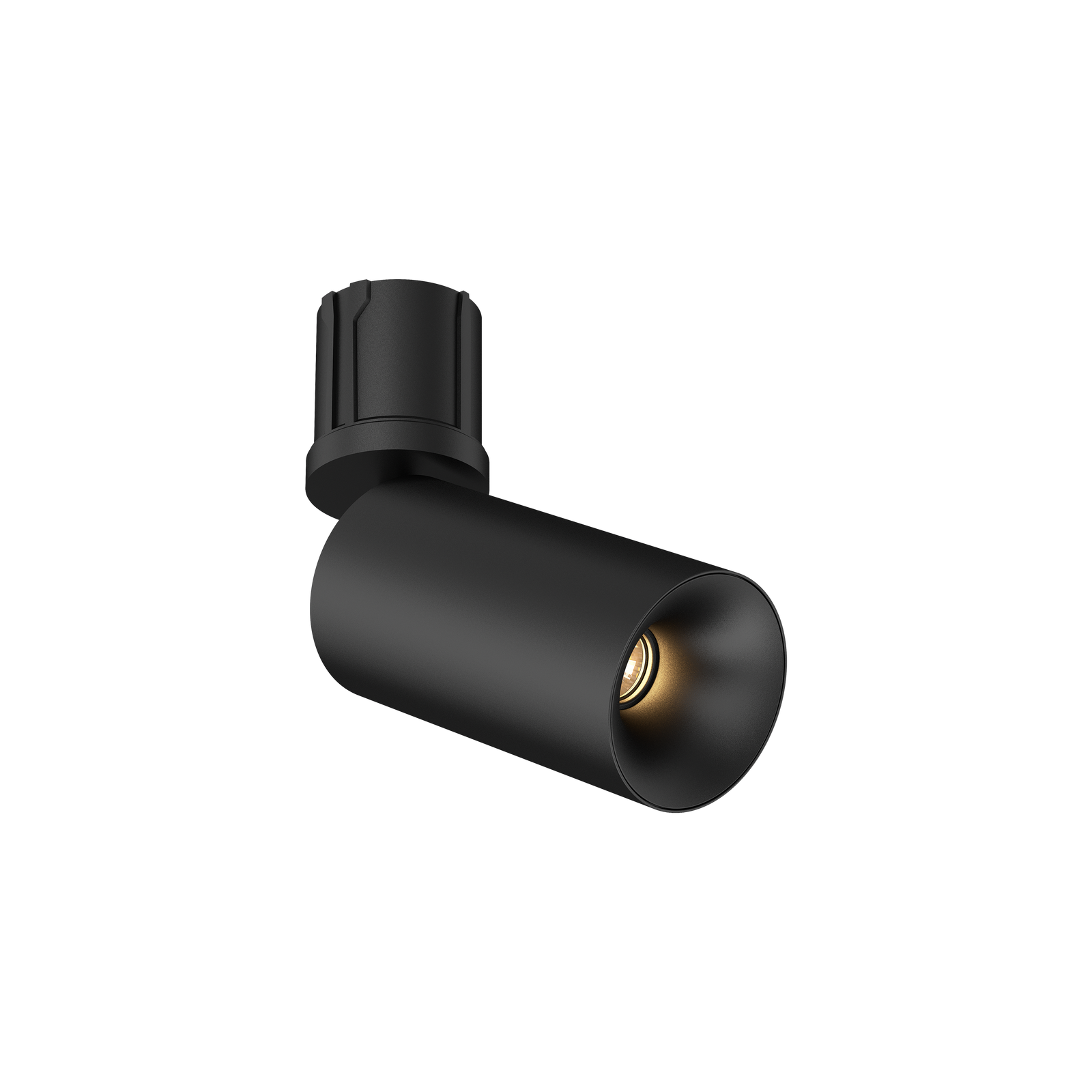

Cevon M60 Type 19-XL Dark Art Adjustable Spot Black 3000K
Watts17W
Lumens1370lm
Tilt Angle90°
Rotate Angle355°
M60-T21

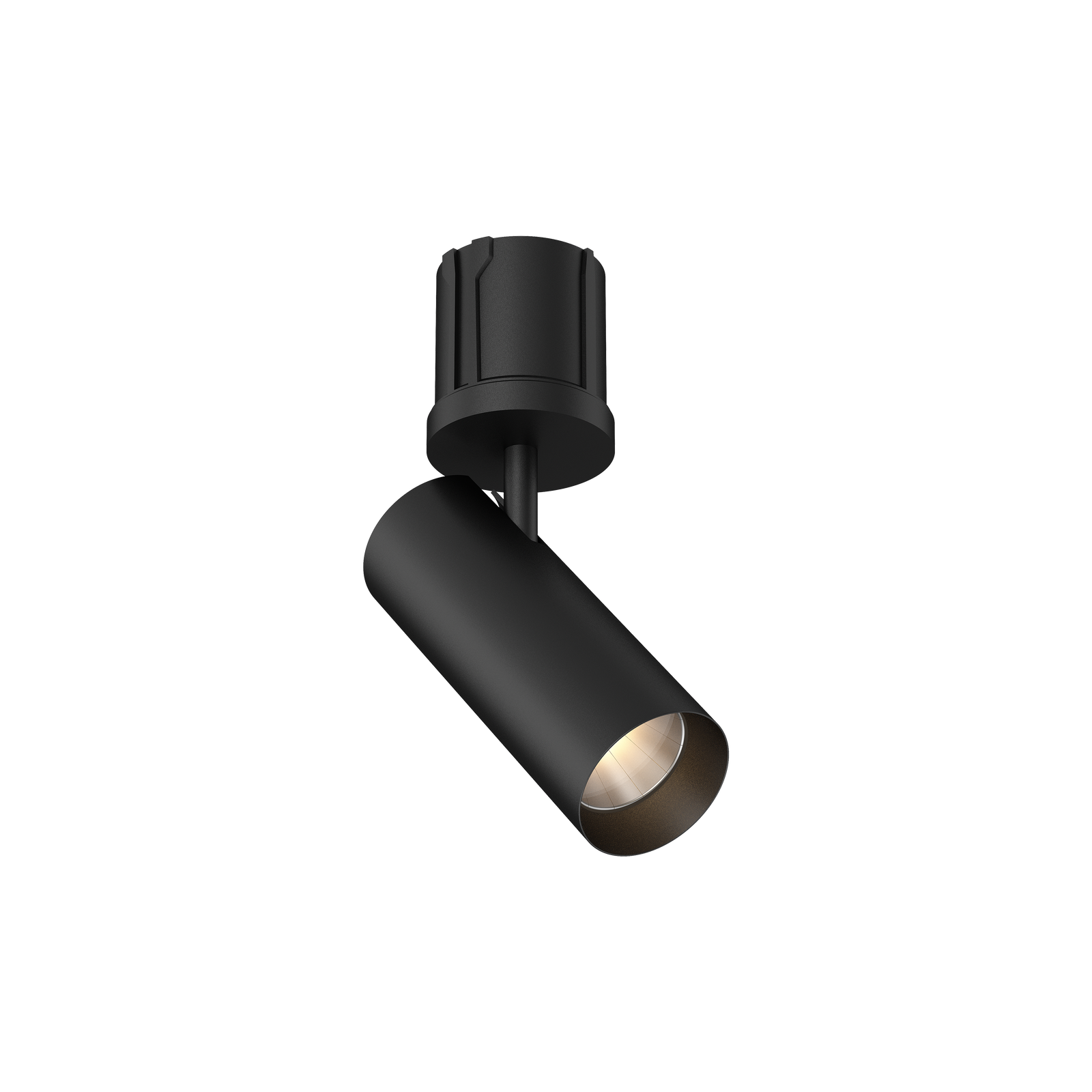

Cevon M60 Type 21 Adjustable Spot Black 3000K
Watts25W
Lumens2500lm
M60-T22

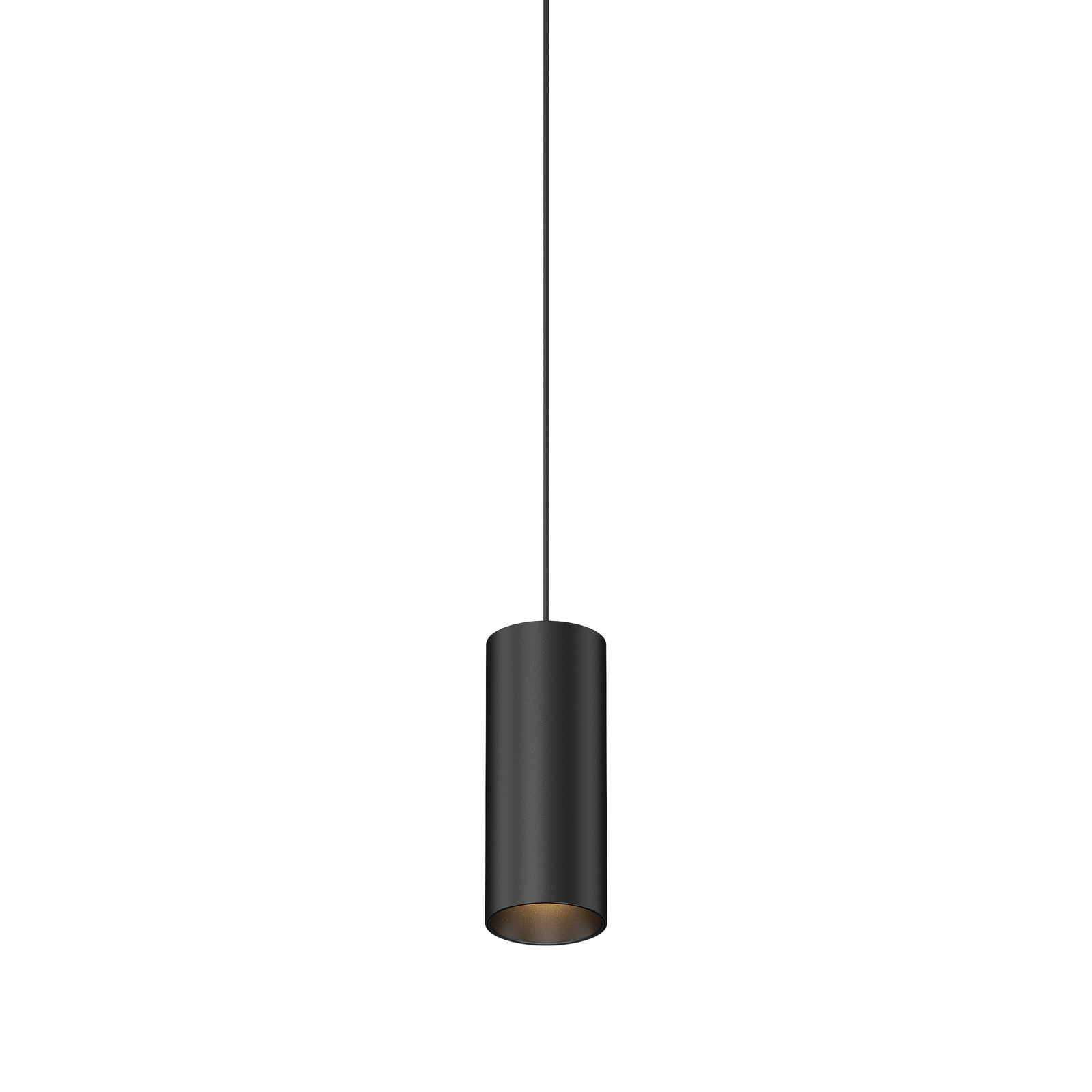

Cevon M60 Type 22 Dark Art Pendant Spot Black 3000K
Watts9W
Lumens720lm
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black 3000K
Watts12W
Lumens1020lm
M60-T25
Cevon M60 Type 25 Dark Art Pendant Spot Black 3000K
Watts9W
Lumens760lm
M60-T26
Cevon M60 Type 26 Dark Art Pendant Spot Black 3000K
Watts12W
Lumens1030lm
M60-T30
Cevon M60 Type 30 Adjustable Spot Black 3000K
Watts13W
Lumens560lm
Tilt Angle355°
Rotate Angle355°
Back

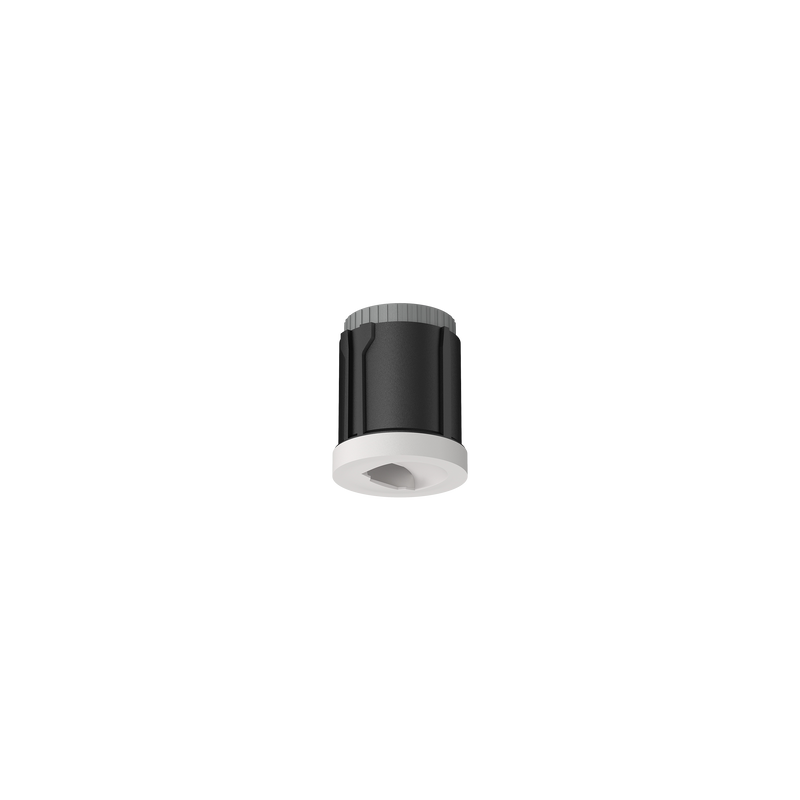

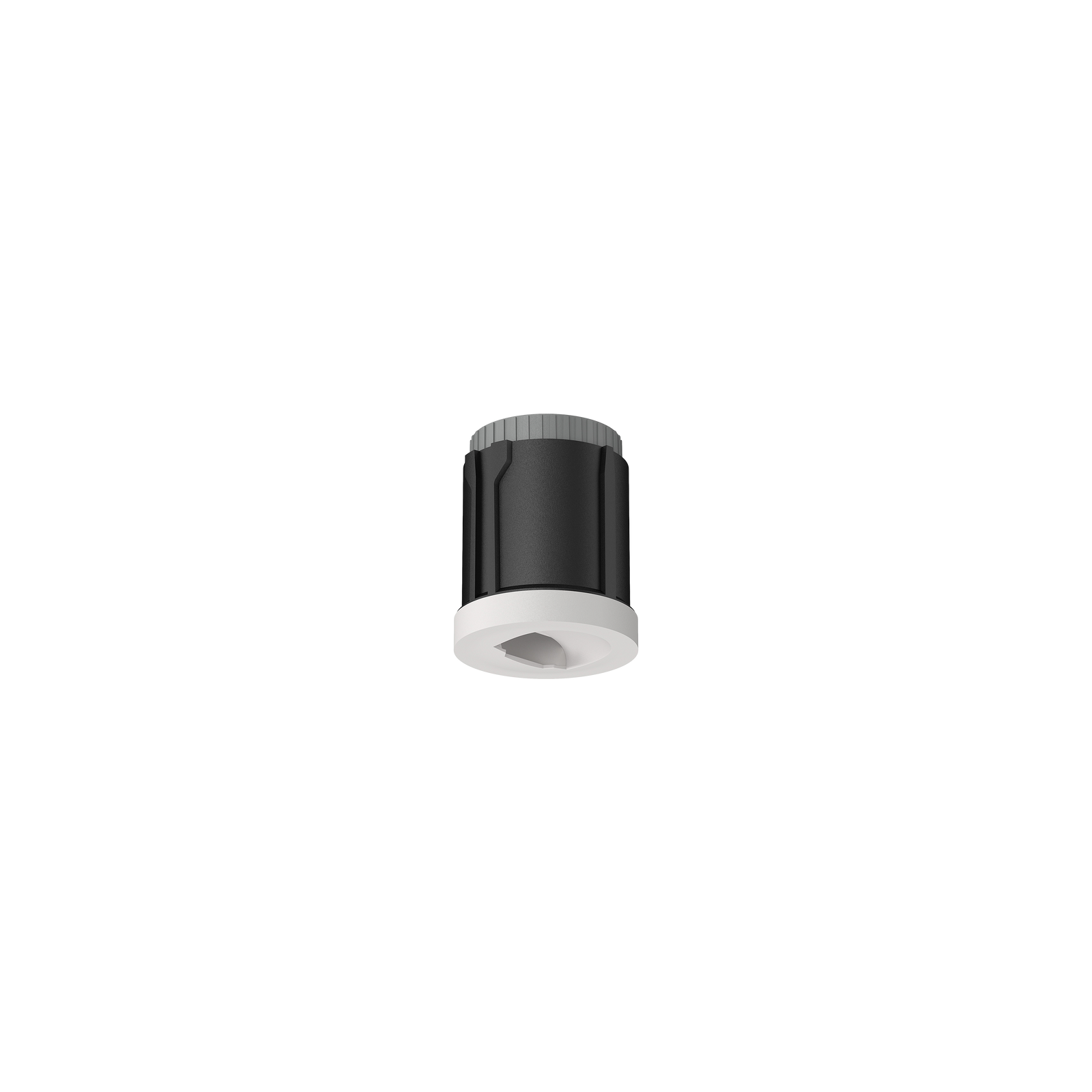

Cevon M60 Type 10 Wallwasher White Trim 3000K

M60-T10-W3K

All M60-T10-W3K

M60-T10

  • Checking stock...
Cevon Type 10 Module - Wallwasher 9W 3000K 260mA 60° White Trim
Module
Cevon M60 Type 10 Wallwasher White Trim 3000K

M60-T10-W3K Cevon M60 Type 10 Wallwasher White Trim 3000K

Lumens

Watts

550lm

9W

View Options

Frame

Add Frame

Frame not included

View Options

Driver

Add Driver

driver not included

View Options

Add to

Jump to

Specifications Downloads

Select Module

Cevon M60 Type 10 Wallwasher White Trim 3000K

M60-T10

Cevon M60 Type 10 Wallwasher White Trim 3000K

Temp.

3000K Warm White

Lumens

550lm

Rotate Angle

355°

Watts

9W

View Details
Cevon M60 Type 10 Wallwasher Black Trim 3000K

M60-T10

Cevon M60 Type 10 Wallwasher Black Trim 3000K

Temp.

3000K Warm White

Lumens

550lm

Rotate Angle

355°

Watts

9W

View Details

Select Frame

Frame sold separately. Please select below.

Cevon Type Recessed Round Frame for M60 Black

F60-RR

Cevon Type Recessed Round Frame for M60 Black

Cut out

Ø75mm

View Details
Cevon Type Recessed Round Frame for M60 White

F60-RR

Cevon Type Recessed Round Frame for M60 White

Cut out

Ø75mm

View Details
Cevon Type Recessed Oval Double Frame for M60 Black

F60-RR2

Cevon Type Recessed Oval Double Frame for M60 Black

Cut out

2xØ75mm @72mm centres

View Details
Cevon Type Recessed Oval Double Frame for M60 White

F60-RR2

Cevon Type Recessed Oval Double Frame for M60 White

Cut out

2xØ75mm @72mm centres

View Details
Cevon Type Recessed Square Frame for M60 Black

F60-RSQ

Cevon Type Recessed Square Frame for M60 Black

Cut out

Ø75mm

View Details
Cevon Type Recessed Square Frame for M60 White

F60-RSQ

Cevon Type Recessed Square Frame for M60 White

Cut out

Ø75mm

View Details
Cevon Type Recessed Rectangular Double Frame for M60 Black

F60-RSQ2

Cevon Type Recessed Rectangular Double Frame for M60 Black

Cut out

2xØ75mm @72mm centres

View Details
Cevon Type Recessed Rectangular Double Frame for M60 White

F60-RSQ2

Cevon Type Recessed Rectangular Double Frame for M60 White

Cut out

2xØ75mm @72mm centres

View Details
Cevon Type Trimless Frame for M60 White

F60-TL

Cevon Type Trimless Frame for M60 White

Cut out

Ø105mm

View Details
Cevon Type Surface Cylinder for M60 Black

SF60

Cevon Type Surface Cylinder for M60 Black

View Details
Cevon Type Surface Cylinder for M60 White

SF60

Cevon Type Surface Cylinder for M60 White

View Details

Select driver

driver sold separately. Please select below.

Dimmable

260mA 12W Dimmable Constant Current DX Series Driver

DCC260-DX-12W

260mA 12W Dimmable Constant Current DX Series Driver

Watts

6W-12W

View Details

Dali

180-500mA 12W Constant Current Dali Driver

DCC180500-DD-1012W

180-500mA 12W Constant Current Dali Driver

Watts

10W-12W

View Details

Casambi

150-500mA 12W Constant Current Casambi Driver

DCC150500-CAS-712W

150-500mA 12W Constant Current Casambi Driver

Watts

7.5W-12W

View Details

Specifications

Cevon M60 Type 10 Wallwasher White Trim 3000K

Module

M60-T10-W3K

Finish

White

Colour Temp

3000K Warm White

Watts

9W

Lumens

550lm

Beam Angle

60°

Dimming / Control

Dimmable

CRI

97

Lifespan

105,000hrs (L90 B10)

Rotate Angle

355°

Ingress Protection

IP43

Diameter

60mm

Height

72mm

Binning

SDCM 2

Classification

IC

Height Clearance to Building Elements

0mm

Side Clearance to Building Elements

0mm

Material

Aluminium

Electrical Class

Class III

Driver Output Current

260mA

Driver Included / Incorporated

Driver not included, sold separately

Warranty

5 Year Warranty

Frame

None

Driver

None

Downloads

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login

Our technical resources are available to registered users only. Please log in or apply for an account to unlock specifications, installation guides, photometrics and other support materials.

Login
Download All
Cevon M60 Type 10 Wallwasher White Trim 3000K
