M60 Series
M60-T10
- Checking stock...
Configure your M60-T10 4 options
- White (selected)
- Black

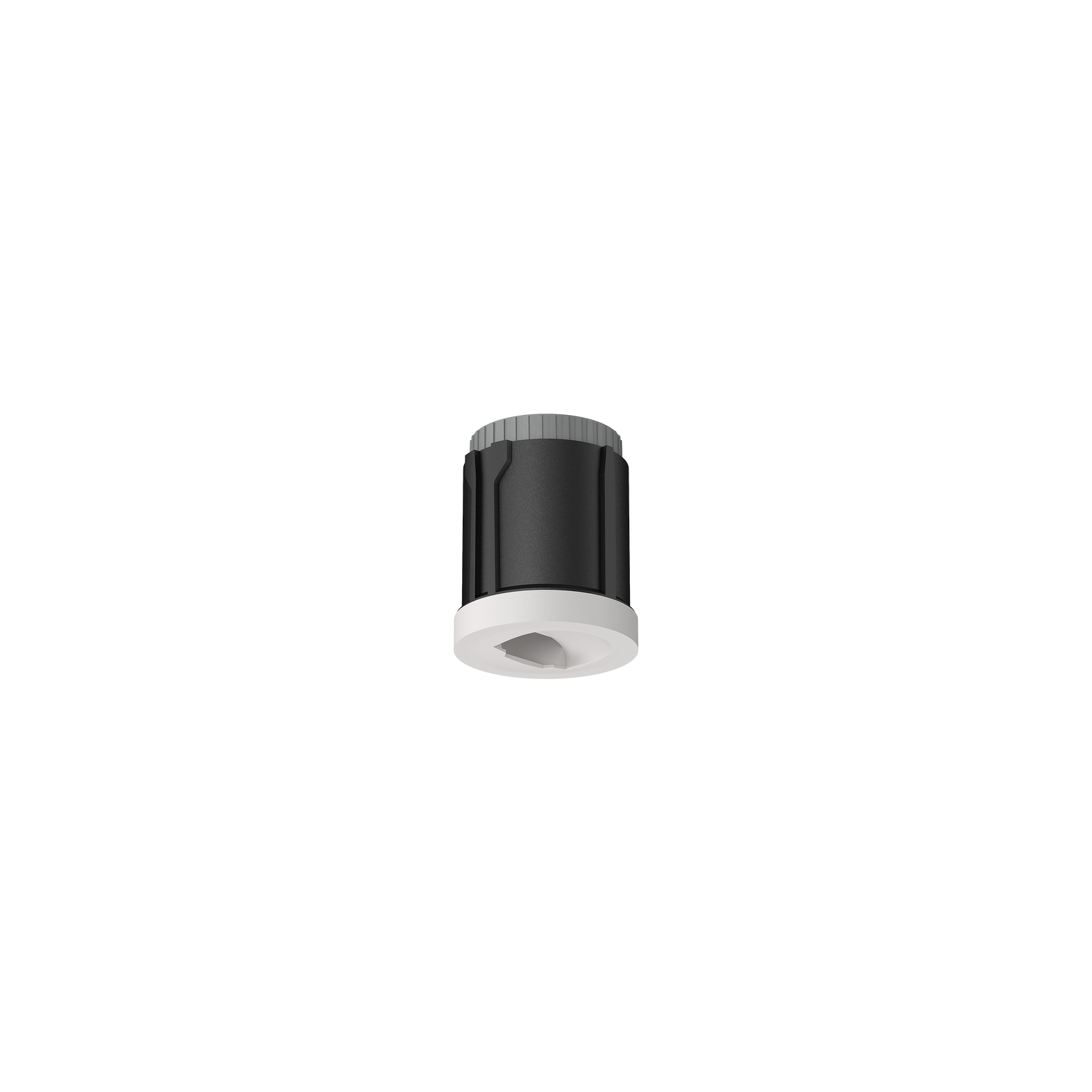

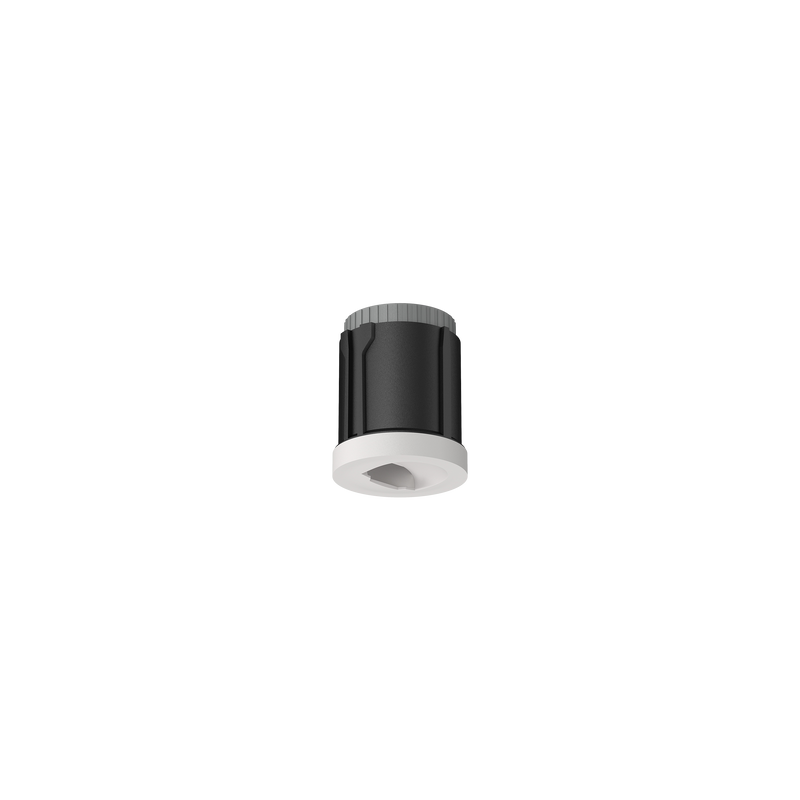

M60-T10-W27K Cevon M60 Type 10 Wallwasher White Trim 2700K
Lumens
Watts
540lm
9.5W
Not included
Please select from options
Not included
Please select from options
Select Module
M60-T10
Cevon M60 Type 10 Wallwasher White Trim 2700K
Temp.
2700K Warm White
Lumens
540lm
Rotate Angle
355°
Watts
9.5W
M60-T10
Cevon M60 Type 10 Wallwasher White Trim 3000K
Temp.
3000K Warm White
Lumens
550lm
Rotate Angle
355°
Watts
9.5W
M60-T10
Cevon M60 Type 10 Wallwasher Black Trim 2700K
Temp.
2700K Warm White
Lumens
540lm
Rotate Angle
355°
Watts
9.5W
M60-T10
Cevon M60 Type 10 Wallwasher Black Trim 3000K
Temp.
3000K Warm White
Lumens
550lm
Rotate Angle
355°
Watts
9.5W
Select Frame
Frame sold separately. Please select below.

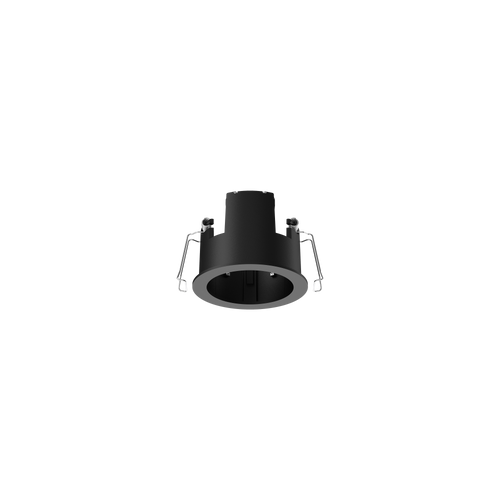

F60-RR
Cevon Type Recessed Round Frame for M60 Black
Cut out
Ø75mm
F60-RR
Cevon Type Recessed Round Frame for M60 White
Cut out
Ø75mm

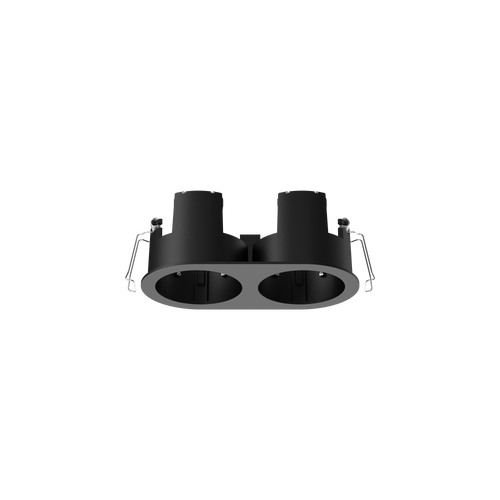

F60-RR2
Cevon Type Recessed Oval Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres

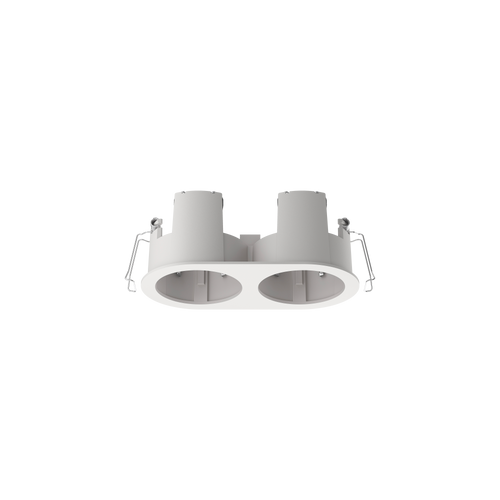

F60-RR2
Cevon Type Recessed Oval Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-RSQ
Cevon Type Recessed Square Frame for M60 Black
Cut out
Ø75mm

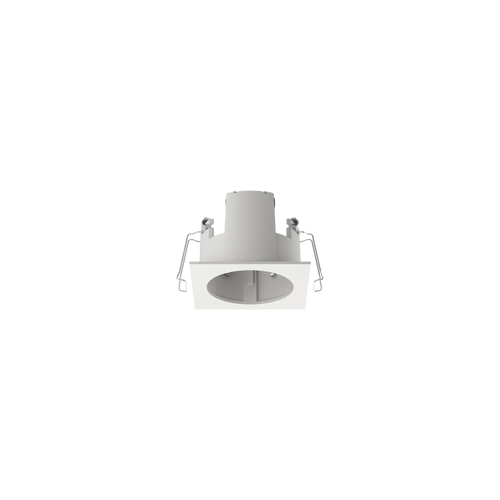

F60-RSQ
Cevon Type Recessed Square Frame for M60 White
Cut out
Ø75mm
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres

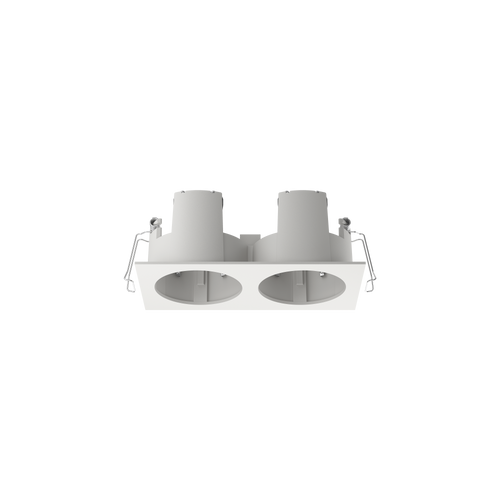

F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-TL
Cevon Type Trimless Frame for M60 White
Cut out
Ø105mm
Cevon Type Surface Cylinder for M60 Black

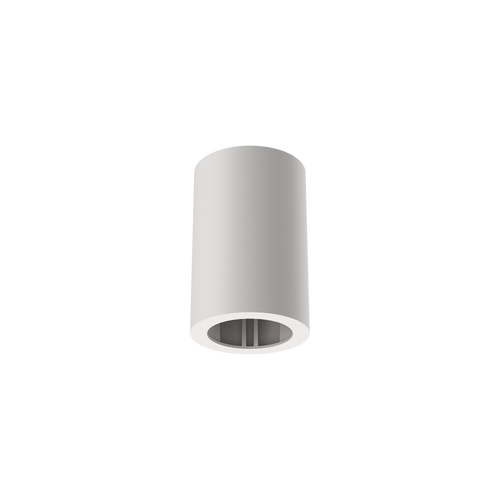

Cevon Type Surface Cylinder for M60 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali

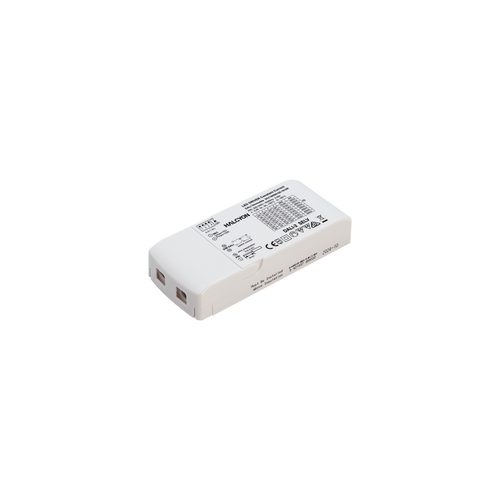

DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
M60-T10-W27K
Finish
White
Colour Temp
2700K Warm White
Watts
9.5W
Lumens
540lm
Beam Angle
60°
Dimming / Control
Dimmable
CRI
97
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
RAL Colour
RAL9003
Diameter
60mm
Height
72mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
