M60 Series
M60-T18-BB3K-36D
M60-T18
- Checking stock...
M60-T18-BB3K-36D Cevon M60 Type 18 Dark Art Adjustable Spot Black 3000K
Lumens
Watts
Tilt Angle
720lm
9W
90°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M60-T18
Cevon M60 Type 18 Dark Art Adjustable Spot Black 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M60-T18
Cevon M60 Type 18 Dark Art Adjustable Spot White 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M60-T18

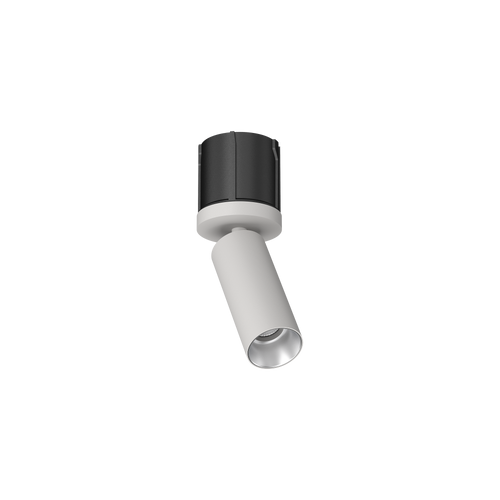

Cevon M60 Type 18 Dark Art Adjustable Spot White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M60-T18
Cevon M60 Type 18 Dark Art Adjustable Spot White, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M60-T18

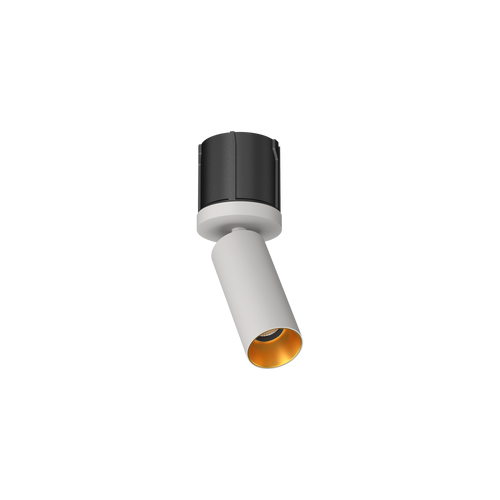

Cevon M60 Type 18 Dark Art Adjustable Spot White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M60-T18

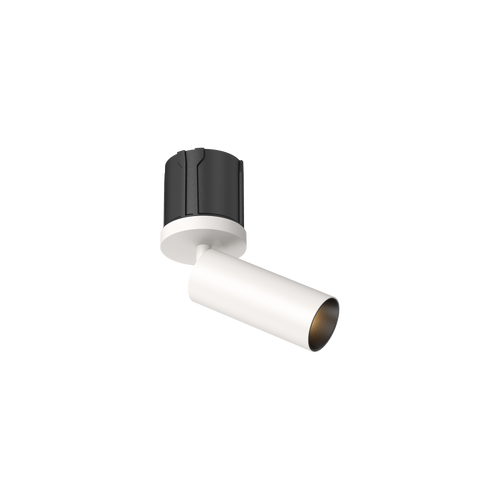

Cevon M60 Type 18 Dark Art Adjustable Spot White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M60-T18

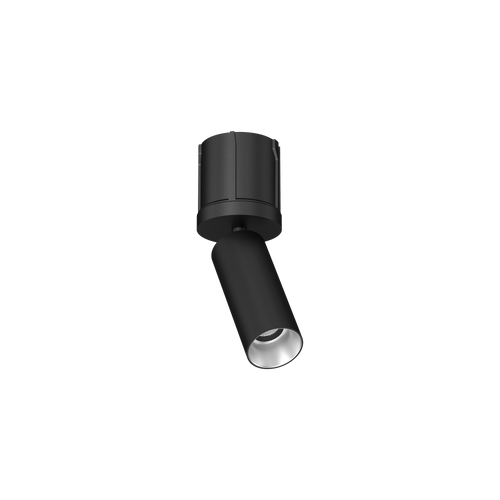

Cevon M60 Type 18 Dark Art Adjustable Spot Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
760lm
Rotate Angle
355°
Watts
9W
M60-T18

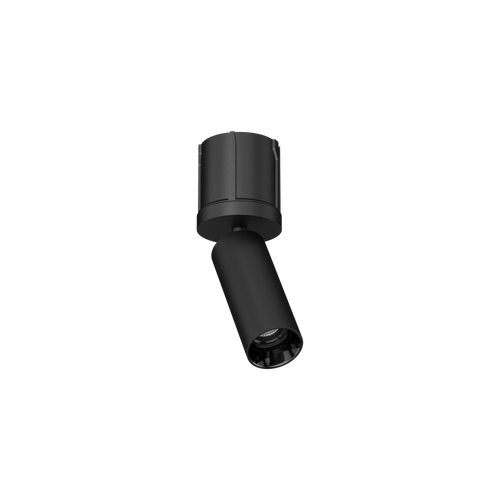

Cevon M60 Type 18 Dark Art Adjustable Spot Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
720lm
Rotate Angle
355°
Watts
9W
M60-T18

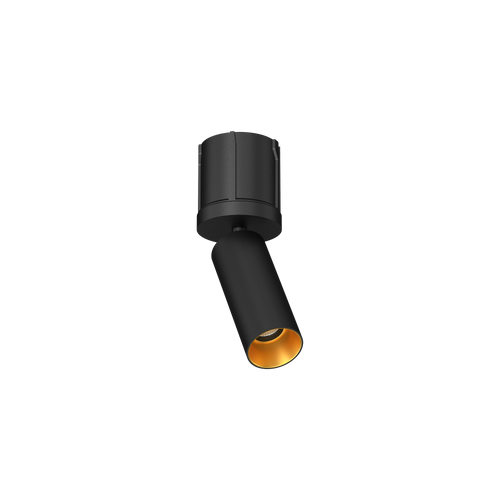

Cevon M60 Type 18 Dark Art Adjustable Spot Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
720lm
Rotate Angle
355°
Watts
9W
Select Frame
Frame sold separately. Please select below.
F60-RR
Cevon Type Recessed Round Frame for M60 Black
Cut out
Ø75mm
F60-RR
Cevon Type Recessed Round Frame for M60 White
Cut out
Ø75mm
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-RSQ
Cevon Type Recessed Square Frame for M60 Black
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 White
Cut out
Ø75mm
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-TL
Cevon Type Trimless Frame for M60 White
Cut out
Ø105mm
SF60
Cevon Type Surface Cylinder for M60 Black
SF60
Cevon Type Surface Cylinder for M60 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
9W
Lumens
720lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
90°
Rotate Angle
355°
Ingress Protection
IP43
Diameter
Base: Ø60mm, Spot: Ø40mm
Height
Base: 65mm, Spot: 100mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
