M80 Series
M80-T7-B27K-36D
M80-T7
- Checking stock...
M80-T7-B27K-36D Cevon M80 Type 7 Adjustable Highlighter Black Trim 2700K
Lumens
Watts
Tilt Angle
620lm
9.5W
30°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M80-T7
Cevon M80 Type 7 Adjustable Highlighter Black Trim 2700K
Temp.
2700K Warm White
Tilt Angle
30°
Lumens
620lm
Rotate Angle
355°
Watts
9.5W
M80-T7
Cevon M80 Type 7 Adjustable Highlighter White Trim 2700K
Temp.
2700K Warm White
Tilt Angle
30°
Lumens
610lm
Rotate Angle
355°
Watts
9.5W
M80-T7
Cevon M80 Type 7 Adjustable Highlighter White Trim 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Lumens
650lm
Rotate Angle
355°
Watts
9.5W
M80-T7

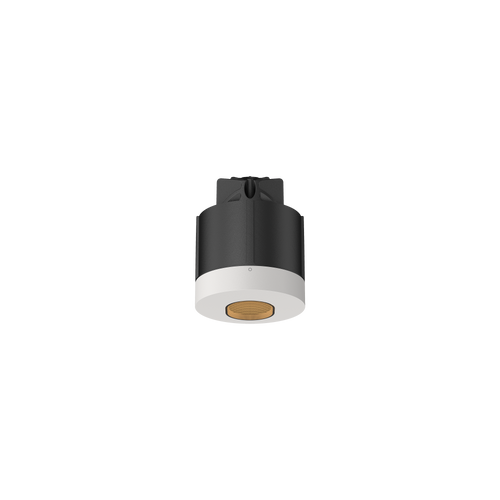

Cevon M80 Type 7 Adjustable Highlighter White Trim 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Lumens
610lm
Rotate Angle
355°
Watts
9.5W
M80-T7
Cevon M80 Type 7 Adjustable Highlighter Black Trim 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Lumens
630lm
Rotate Angle
355°
Watts
9.5W
M80-T7
Cevon M80 Type 7 Adjustable Highlighter Black Trim 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Lumens
680lm
Rotate Angle
355°
Watts
9.5W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC260-DX-12W
260mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
Dali
DCC180500-DD-1012W
180-500mA 12W Constant Current Dali Driver
Watts
10W-12W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
Black
Colour Temp
2700K Warm White
Watts
9.5W
Lumens
620lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
30°
Rotate Angle
355°
Diameter
78mm
Height
95mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
260mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
