M80 Series
M80-T4
- Custom Build - Request Availability
Configure your M80-T4 10 options

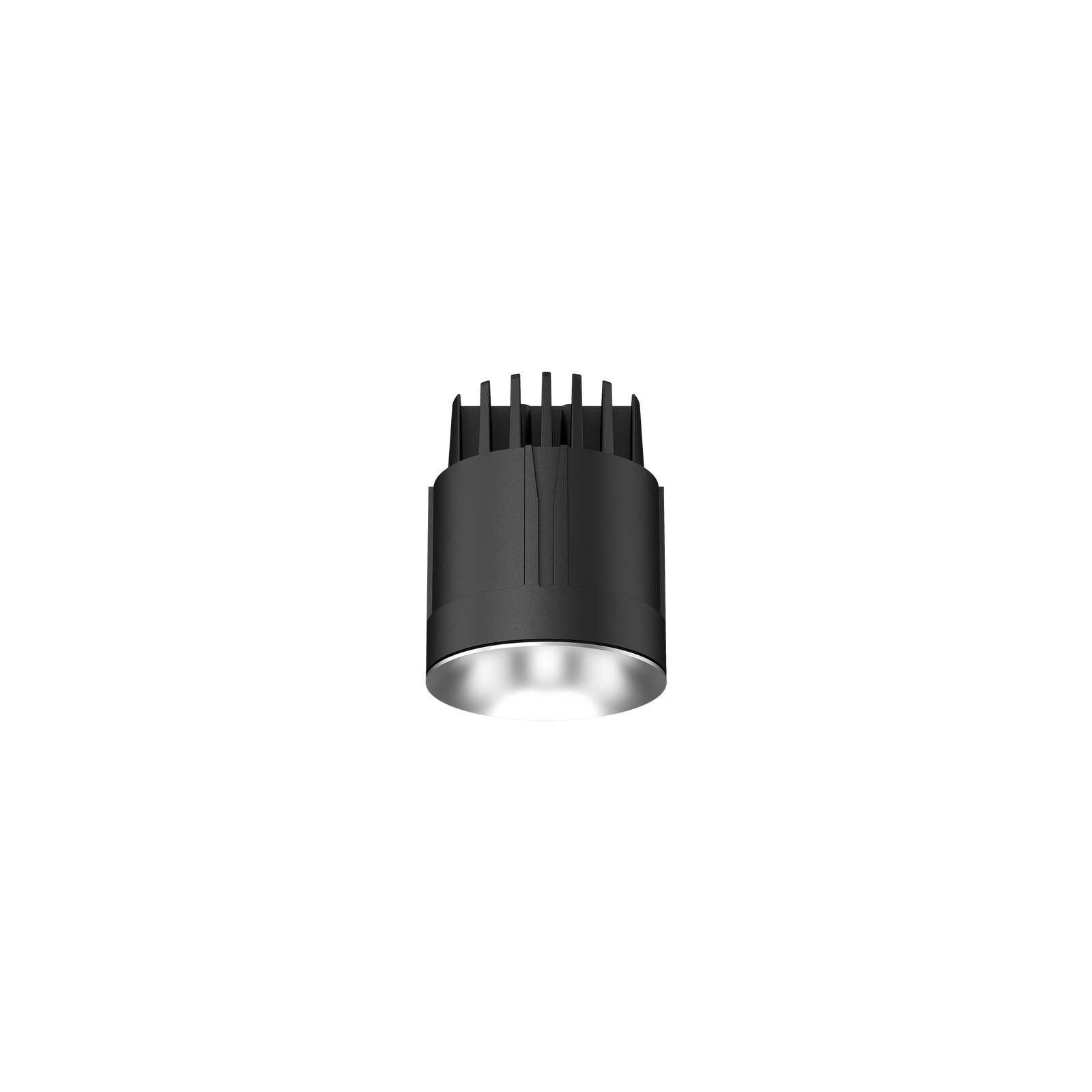

M80-T4-S4K-36D Cevon M80 Type 4 Dark Art Fixed High Output Silver 4000K
Lumens
Watts
1940lm
17W
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output White 3000K
Temp.
3000K Warm White
Lumens
1500lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output White 4000K
Temp.
4000K Natural White
Lumens
1685lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output Black 3000K
Temp.
3000K Warm White
Lumens
1390lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output Black 4000K
Temp.
4000K Natural White
Lumens
1525lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output Gold 3000K
Temp.
3000K Warm White
Lumens
1390lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output Gold 4000K
Temp.
4000K Natural White
Lumens
1445lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1390lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output High Gloss Black 4000K
Temp.
4000K Natural White
Lumens
1445lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output Silver 3000K
Temp.
3000K Warm White
Lumens
1500lm
Watts
17W
M80-T4
Cevon M80 Type 4 Dark Art Fixed High Output Silver 4000K
Temp.
4000K Natural White
Lumens
1940lm
Watts
17W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-20W
500mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T4-S4K-36D
Finish
Silver
Colour Temp
4000K Natural White
Watts
17W
Lumens
1940lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
Ø78mm
Height
100mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
500mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M80-T4-S4K-36D
Specifications
None
