M60 Series
M60-T8-WB27K-55D
M60-T8
- Checking stock...

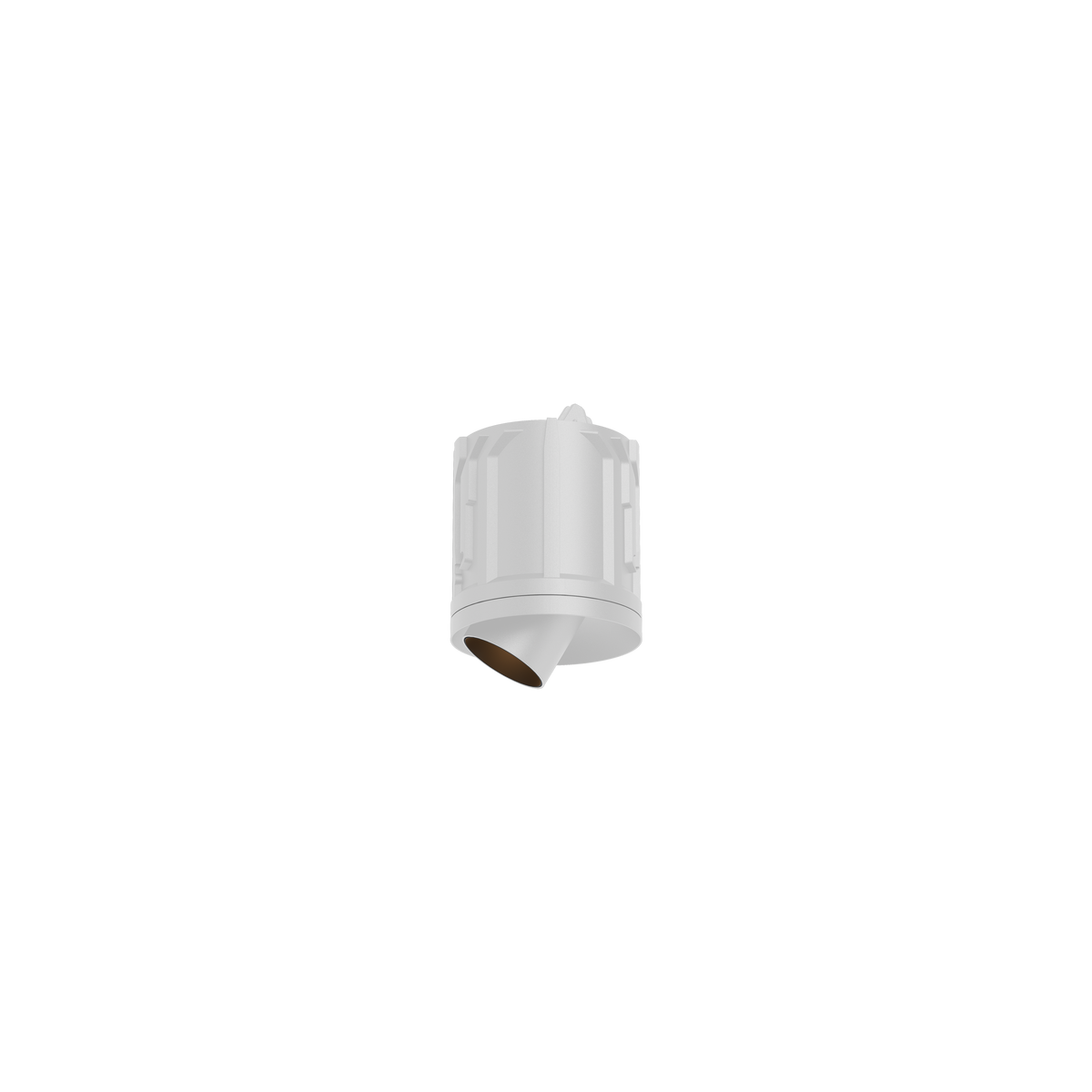

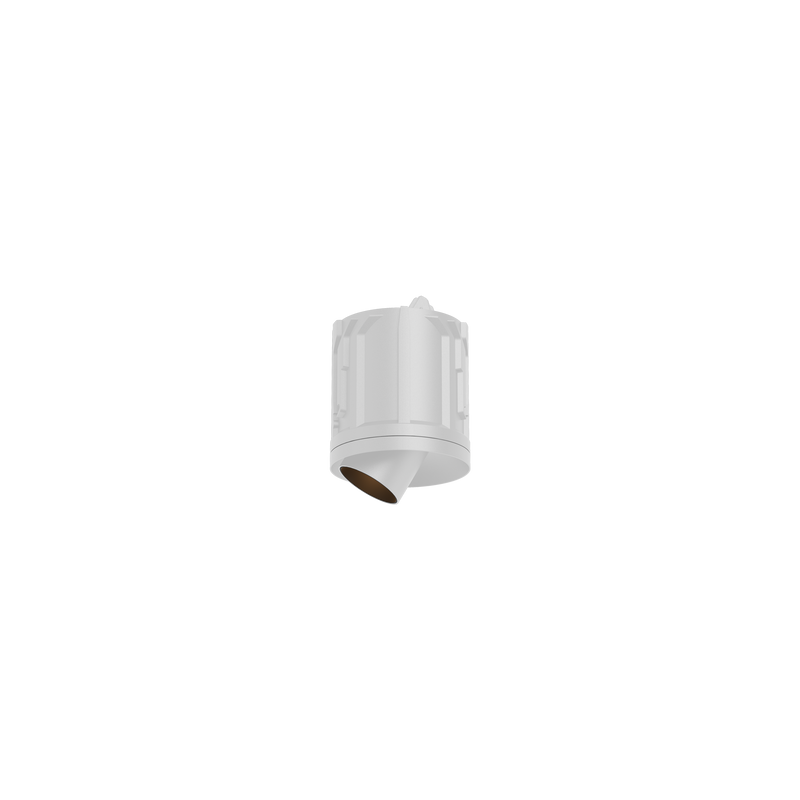

M60-T8-WB27K-55D Cevon M60 Type 8 Adjustable Scopic White, Black 2700K 55D
Lumens
Watts
Tilt Angle
450lm
7W
40°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 2700K 55D
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
450lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 2700K 24D
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
470lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 2700K 36D
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
480lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 3000K 24D
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
520lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 3000K 36D
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
520lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 3000K 55D
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
490lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 4000K 24D
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
520lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 4000K 36D
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
540lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic White, Black 4000K 55D
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
700lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 2700K 24D
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
470lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 2700K 36D
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
480lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 2700K 55D
Temp.
2700K Warm White
Tilt Angle
40°
Lumens
450lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 3000K 24D
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
520lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 3000K 36D
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
520lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 3000K 55D
Temp.
3000K Warm White
Tilt Angle
40°
Lumens
490lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 4000K 24D
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
520lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 4000K 36D
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
540lm
Rotate Angle
355°
Watts
7W
M60-T8
Cevon M60 Type 8 Adjustable Scopic Black 4000K 55D
Temp.
4000K Natural White
Tilt Angle
40°
Lumens
700lm
Rotate Angle
355°
Watts
7W
Select Frame
Frame sold separately. Please select below.
F60-RR
Cevon Type Recessed Round Frame for M60 Black
Cut out
Ø75mm
F60-RR
Cevon Type Recessed Round Frame for M60 White
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 Black
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 White
Cut out
Ø75mm
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-TL
Cevon Type Trimless Frame for M60 White
Cut out
Ø105mm
SF60
Cevon Type Surface Cylinder for M60 Black
SF60
Cevon Type Surface Cylinder for M60 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W-STR
120-200mA 8W Constant Current Mini Slim Phase-Cut Dim Driver
Watts
8.4W (See Spec Sheet)
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
White, Black
Colour Temp
2700K Warm White
Watts
7W
Lumens
450lm
Beam Angle
55°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
40°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
60mm
Height
80mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
200mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
