DCC950A-D-49W-PNL
DCC950A-D-49W-PNL
- Custom Build - Request Availability
Driver Phase-Cut Dimmable Pri:240V Sec: 26-52V DC Preset 950mA 28-49W c/w QC Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Dimmable (phase-cut)

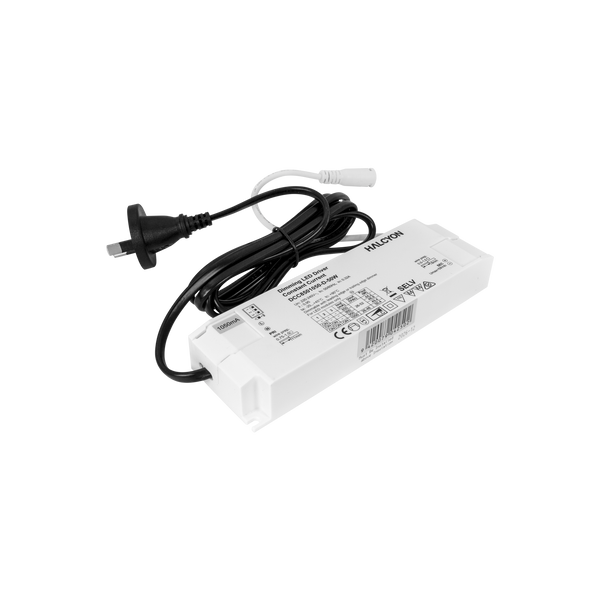

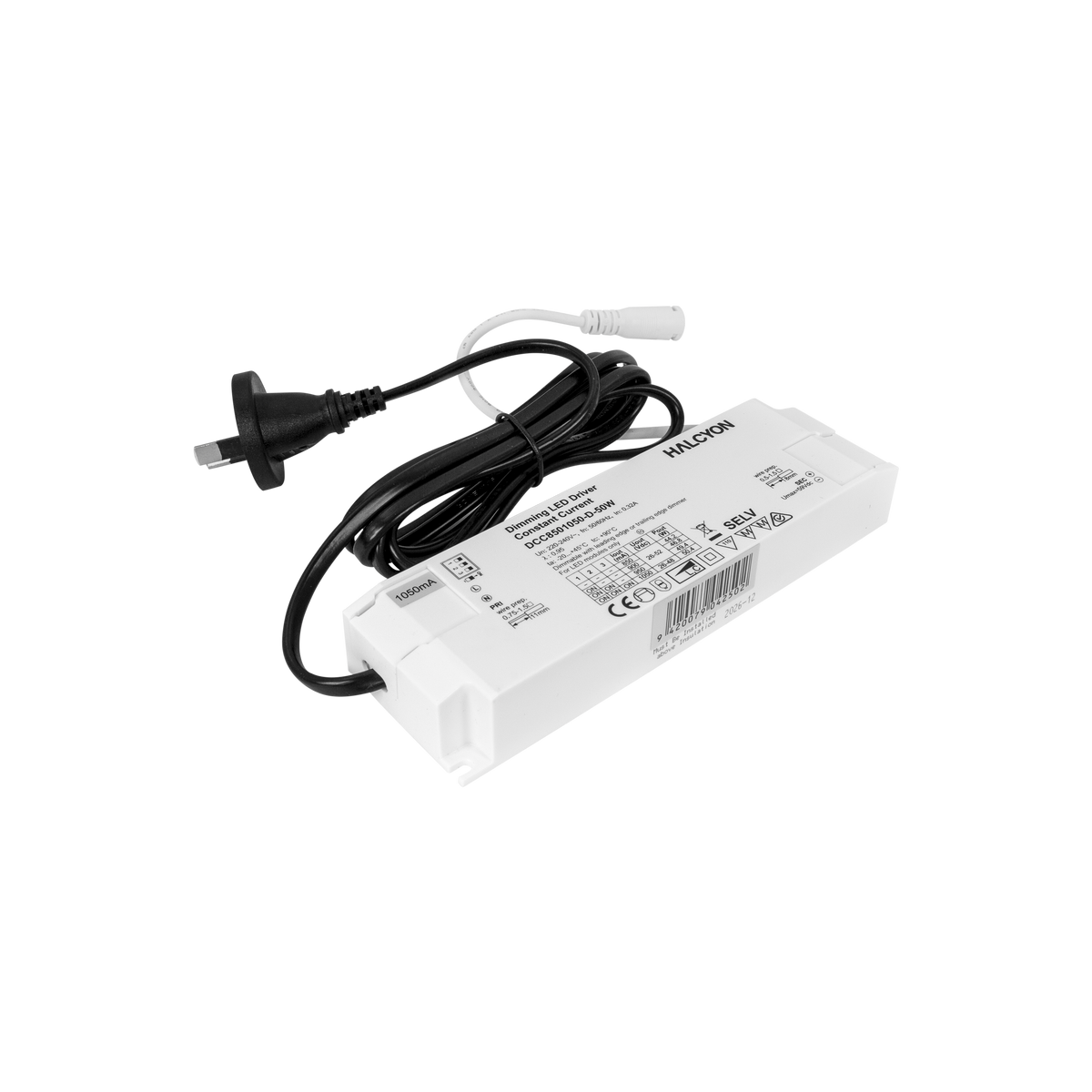

DCC950A-D-49W-PNL 950mA 49W Constant Current Dimmable Driver
Watts
24.7-49.4W
Watts
24.7-49.4W
Specifications
Watts
24.7-49.4W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Height
25mm
Width
52mm
Length
166mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
26-52V
Driver Output Current
950mA
Power Factor
0
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
