R774
- Checking stock...
Configure your R774 3 options
- White (selected)
- Black — not available in this configuration

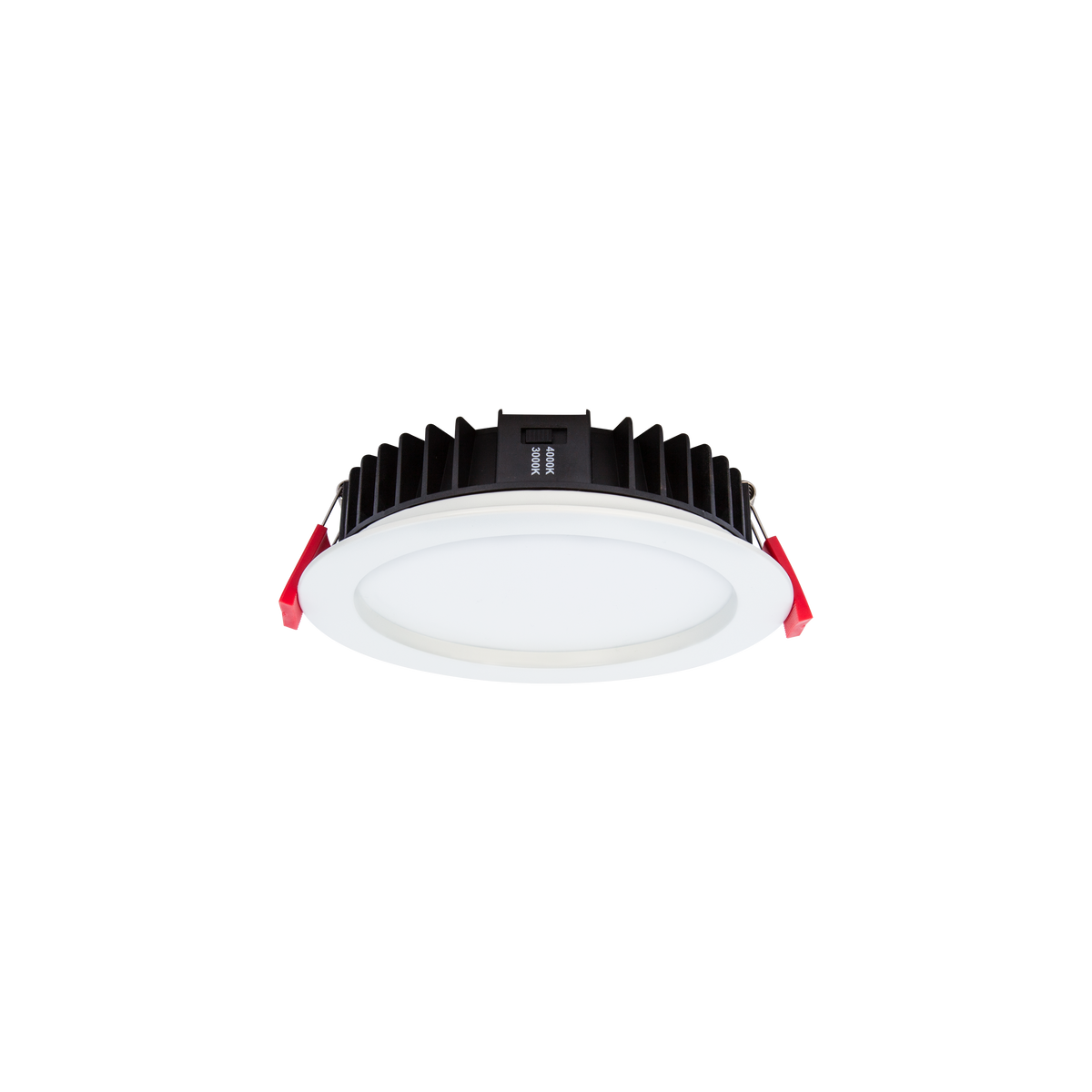

R774 W34V3 Large Premium Economy 9-15W Downlight Kit White 3000K / 4000K
Lumens
Watts
1950lm (See Spec Sheet)
9W or 15W
DCC200350-DX-815W 200-350mA 15W Dimmable Constant Current DX Series Driver
Watts
8.4W-15W
Watts
8.4W-15W
Select Downlights
Large Premium Economy 9-15W Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1950lm (See Spec Sheet)
Watts
9W or 15W
Large Premium Economy 9-15W Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1750lm (See Spec Sheet)
Watts
9W or 15W
LEDE Premium Economy Large Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
145mm
Lumens
1800lm (See spec sheet)
Watts
18W
Specifications
R774 W34V3
Cut Out
145mm
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
9W or 15W
Lumens
1950lm (See Spec Sheet)
Beam Angle
100°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
100,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
160mm
Height
43mm
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
Adjustable 200mA or 350mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC200350-DX-815W
Watts
8.4W-15W
Input
220-240V
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
Classification
Suitable for Installation Under Insulation
