X26-STSRGBW-36D
X26
- Custom Build - Stock Available

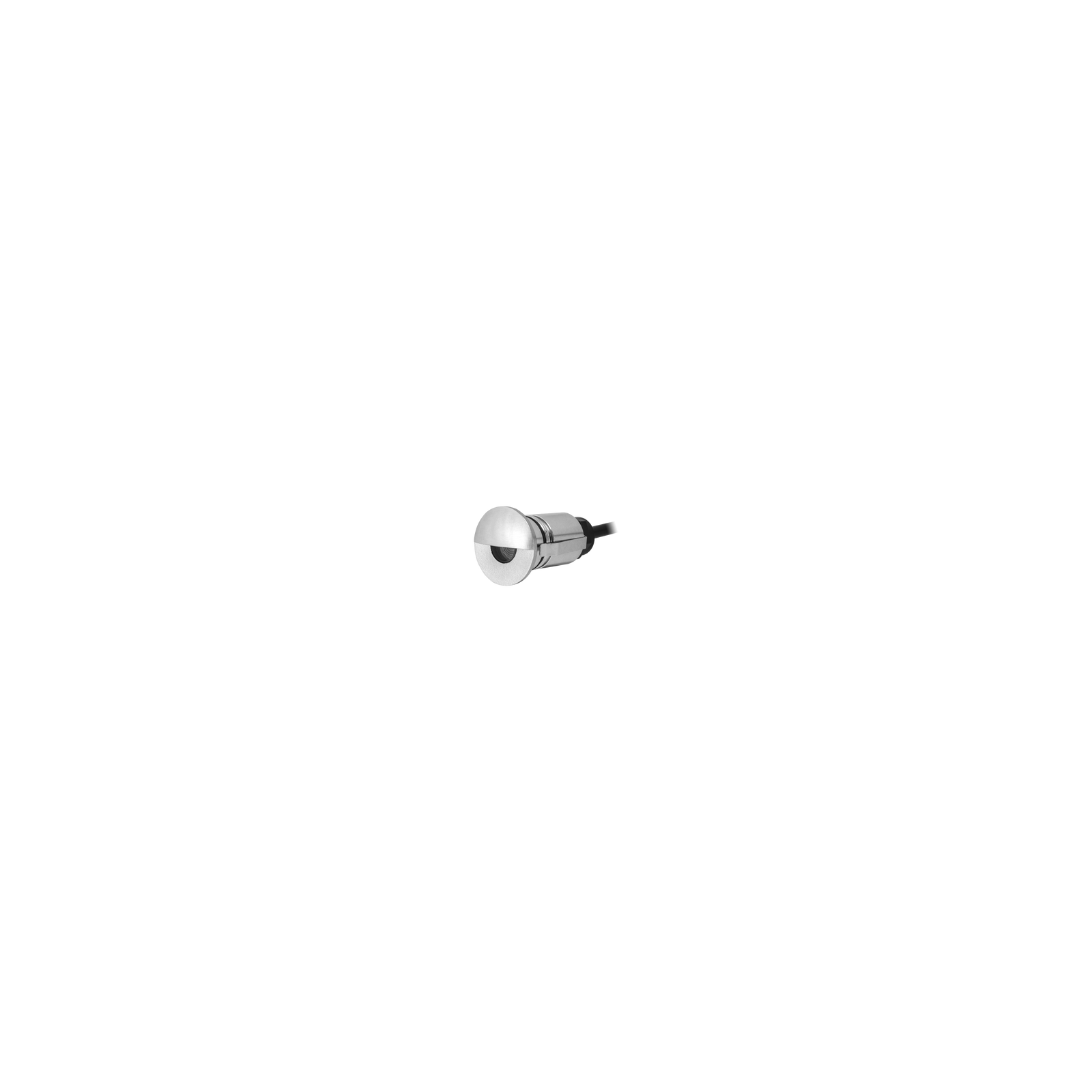

X26-STSRGBW-36D Exterior Recessed Mini Eyelid 316 Stainless Steel RGBW 36°
Lumens
Watts
Ambient light source
1W
View Options
Add Driver
driver not included
View Options
-
In-Wall Installation Sleeve (X25-X32)
Select Multi-Use Effect
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel RGBW 36°
Temp.
RGBW
Cut out
Ø19mm
Lumens
Ambient light source
Watts
1W
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel 2700K 17°
Temp.
2700K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel 2700K 36°
Temp.
2700K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel 3000K 17°
Temp.
3000K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel 3000K 36°
Temp.
3000K Warm White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel 4000K 17°
Temp.
4000K Natural White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel 4000K 36°
Temp.
4000K Natural White
Cut out
Ø19mm
Lumens
30lm
Watts
1W
X26
Exterior Recessed Mini Eyelid 316 Stainless Steel RGBW 17°
Temp.
RGBW
Cut out
Ø19mm
Lumens
Ambient light source
Watts
1W
Select driver
driver sold separately. Please select below.
Non Dimmable
DCV24-40W-IP
IP67 24V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
DCV24-75W-IP
IP67 24V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
DCV24-150W-IP
IP67 24V 150W Constant Voltage Non-dimmable Driver
Watts
0W-150W
DCV24-200W-IP
IP67 24V 200W Constant Voltage Non-dimmable Driver
Watts
0W-200W
DCV24-320W-IP
IP67 24V 320W Constant Voltage Non-dimmable Driver
Watts
0W-320W
Specifications
Finish
Stainless Steel
Colour Temp
RGBW
Watts
1W
Lumens
Ambient light source
Beam Angle
36°
Input
24V DC (Constant Voltage)
CRI
80
Lifespan
40,000hrs (L80 B10)
Ingress Protection
IP67
Cut Out
Ø19mm
Diameter
25mm
Height
45mm
Classification
IC-F
Material
316 Stainless Steel
Electrical Class
Class III
Driver Included / Incorporated
Driver not included, sold separately
Impact Rating
IK10
Warranty
5 Year Warranty
Driver
None
Downloads
