R744 W3
R744
- Checking stock...

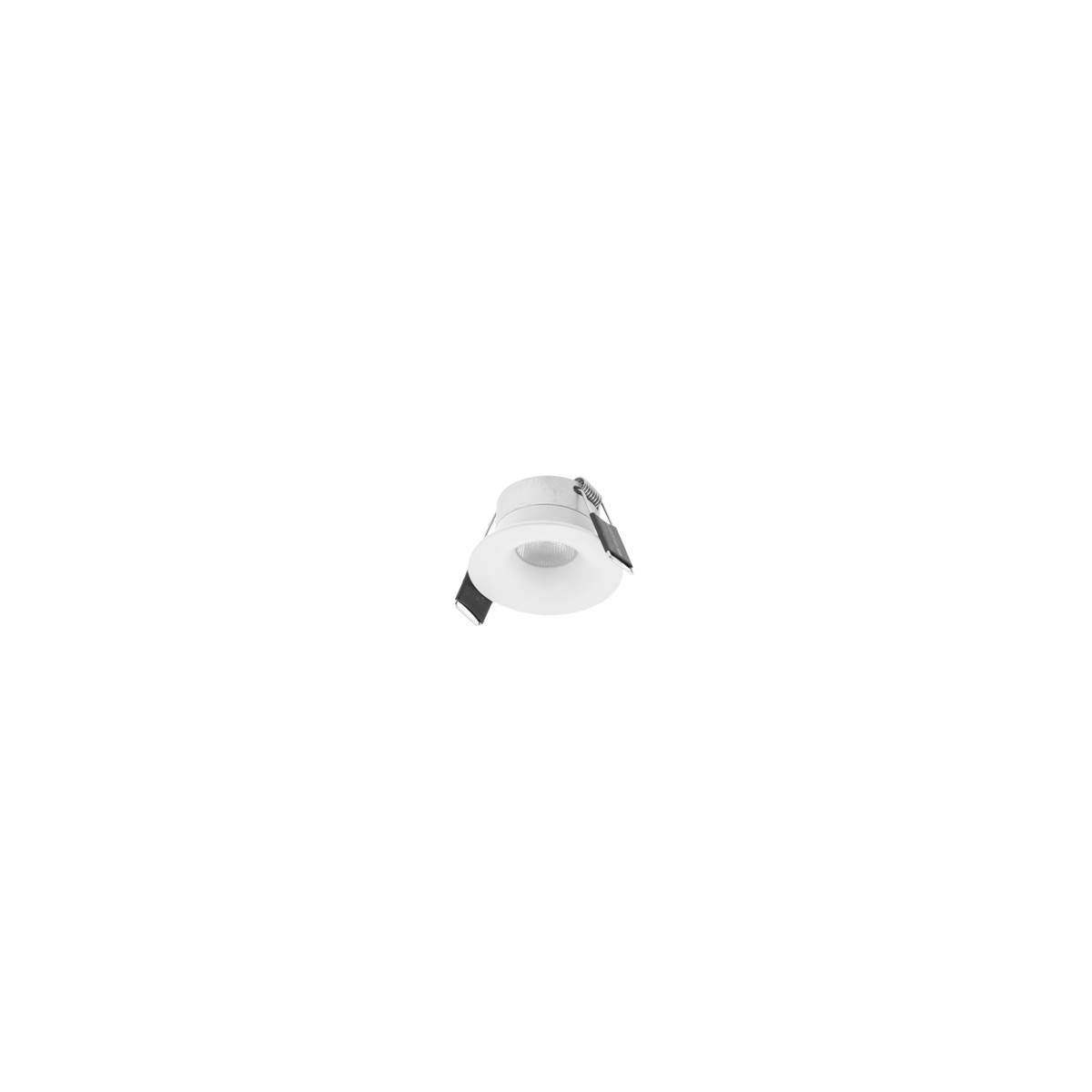

R744 W3 Mini Fixed Curve White 3000K
Lumens
Watts
330lm
3.3W
View Options
Add Driver
driver not included
View Options
Select Cabinet & Display
R744
Mini Fixed Curve White 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W

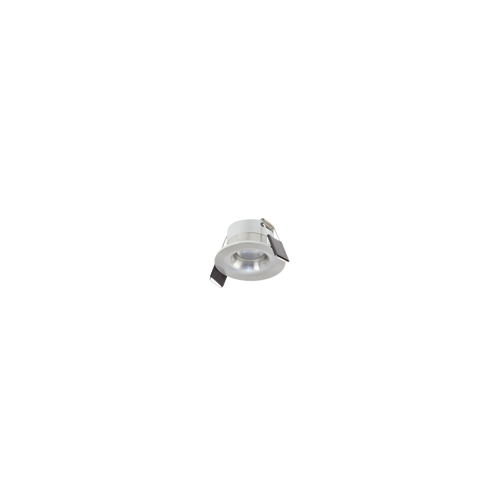

R744
Mini Fixed Curve 316 Stainless Steel 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W

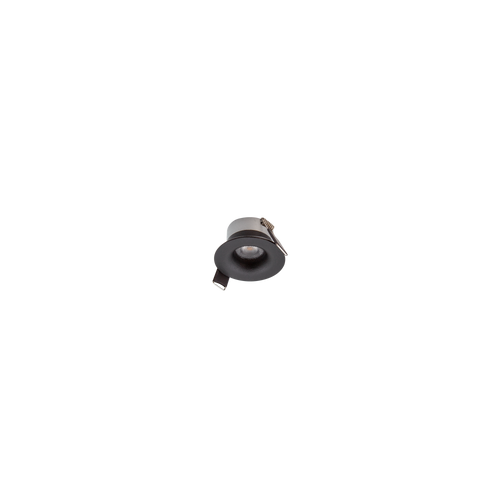

R744
Mini Fixed Curve Black 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W

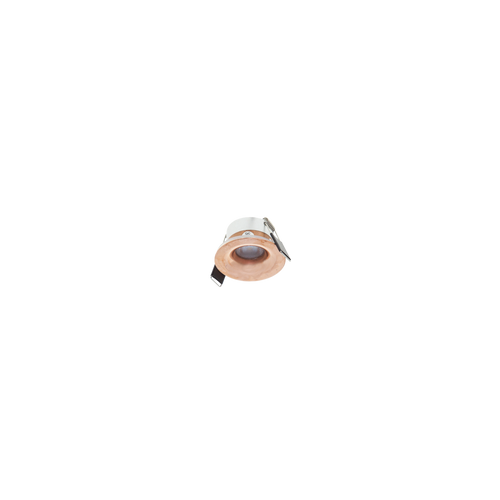

R744
Mini Fixed Curve Copper 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DM-4W-IP
IP65 350mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC350-DM-10W-IP
IP65 350mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC350-DX-6W
350mA 6W Dimmable Constant Current DX Series Driver
Watts
3.5W-6W
DCC350-DX-9W
350mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
DCC350-DX-12W
350mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
DCC350-DX-28W
350mA 28W Dimmable Constant Current DX Series Driver
Watts
14W-28W
Non Dimmable
DCC350-M-4W-IP
IP65 350mA 4W Constant Current Mini Non-dimmable Driver
Watts
1W-4W
DCC350-M-12W-IP
IP65 350mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
DCC350-6W
350mA 6W Constant Current Non-dimmable Driver
Watts
3W-6W
DCC350-12W
350mA 12W Constant Current Non-dimmable Driver
Watts
1W-12W
DCC350-20W
350mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
DCC350-40W
350mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
3.3W
Lumens
330lm
Beam Angle
35°
Input
350mA
Dimming / Control
Dimmable
CRI
80
Lifespan
50,000hrs (L70)
Ingress Protection
IP44
Cut Out
38mm
Diameter
50mm
Height
30mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
Downloads
