R744
- Checking stock...
Configure your R744 4 options
- White
- Stainless Steel
- Black (selected)
- Copper
R744 B3 Mini Fixed Curve Black 3000K
Lumens
Watts
330lm
3.3W
Not included
Please select from options
Select Cabinet & Display
Mini Fixed Curve White 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W

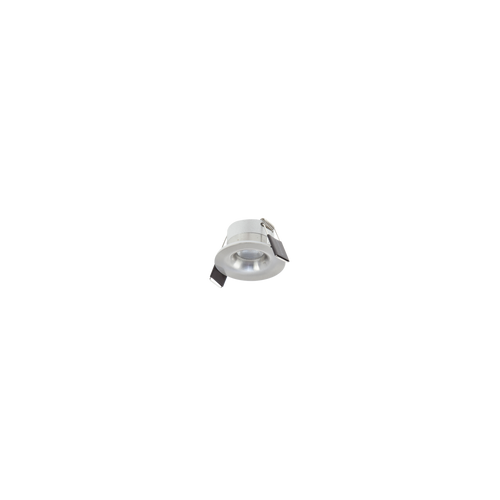

Mini Fixed Curve 316 Stainless Steel 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W

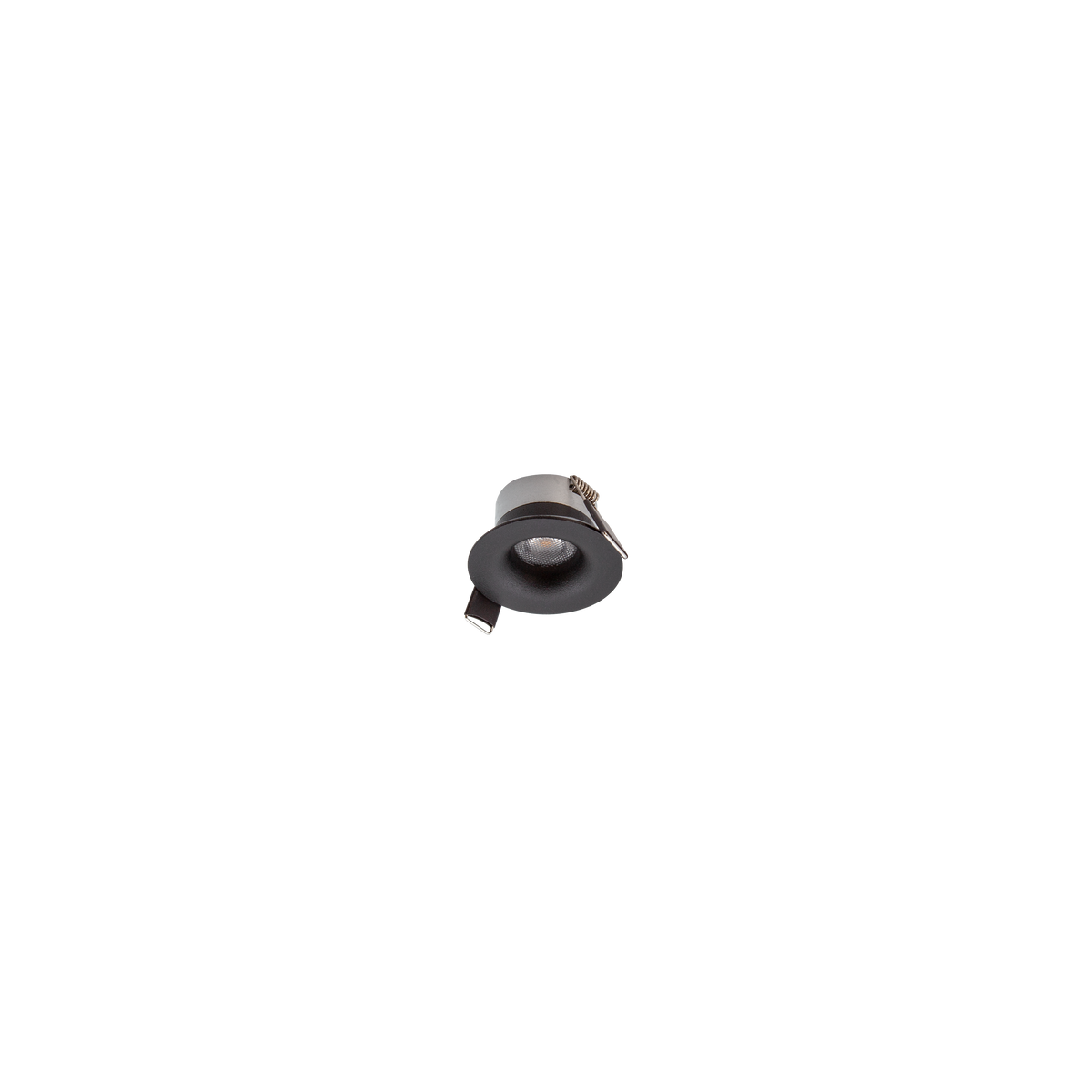

Mini Fixed Curve Black 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W

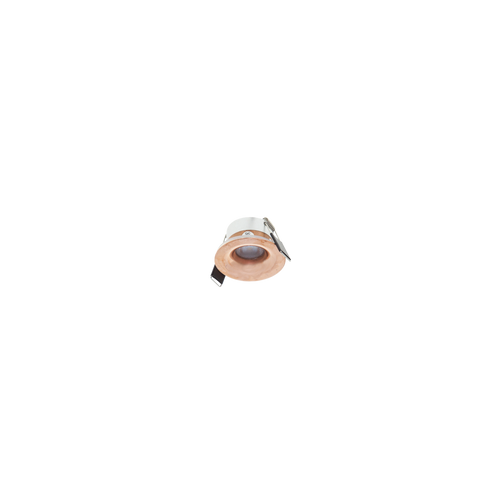

Mini Fixed Curve Copper 3000K
Temp.
3000K Warm White
Cut out
38mm
Lumens
330lm
Watts
3.3W
Select driver
driver sold separately. Please select below.
Dimmable

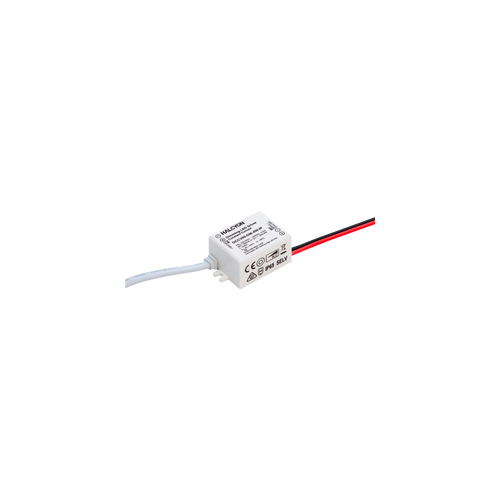

DCC350-DM-4W-IP
IP65 350mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
Non Dimmable
DCC350-M-4W-IP
IP65 350mA 4W Constant Current Mini Non-dimmable Driver
Watts
1W-4W

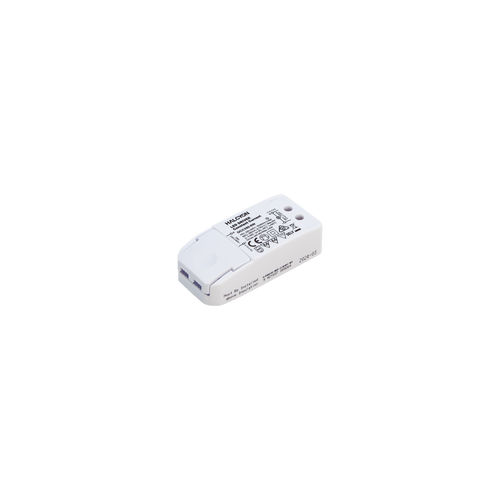

DCC350-6W
350mA 6W Constant Current Non-dimmable Driver
Watts
3W-6W
DCC350-12W
350mA 12W Constant Current Non-dimmable Driver
Watts
1W-12W
Specifications
R744 B3
Cut Out
38mm
Finish
Black
Colour Temp
3000K Warm White
Watts
3.3W
Lumens
330lm
Beam Angle
35°
Input
350mA
Dimming / Control
Dimmable
CRI
80
Lifespan
50,000hrs (L70)
Ingress Protection
IP44
Diameter
50mm
Height
30mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
None
Resources
