R731
- Checking stock...
Configure your R731 6 options
- White (selected)
- Black
R731 W4K Design Standard Small Downlight Kit - Wide Beam White 4000K
Lumens
Watts
930lm
9.5W
DCC230-DX-9W 230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Watts
4.6W-9W
Select Downlights
Design Standard Small Downlight Kit - Wide Beam White 2700K
Temp.
2700K Warm White
Cut out
72-82mm
Lumens
850lm
Watts
9.5W

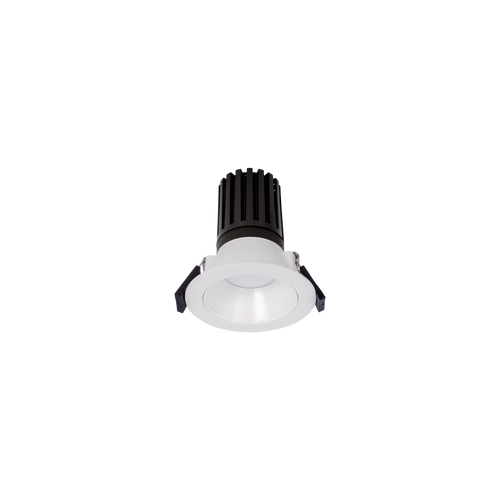

Design Standard Small Downlight Kit - Wide Beam White 3000K V2
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
970lm
Watts
9.5W

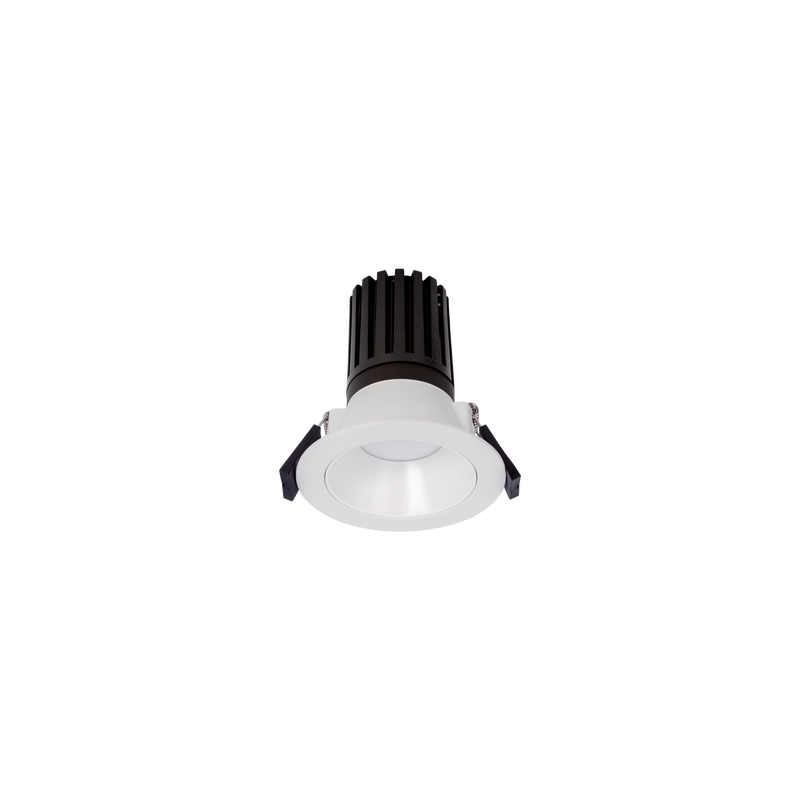

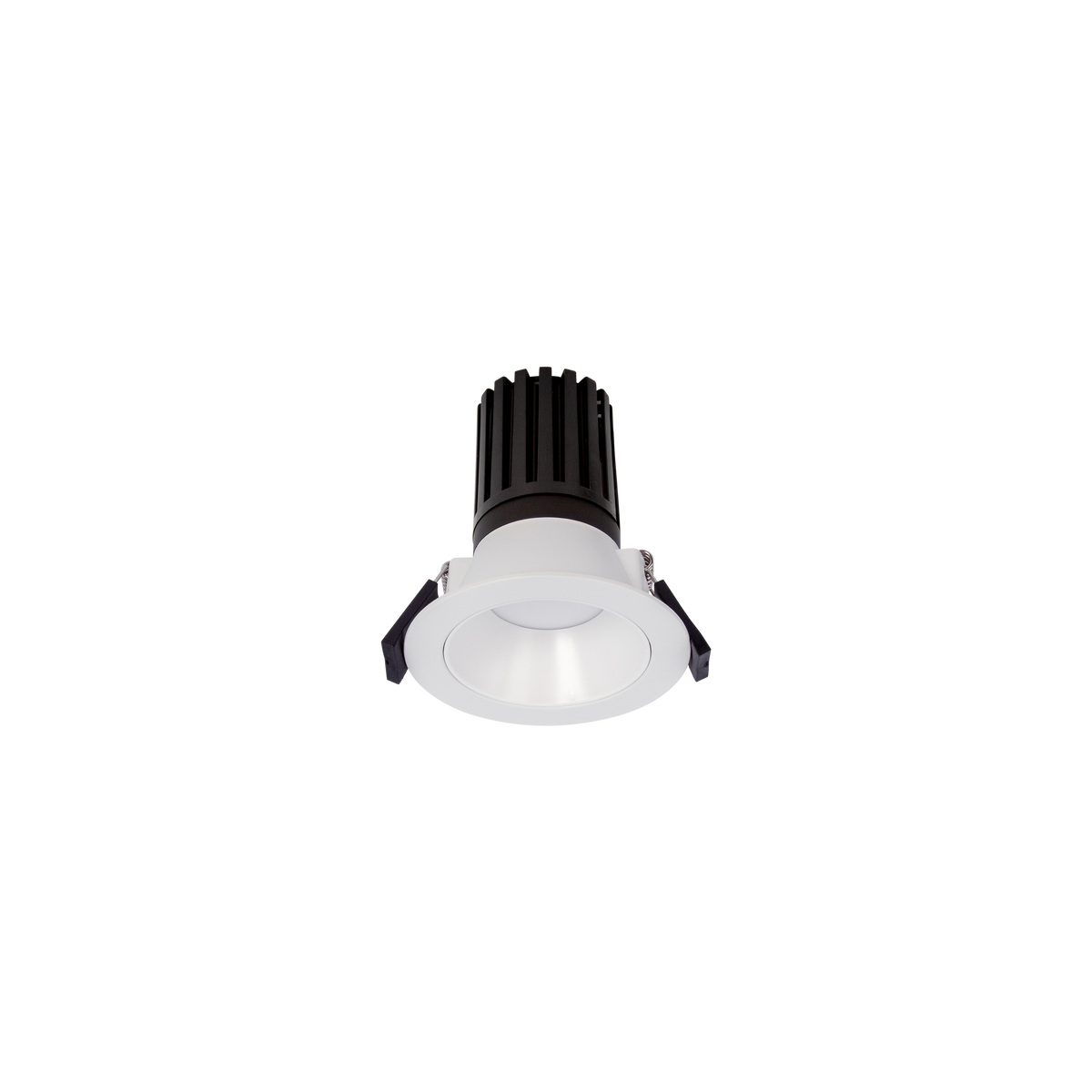

Design Standard Small Downlight Kit - Wide Beam White 4000K
Temp.
4000K Natural White
Cut out
72-82mm
Lumens
930lm
Watts
9.5W
Design Standard Small Downlight Kit - Wide Beam Black 2700K
Temp.
2700K Warm White
Cut out
72-82mm
Lumens
570lm
Watts
9.5W
Design Standard Small Downlight Kit - Wide Beam Black 3000K
Temp.
3000K Warm White
Cut out
72-82mm
Lumens
610lm
Watts
9.5W
Design Standard Small Downlight Kit - Wide Beam Black 4000K
Temp.
4000K Natural White
Cut out
72-82mm
Lumens
630lm
Watts
9.5W
Specifications
R731 W4K
Cut Out
72-82mm
Finish
White
Colour Temp
4000K Natural White
Watts
9.5W
Lumens
930lm
Beam Angle
90°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP54
Diameter
93mm
Height
104mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
230mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC230-DX-9W
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
Classification
Suitable for Installation Under Insulation
