R731 B4K
R731
- Checking stock...

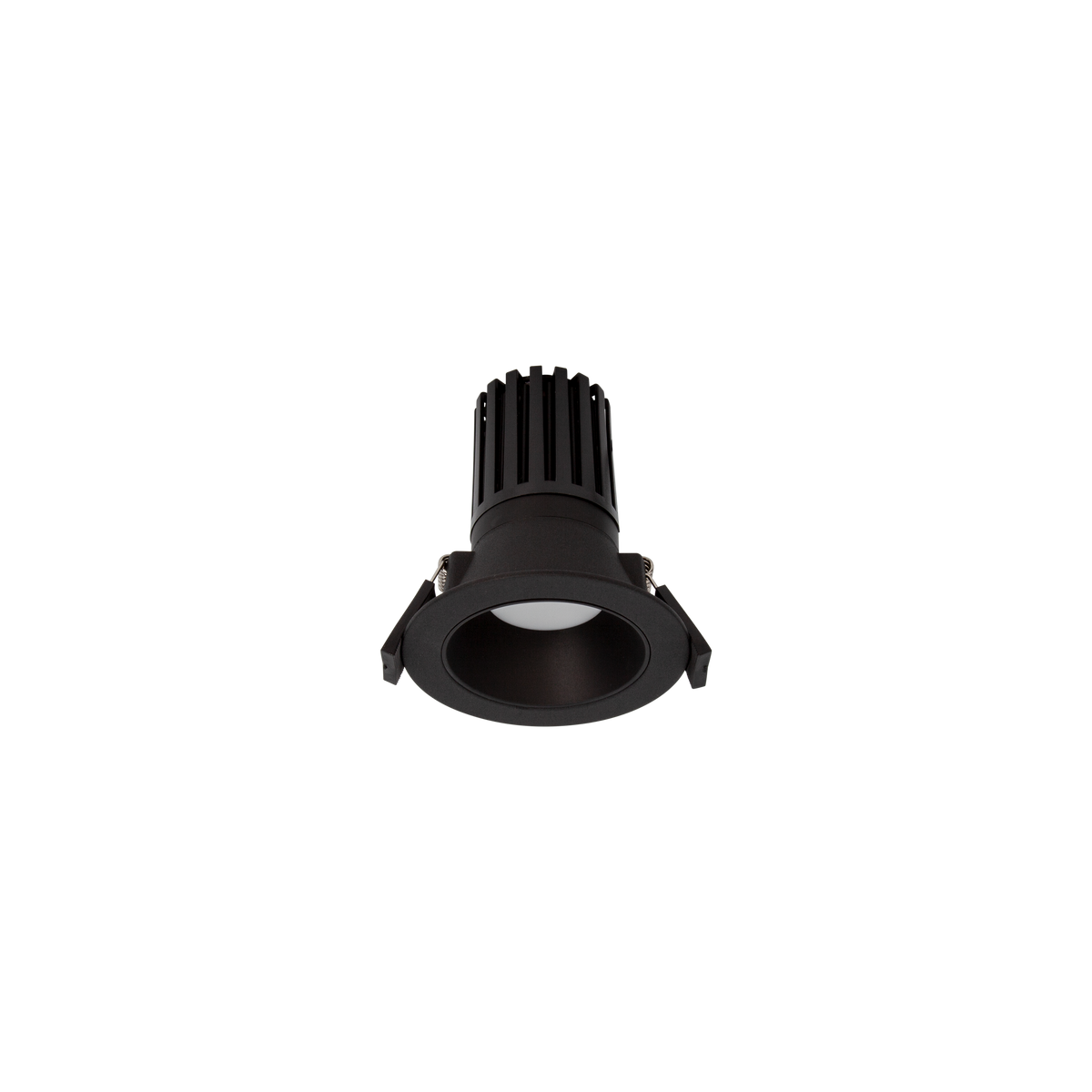

R731 B4K Design Standard Small Downlight Kit - Wide Beam Black 4000K
Lumens
Watts
630lm
9.5W
View Options
DCC230-DX-9W
Watts
4.6W-9W
Watts
4.6W-9W
Select Downlights
R731
Design Standard Small Downlight Kit - Wide Beam Black 4000K
Temp.
4000K
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
630lm
Watts
9.5W
R731
Design Standard Small Downlight Kit - Wide Beam White 2700K
Temp.
2700K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
850lm
Watts
9.5W
R731
Design Standard Small Downlight Kit - Wide Beam White 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
900lm
Watts
9.5W
R731
Design Standard Small Downlight Kit - Wide Beam White 4000K
Temp.
4000K Natural White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
930lm
Watts
9.5W
R731
Design Standard Small Downlight Kit - Wide Beam Black 2700K
Temp.
2700K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
570lm
Watts
9.5W
R731
Design Standard Small Downlight Kit - Wide Beam Black 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for Retrofit Applications)
Lumens
610lm
Watts
9.5W
Specifications
Finish
Black
Colour Temp
4000K
Watts
9.5W
Lumens
630lm
Beam Angle
90°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP54
Cut Out
72-82mm (Suitable for Retrofit Applications)
Diameter
93mm
Height
104mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
230mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
