R730 XSTS3K
R730
- Checking stock...

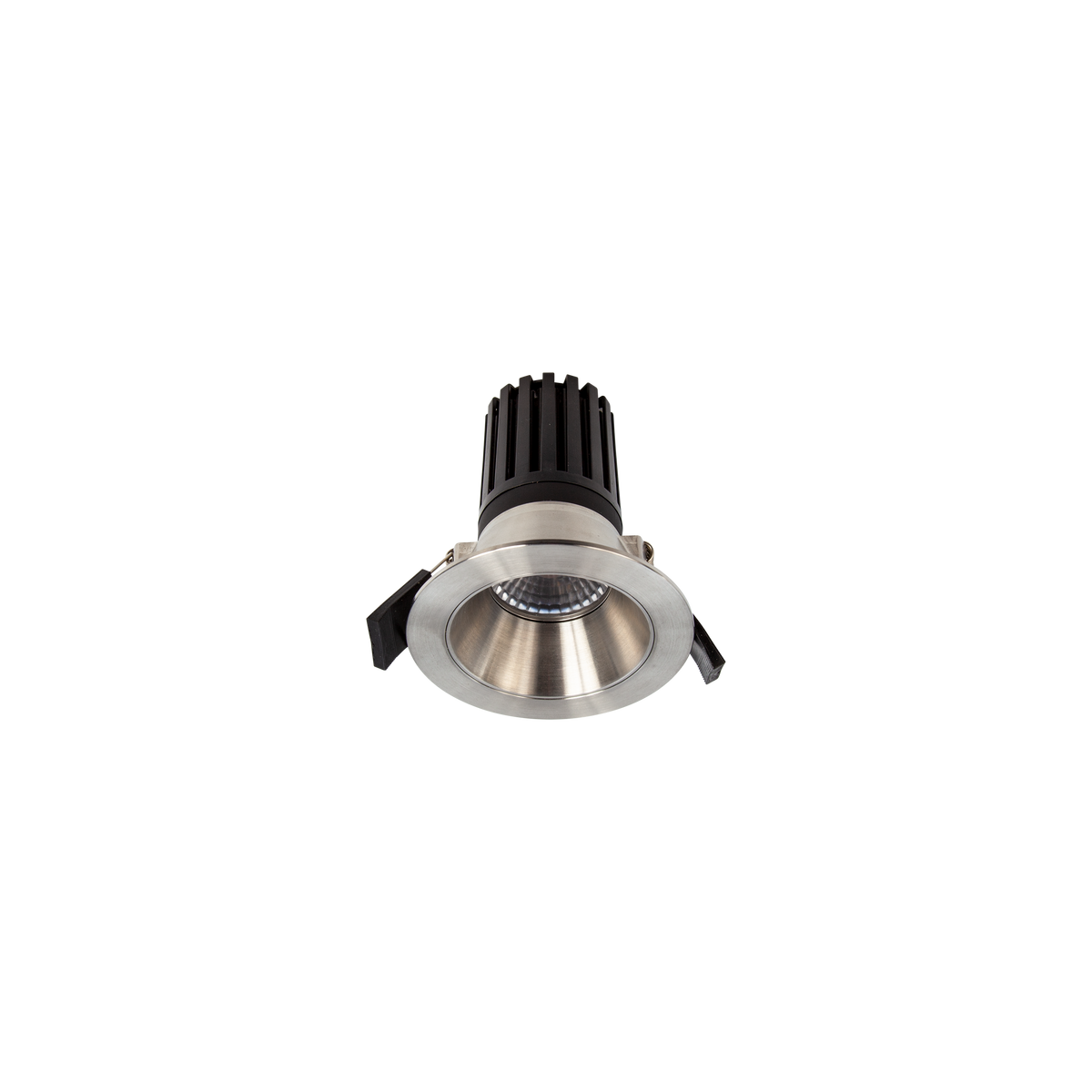

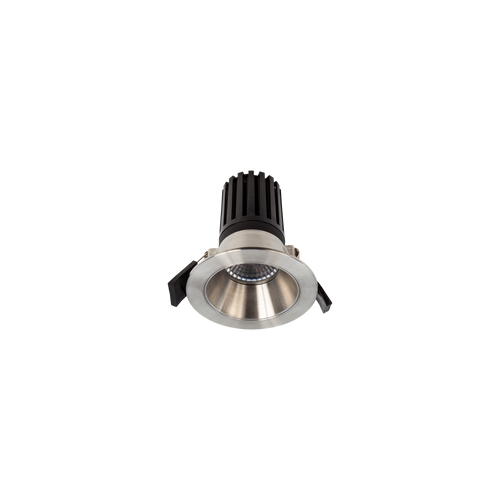

R730 XSTS3K Exterior Design Standard Downlight Kit Brushed 316 Stainless Steel 3K
Lumens
Watts
770lm
9.5W
View Options
DCC230-DX-9W
Watts
4.6W-9W
Watts
4.6W-9W
Select Downlights
R730
Exterior Design Standard Downlight Kit Brushed 316 Stainless Steel 3K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for retrofit applications)
Lumens
770lm
Watts
9.5W
R730
Exterior Design Standard Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for retrofit applications)
Lumens
770lm
Watts
9.5W
R730
Exterior Design Standard Downlight Kit Copper 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for retrofit applications)
Lumens
770lm
Watts
9.5W
R730
Exterior Design Standard Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
72-82mm (Suitable for retrofit applications)
Lumens
840lm
Watts
9.5W
Specifications
Finish
Stainless Steel
Colour Temp
3000K Warm White
Watts
9.5W
Lumens
770lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B30)
Ingress Protection
IP65 (front face only)
Cut Out
72-82mm (Suitable for retrofit applications)
Diameter
93mm
Height
104mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
316 Stainless Steel
Electrical Class
Class II
Driver Output Current
230mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
230mA 9W Dimmable Constant Current DX Series Driver
Watts
4.6W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Finish
Black
Height
28mm
Width
45mm
Length
120mm
