R661
- Checking stock...
Configure your R661 2 options
- Black
- White (selected)
R661 W34 Low Glare Standard Premium Economy Downlight Kit White 3000K / 4000K
Lumens
Watts
860lm
7.5W
DCC180-DX-9W 180mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
Watts
4.5W-9W
Select Downlights

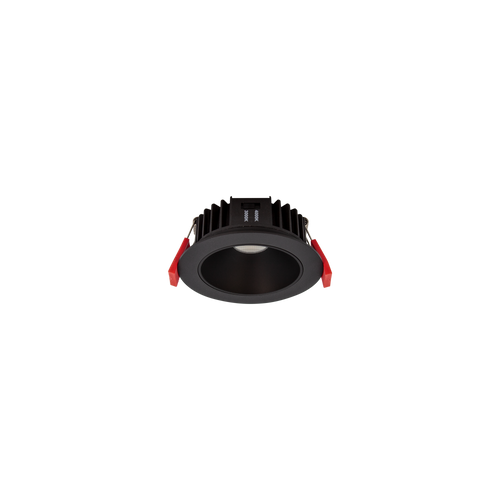

Low Glare Standard Premium Economy Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
680lm
Watts
8W

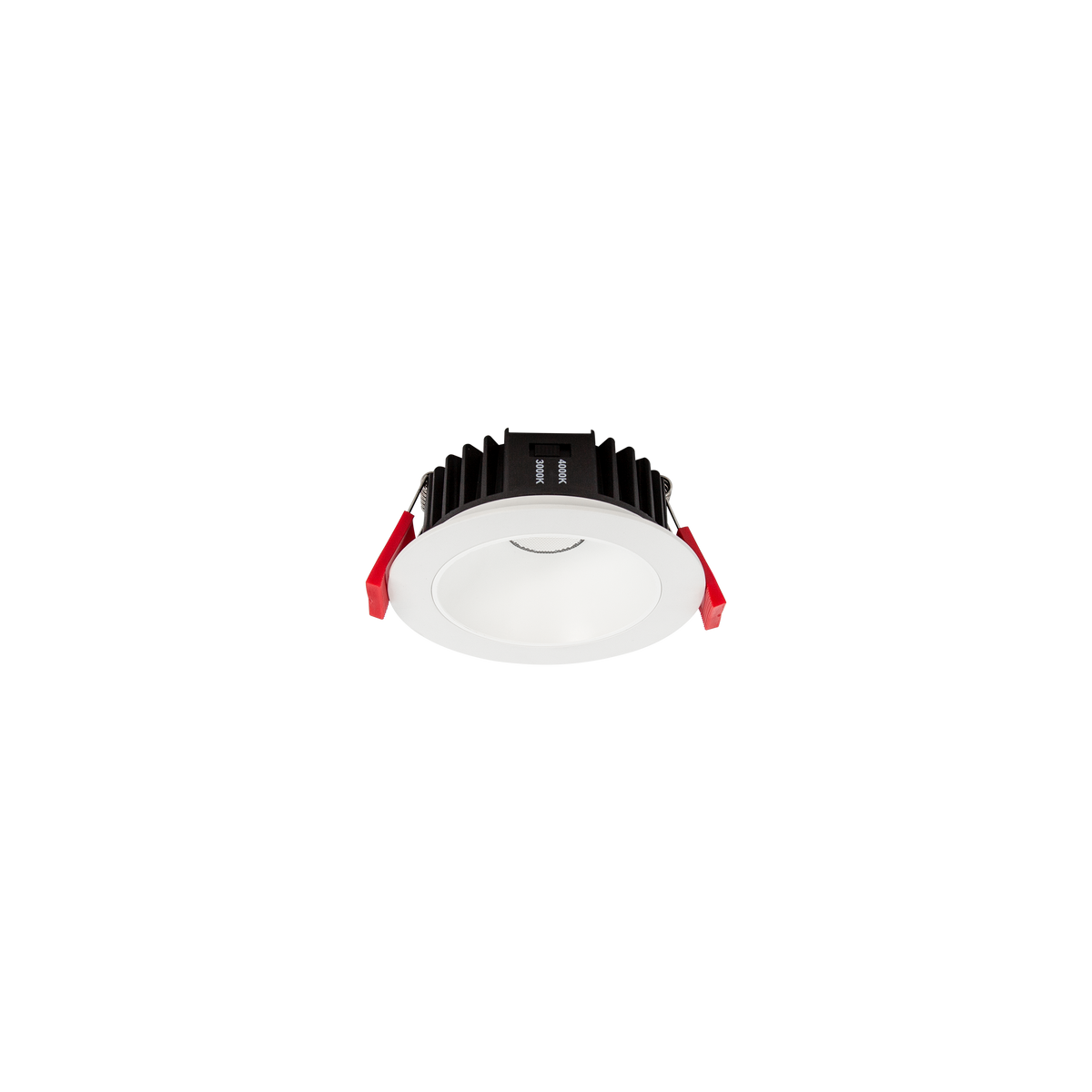

Low Glare Standard Premium Economy Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
860lm
Watts
7.5W
Specifications
R661 W34
Cut Out
92mm
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
7.5W
Lumens
860lm
Beam Angle
90°
Input
220-240V AC
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
100,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
103mm
Height
43mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
180mA
Driver
Included, Remote
Ambient Operating Temperature
-20°...+30°C
Power Factor
0.90
Warranty
5 Year Warranty
Specifications
DCC180-DX-9W
Watts
4.5W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
