R661 B34
R661
- Checking stock...

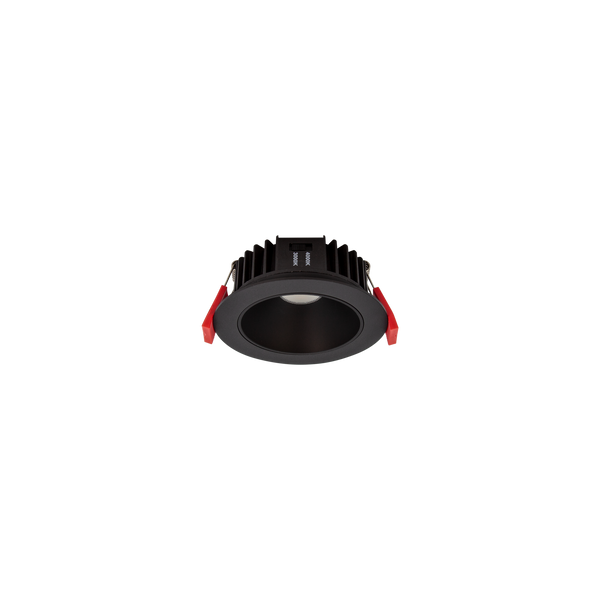

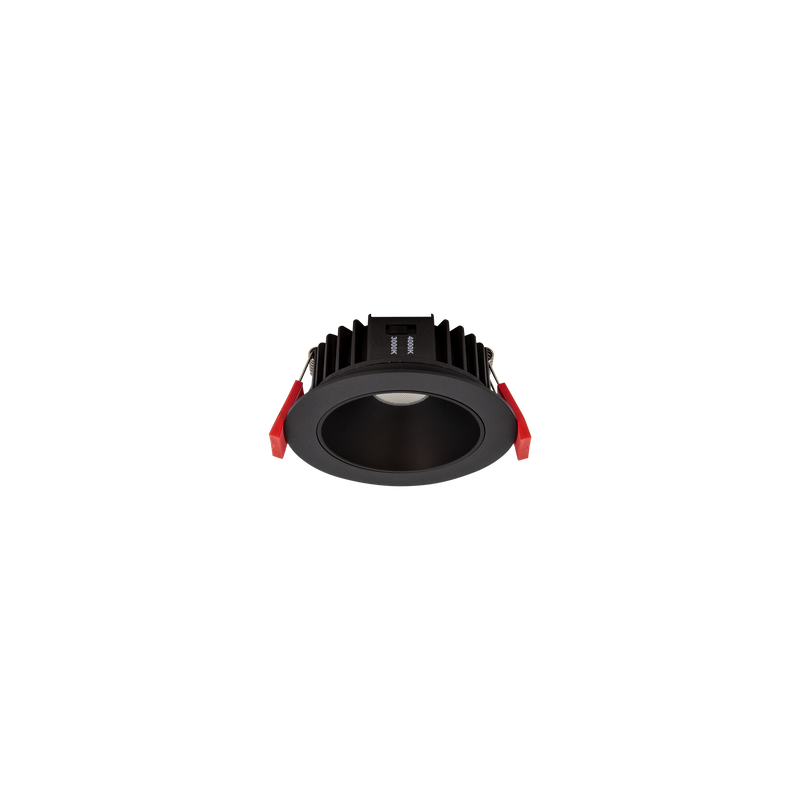

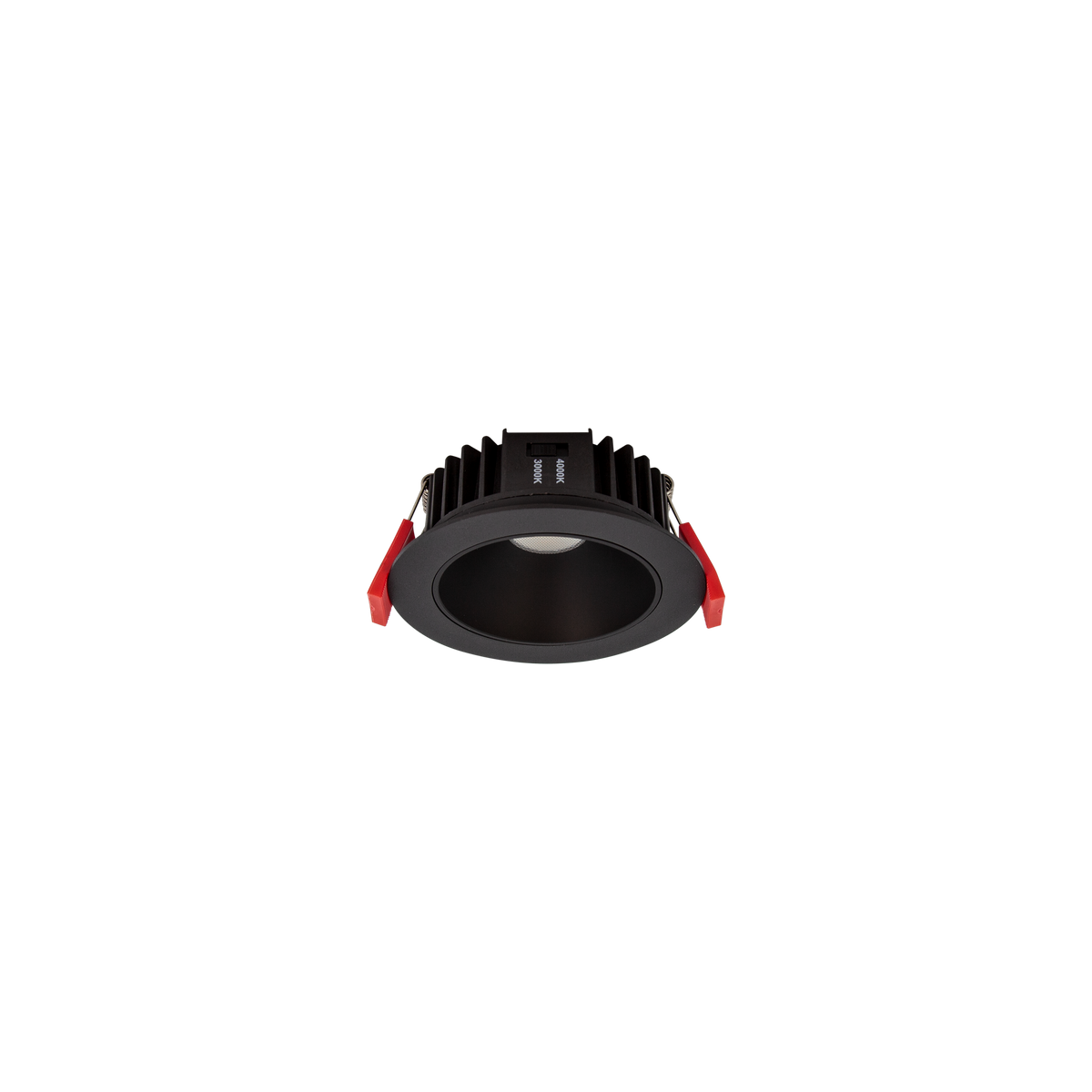

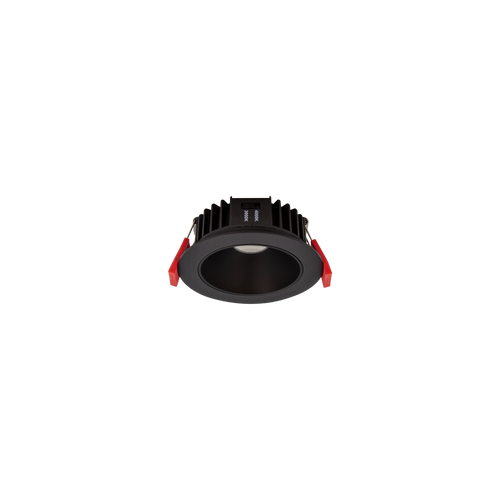

R661 B34 LEDE Pro Small Downlight Kit Black 3000K / 4000K
Lumens
Watts
680lm
8W
View Options
DCC180-DX-9W
Watts
4.5W-9W
Watts
4.5W-9W
Select Downlights
R661
LEDE Pro Small Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
680lm
Watts
8W
R661

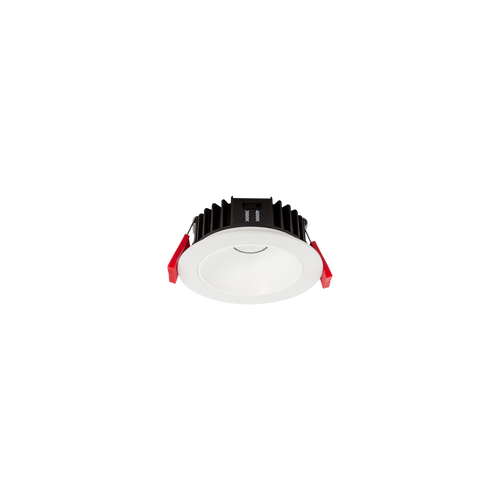

LEDE Pro Small Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
850lm
Watts
8W
Specifications
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
8W
Lumens
680lm
Beam Angle
90°
Input
220-240V AC
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP44
Cut Out
92mm
Diameter
103mm
Height
43mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
180mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
180mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Downloads
