R603 W3K Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 3K
Lumens
Watts
780lm, 1050lm, 1280lm or 1700lm (Selectable)
8.5W, 11W, 14.5W or 19W
View Options
DCC260600-DX-1020W
Watts
10.4W-19.8W
Watts
10.4W-19.8W
Select Downlights
R603

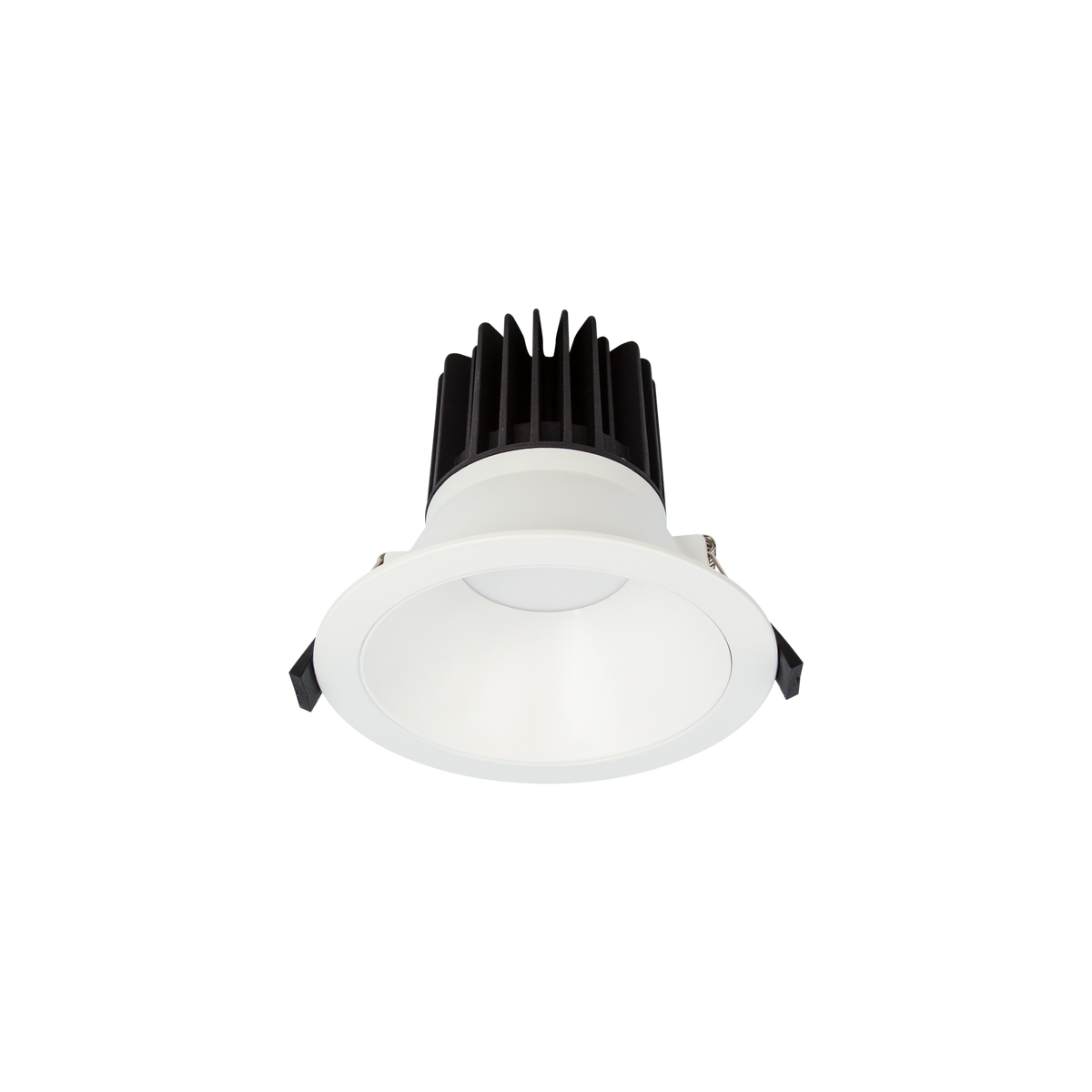

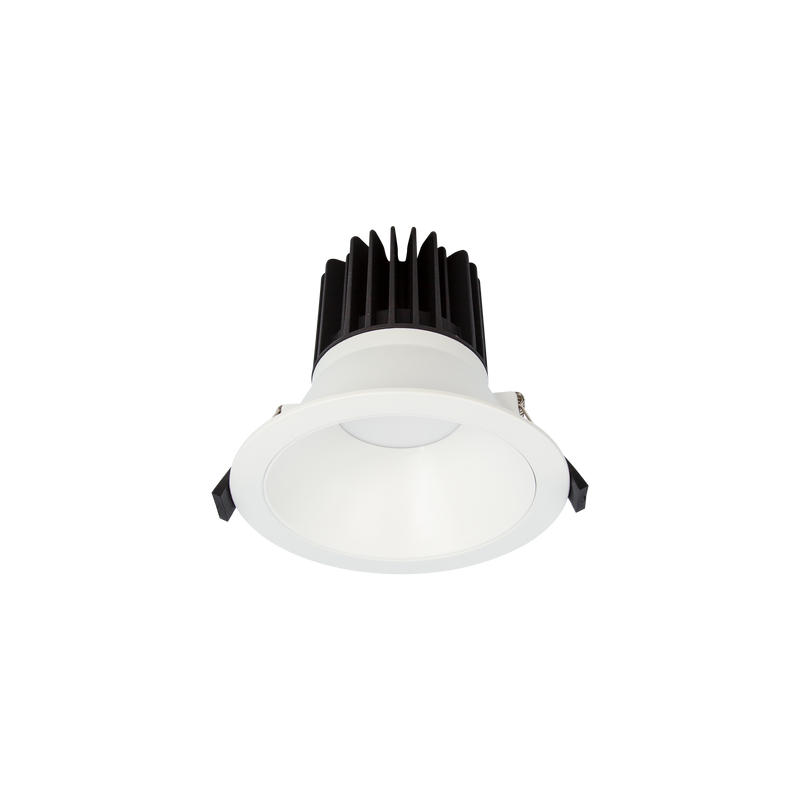

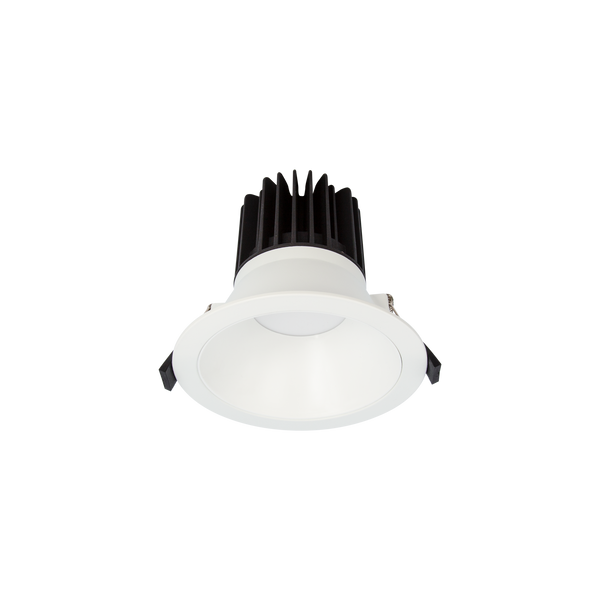

Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 3K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
780lm, 1050lm, 1280lm or 1700lm (Selectable)
Watts
8.5W, 11W, 14.5W or 19W
R603

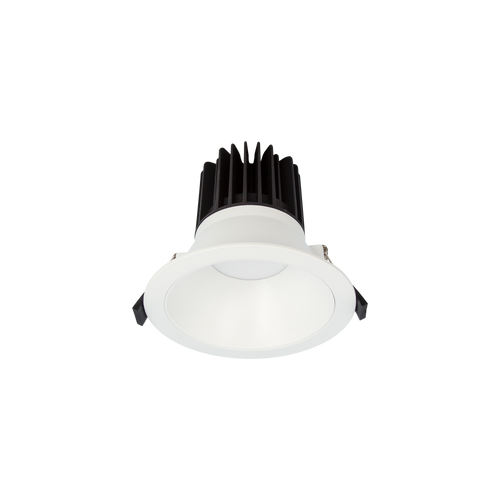

Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 4K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
790lm, 1070lm, 1300lm or 1730lm (Selectable)
Watts
8.5W, 11W, 14.5W or 19W
R603

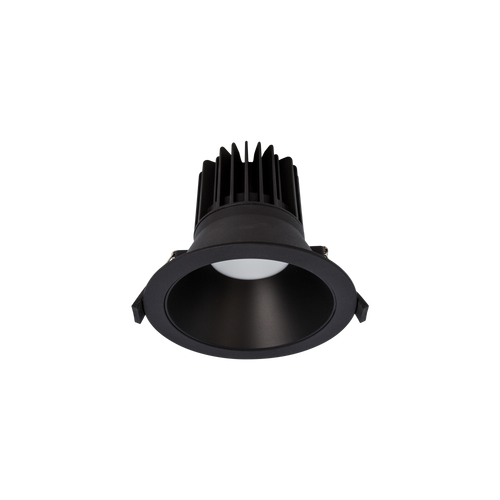

Design Standard Large Downlight Kit - Quad Wattage Wide Beam Black 3K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
530lm, 715lm, 910lm or 1150lm (Selectable)
Watts
8.5W, 11W, 14.5W or 19W
R603
Design Standard Large Downlight Kit - Quad Wattage Wide Beam Black 4K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
540lm, 725lm, 930lm or 1175lm (Selectable)
Watts
8.5W, 11W, 14.5W or 19W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
8.5W, 11W, 14.5W or 19W
Lumens
780lm, 1050lm, 1280lm or 1700lm (Selectable)
Beam Angle
90°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80)
Ingress Protection
IP54
RAL Colour
RAL9016
Cut Out
130-140mm (Suitable for Retrofit Applications)
Diameter
150mm
Height
130mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260-600mA 19.8W Dimmable CC DX Series Driver
Watts
10.4W-19.8W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
