R603 B3K
R603
- Checking stock...

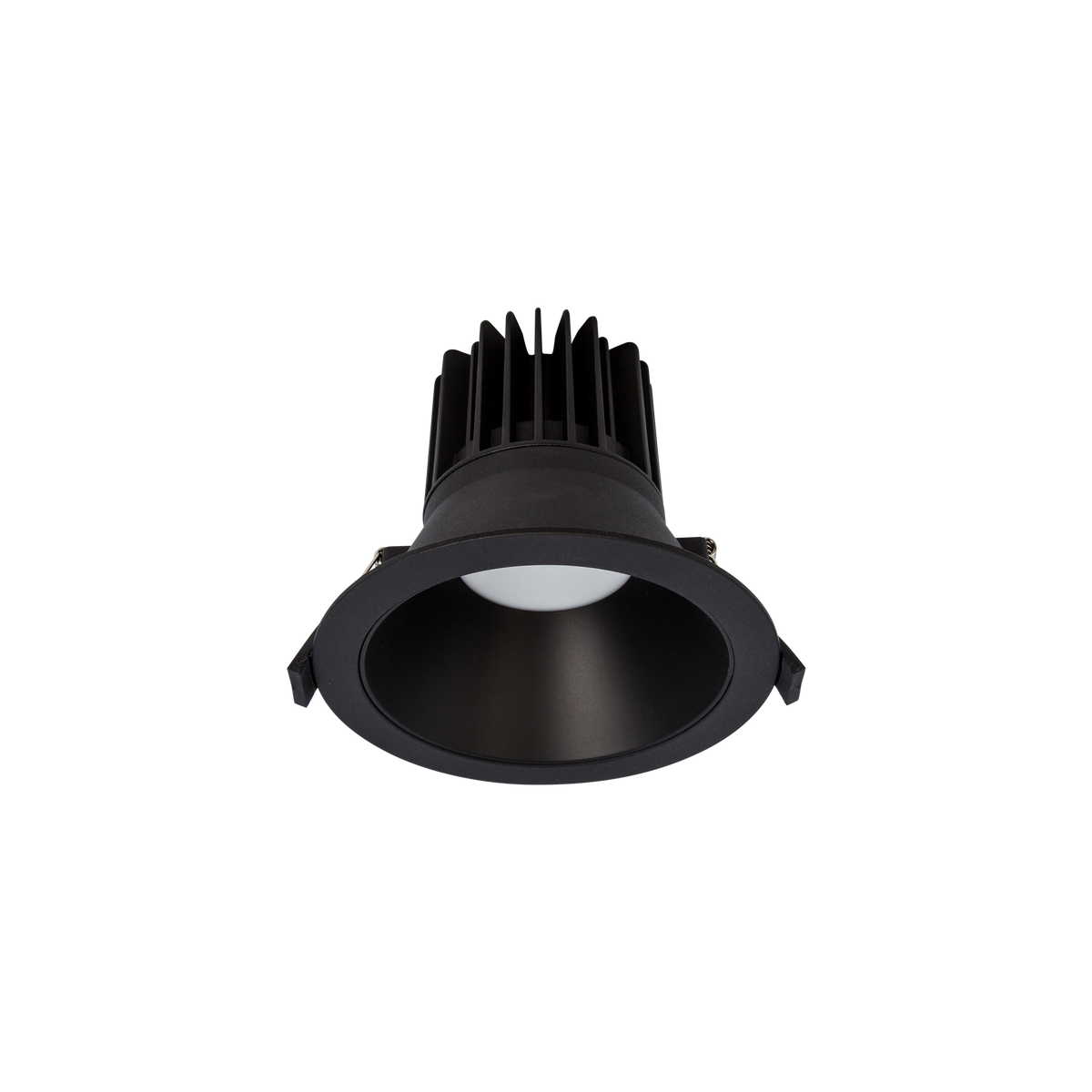

R603 B3K Design Standard Large Downlight Kit - Quad Wattage Wide Beam Black 3K
Lumens
Watts
530lm / 715lm / 910lm / 1150lm
8.5W / 11W / 14.5W / 19W
View Options
DCC260600-DX-1020W
Watts
10.4W-19.8W
Watts
10.4W-19.8W
Select Downlights
R603
Design Standard Large Downlight Kit - Quad Wattage Wide Beam Black 3K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
530lm / 715lm / 910lm / 1150lm
Watts
8.5W / 11W / 14.5W / 19W
R603

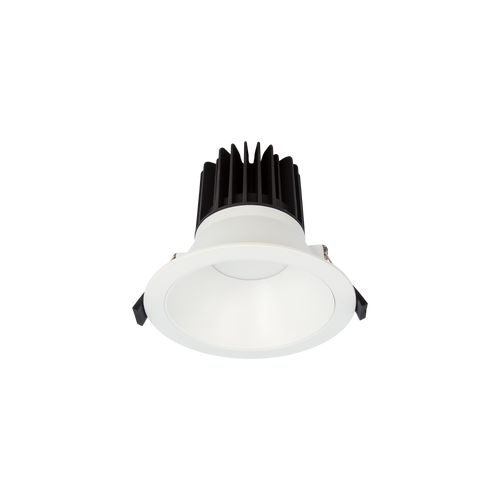

Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 3K
Temp.
3000K Warm White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
780lm / 1050lm / 1280lm / 1700lm
Watts
8.5W / 11W / 14.5W / 19W
R603
Design Standard Large Downlight Kit - Quad Wattage Wide Beam White 4K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
790lm / 1070lm / 1300lm / 1730lm
Watts
8.5W / 11W / 14.5W / 19W
R603
Design Standard Large Downlight Kit - Quad Wattage Wide Beam Black 4K
Temp.
4000K Natural White
Cut out
130-140mm (Suitable for Retrofit Applications)
Lumens
540lm / 725lm / 930lm / 1175lm
Watts
8.5W / 11W / 14.5W / 19W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
8.5W / 11W / 14.5W / 19W
Lumens
530lm / 715lm / 910lm / 1150lm
Beam Angle
90°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
60,000hrs (L80)
Ingress Protection
IP54
Cut Out
130-140mm (Suitable for Retrofit Applications)
Diameter
150mm
Height
130mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F / IC-4
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver

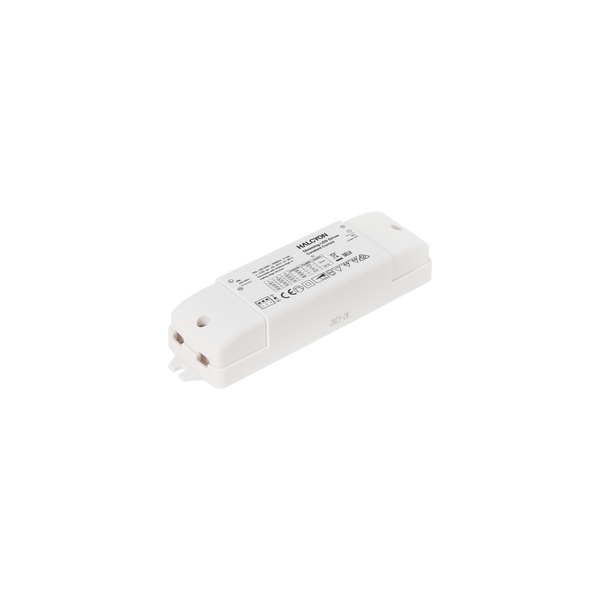

260-600mA 19.8W Dimmable CC DX Series Driver
Watts
10.4W-19.8W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Height
28mm
Width
44mm
Length
156mm
