Cevon Downlight Square Dark Light Medium c/w Dimmable Driver 14W 350mA CC 3K CRI97 White
Downlights

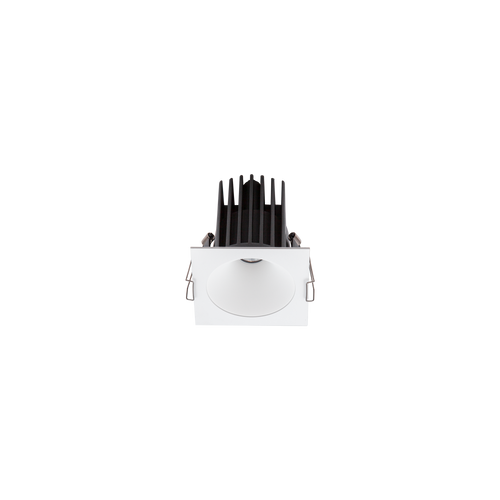

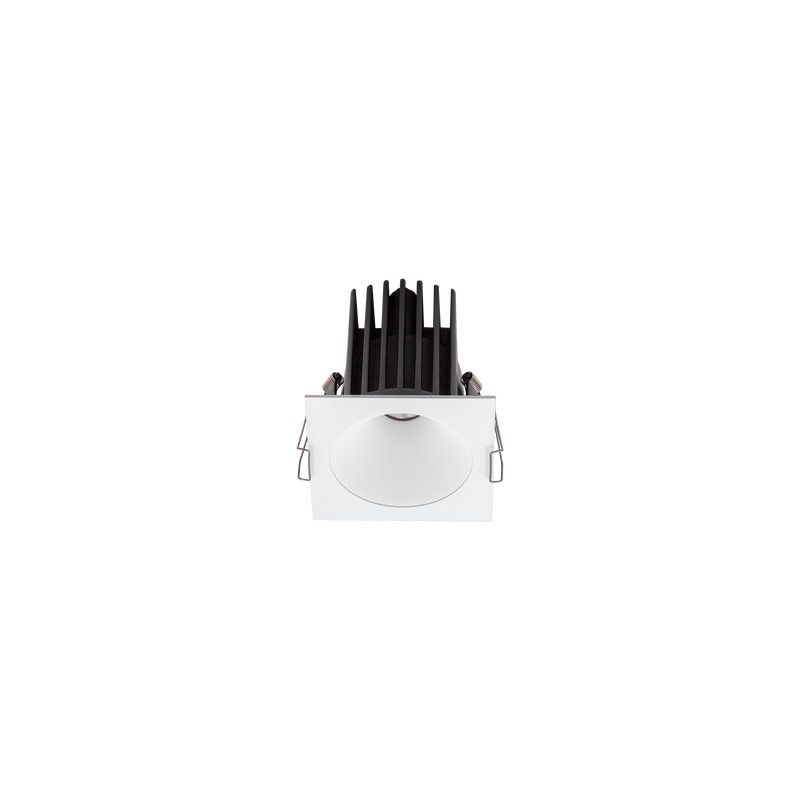

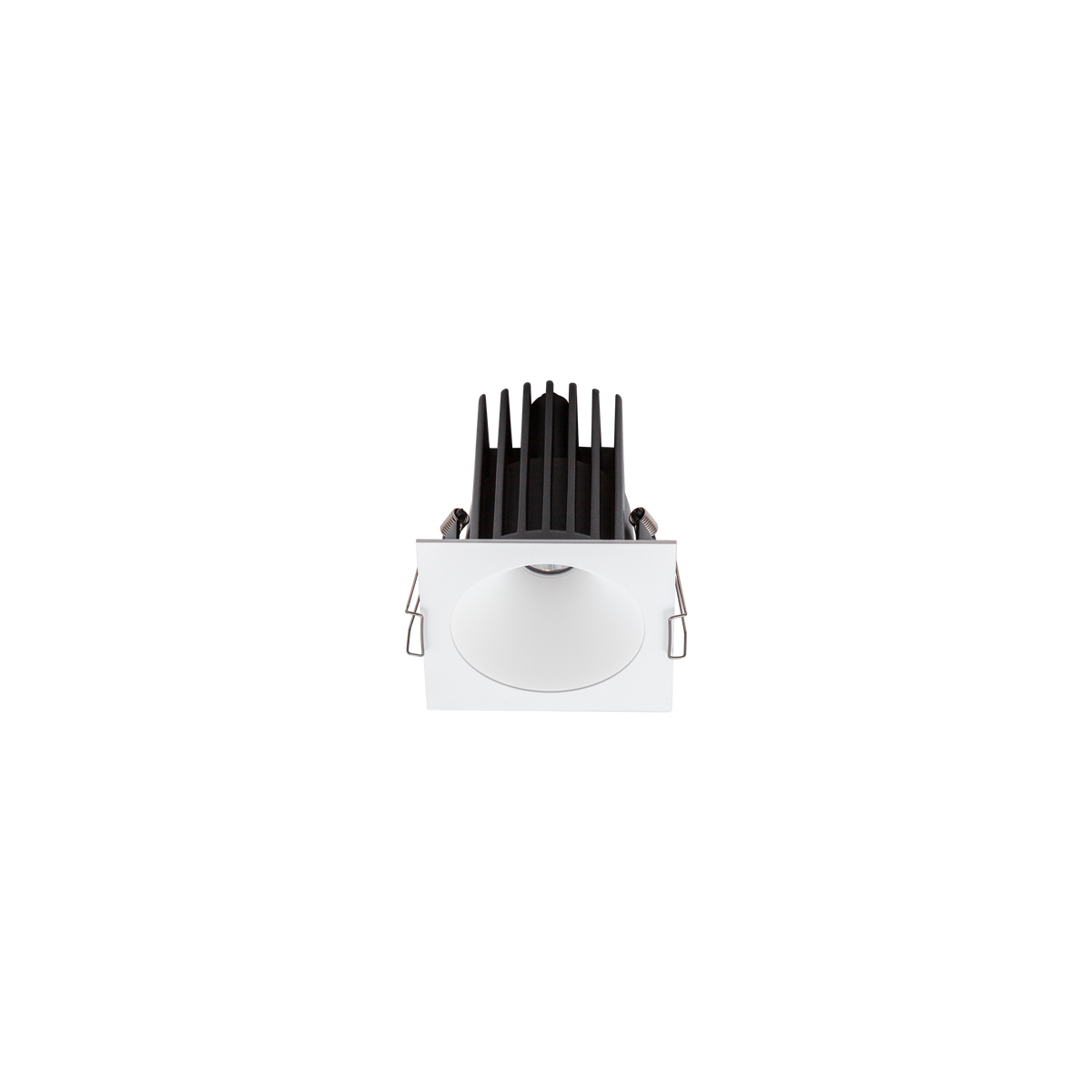

Cevon Dark Art Square Medium Downlight Kit White 3000K

R542 WW3K Cevon Dark Art Square Medium Downlight Kit White 3000K

Lumens

Watts

1090lm

14W

View Options

Driver
350mA 20W  Dimmable Constant Current DX Series Driver

DCC350-DX-20W

Watts

10W-20W

Watts

10W-20W

Add to

Select Downlights

Select driver

driver sold separately. Please select below.

Specifications

Cevon Dark Art Square Medium Downlight Kit White 3000K

Downlights

R542 WW3K

Finish

White

Colour Temp

3000K Warm White

Watts

14W

Lumens

1090lm

Beam Angle

45°

Dimming / Control

Dimmable

CRI

97

Lifespan

55,000hrs (L90)

Ingress Protection

IP44

RAL Colour

RAL9003

Cut Out

76mm

Height

94mm

Width

85mm

Length

85mm

Classification

IC

Height Clearance to Building Elements

0mm

Side Clearance to Building Elements

0mm

Material

Aluminium

Electrical Class

Class II

Driver Output Current

350mA

Driver Included / Incorporated

Driver Included

Warranty

5 Year Warranty

350mA 20W  Dimmable Constant Current DX Series Driver

Driver

350mA 20W Dimmable Constant Current DX Series Driver

Watts

10W-20W

Input

220-240V 50/60Hz

Dimming / Control

Dimmable

Ingress Protection

IP20

Height

28mm

Width

45mm

Length

120mm

Downloads

Download All
Loading...
Download All
Cevon Dark Art Square Medium Downlight Kit White 3000K
