R542
- Custom Build - Request Availability
Configure your R542 5 options
- White
- White, Gold
- White, High Gloss Black
- White, Black
- White, Silver (selected)

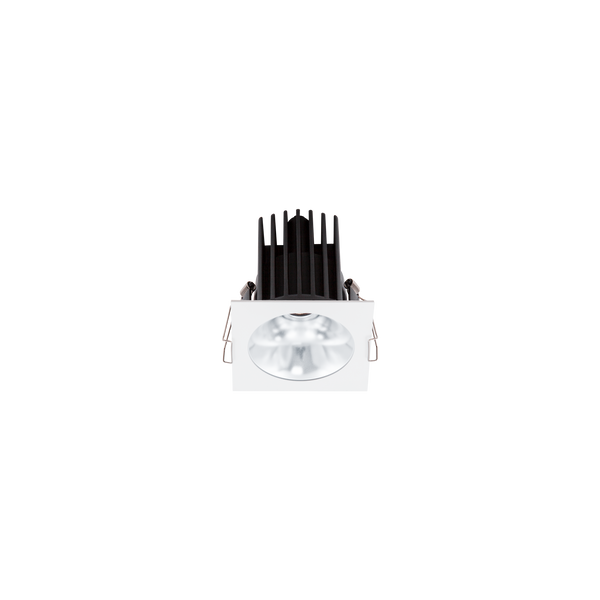

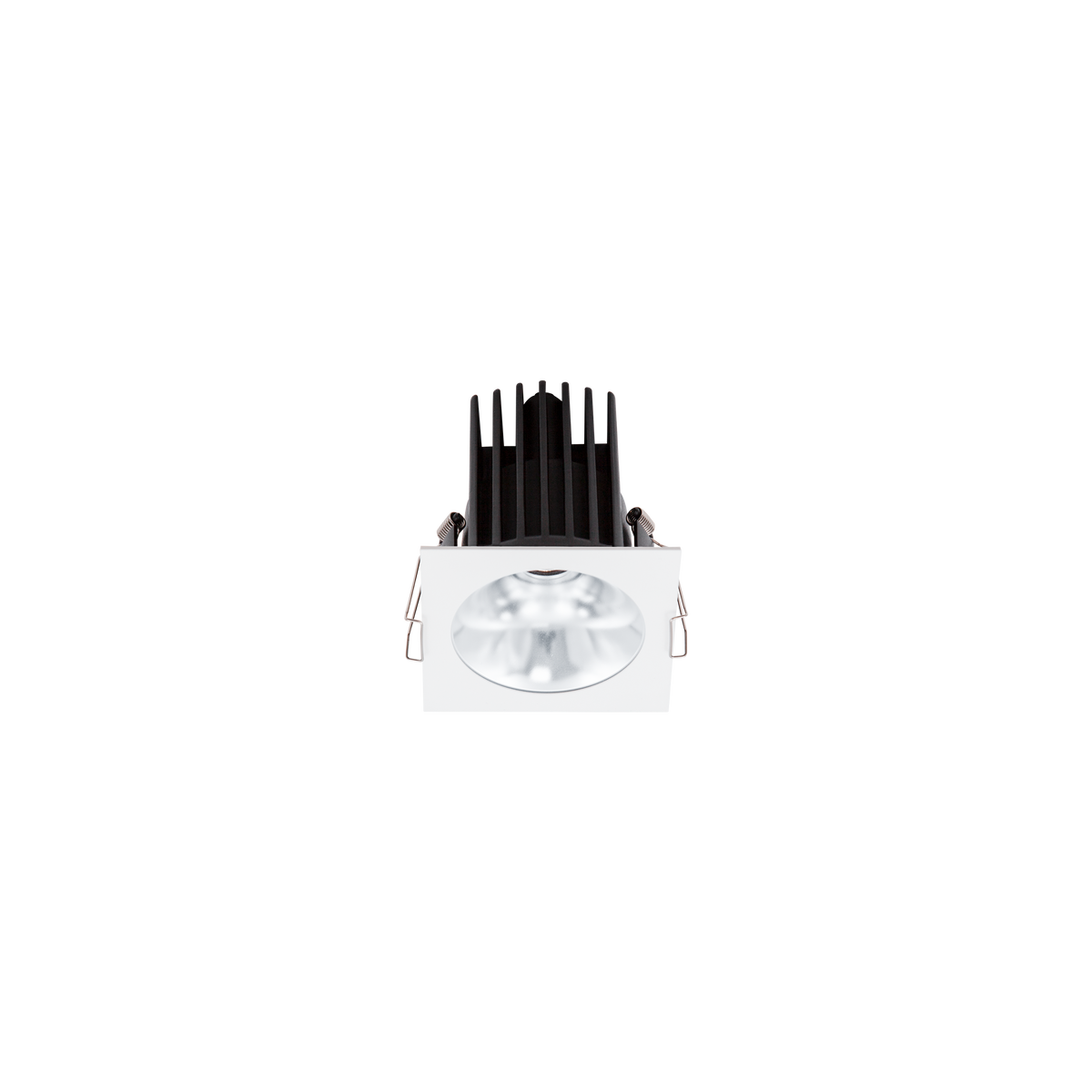

R542 WS3K Cevon Dark Art Square Medium Downlight Kit White, Silver 3000K
Lumens
Watts
1000lm
14W
DCC350-DX-20W 350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Watts
10W-20W
Select Downlights
Cevon Dark Art Square Medium Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1090lm
Watts
14W
Cevon Dark Art Square Medium Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
810lm
Watts
14W
Cevon Dark Art Square Medium Downlight Kit White, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
76mm
Lumens
890lm
Watts
14W
Cevon Dark Art Square Medium Downlight Kit White, Matt Black 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
865lm
Watts
14W
Cevon Dark Art Square Medium Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Cut out
76mm
Lumens
1000lm
Watts
14W
Specifications
R542 WS3K
Cut Out
76mm
Finish
White, Silver
Colour Temp
3000K Warm White
Watts
14W
Lumens
1000lm
Beam Angle
45°
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
55,000hrs (L90)
Ingress Protection
IP44
Height
94mm
Width
85mm
Length
85mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
350mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC350-DX-20W
Watts
10W-20W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
