R522
- Checking stock...
Configure your R522 4 options
- White (selected)
- Black

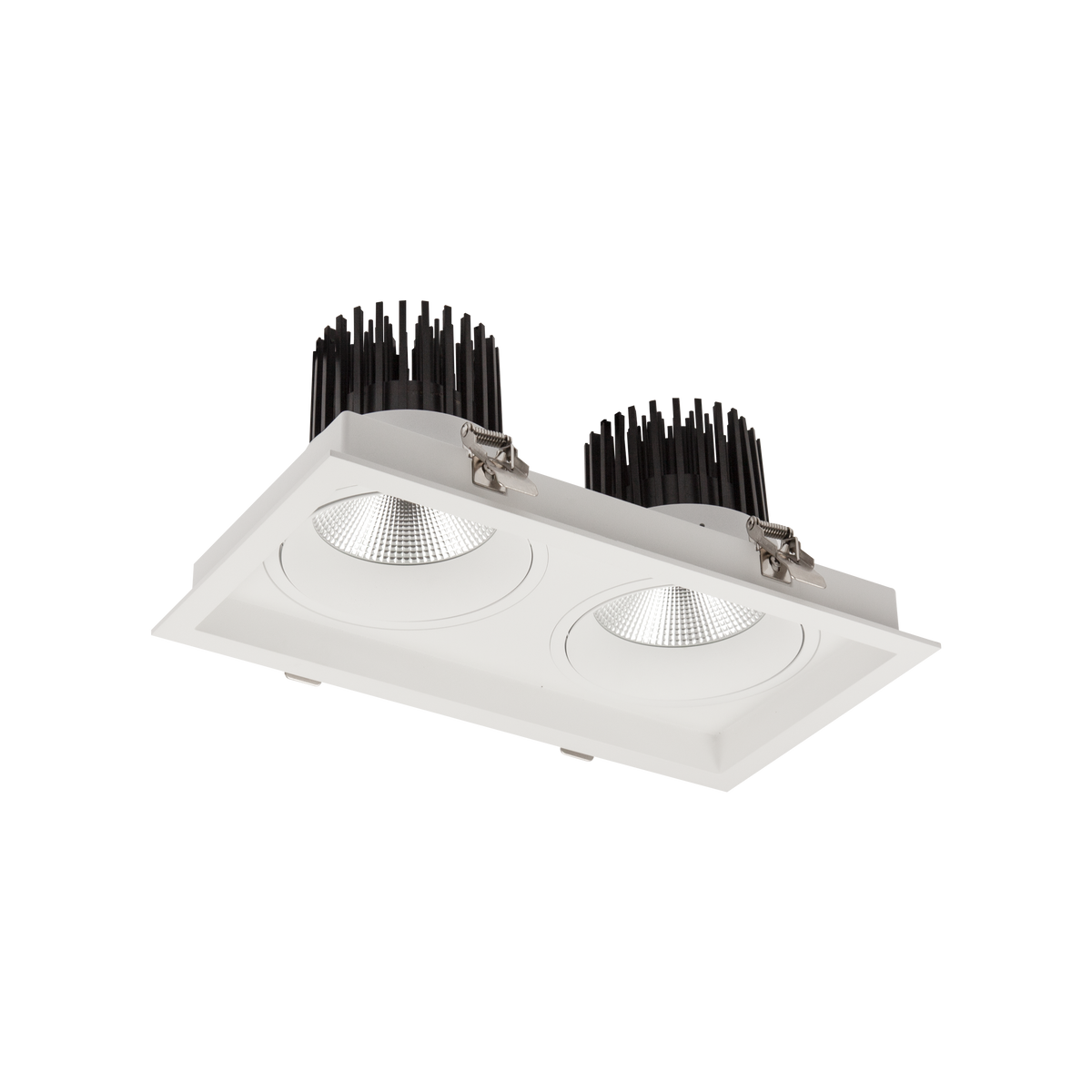

R522 W4K Cevon Box XL Tilt/Rotate Double Downlight Kit White 4000K
Lumens
Watts
Tilt Angle
5765lm
2x 28W
30°
DCC700-D-40W 700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Watts
19.6W-40W
Select Downlights
Cevon Box XL Tilt/Rotate Double Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
Cevon Box XL Tilt/Rotate Double Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
Cevon Box XL Tilt/Rotate Double Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
Cevon Box XL Tilt/Rotate Double Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
Specifications
R522 W4K
Cut Out
L305 x W155mm
Finish
White
Colour Temp
4000K Natural White
Watts
2x 28W
Lumens
5765lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
93
Tilt Angle
30°
Rotate Angle
358°
Lifespan
55,000hrs (L90)
Ingress Protection
IP43
RAL Colour
RAL9003
Height
135mm
Width
175mm
Length
325mm
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
700mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC700-D-40W
Watts
19.6W-40W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Installation Note
Must be installed above insulation
Resources
