R522 W3K Cevon Box XL Tilt/Rotate Double Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
5765lm
2x 28W
30°
View Options
DCC700-D-40W
Watts
19.6W-40W
Watts
19.6W-40W
Select Downlights
R522

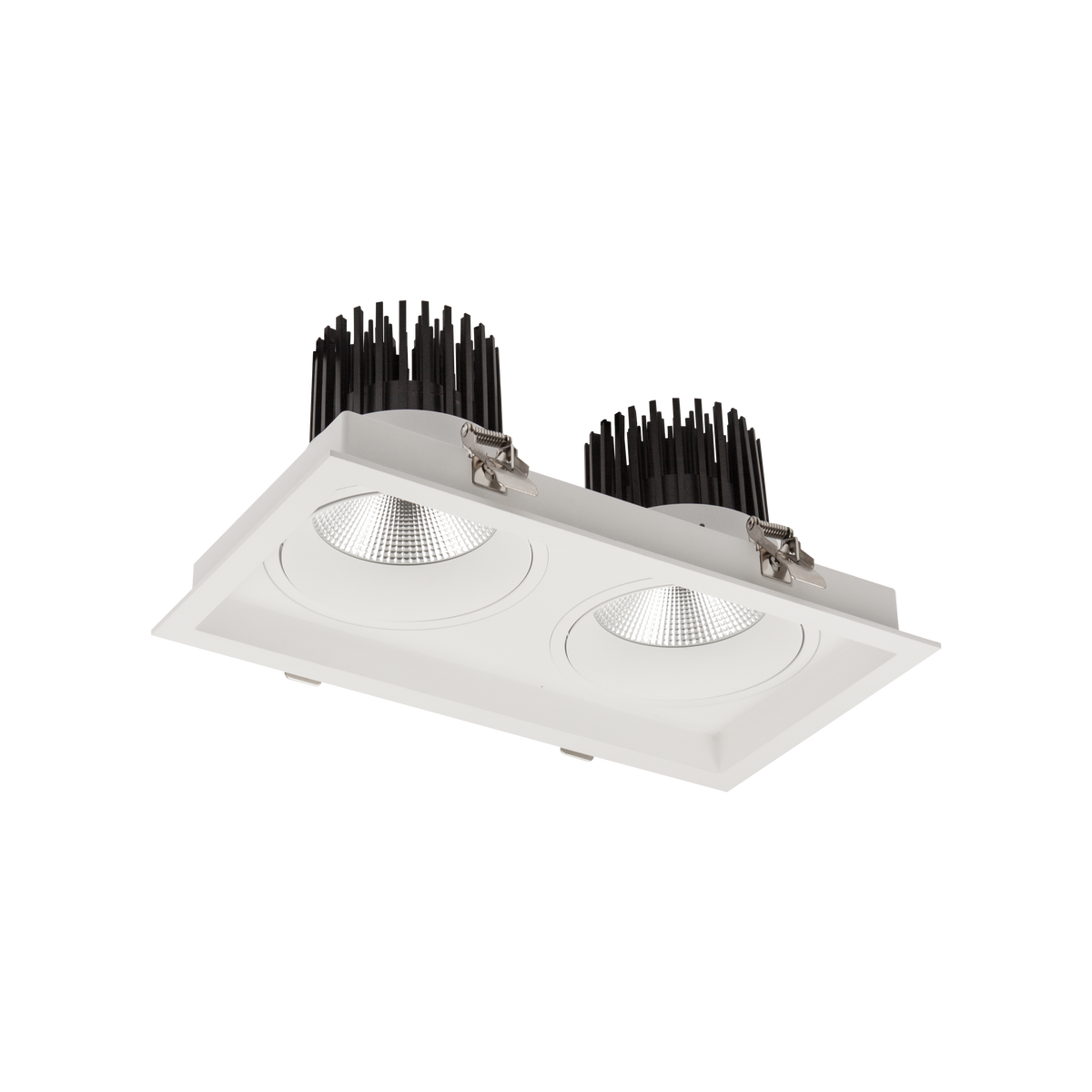

Cevon Box XL Tilt/Rotate Double Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
R522
Cevon Box XL Tilt/Rotate Double Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
R522

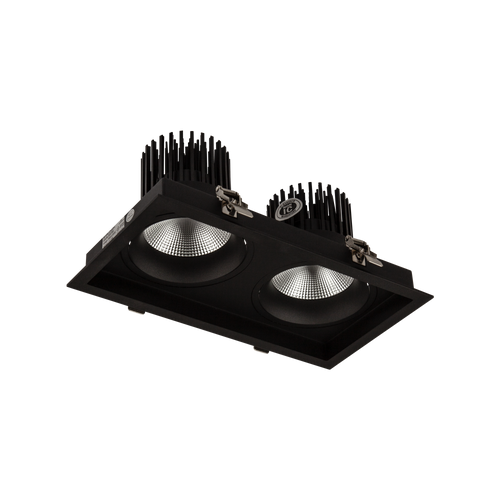

Cevon Box XL Tilt/Rotate Double Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
R522
Cevon Box XL Tilt/Rotate Double Downlight Kit Black 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
L305 x W155mm
Lumens
5765lm
Rotate Angle
358°
Watts
2x 28W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
2x 28W
Lumens
5765lm
Beam Angle
50°
Dimming / Control
Phase-Cut Dimmable
CRI
93
Lifespan
55,000hrs (L90)
Tilt Angle
30°
Rotate Angle
358°
Ingress Protection
IP43
RAL Colour
RAL9003
Cut Out
L305 x W155mm
Height
135mm
Width
175mm
Length
325mm
Classification
Non IC
Height Clearance to Building Elements
50mm
Side Clearance to Building Elements
50mm
Material
Aluminium, Anti-Glare Optic Glass
Electrical Class
Class II
Driver Output Current
700mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver

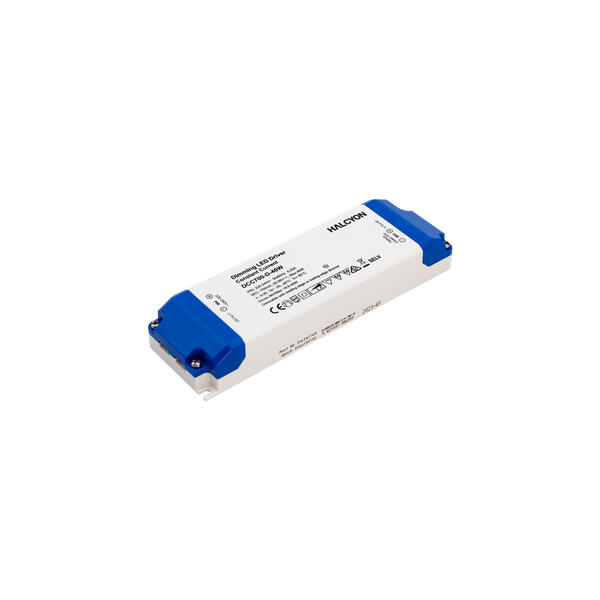

700mA 40W Constant Current Phase-cut Dimmable Driver
Watts
19.6W-40W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
