R397
- Custom Build - Request Availability
Configure your R397 2 options
- White (selected)
- Black

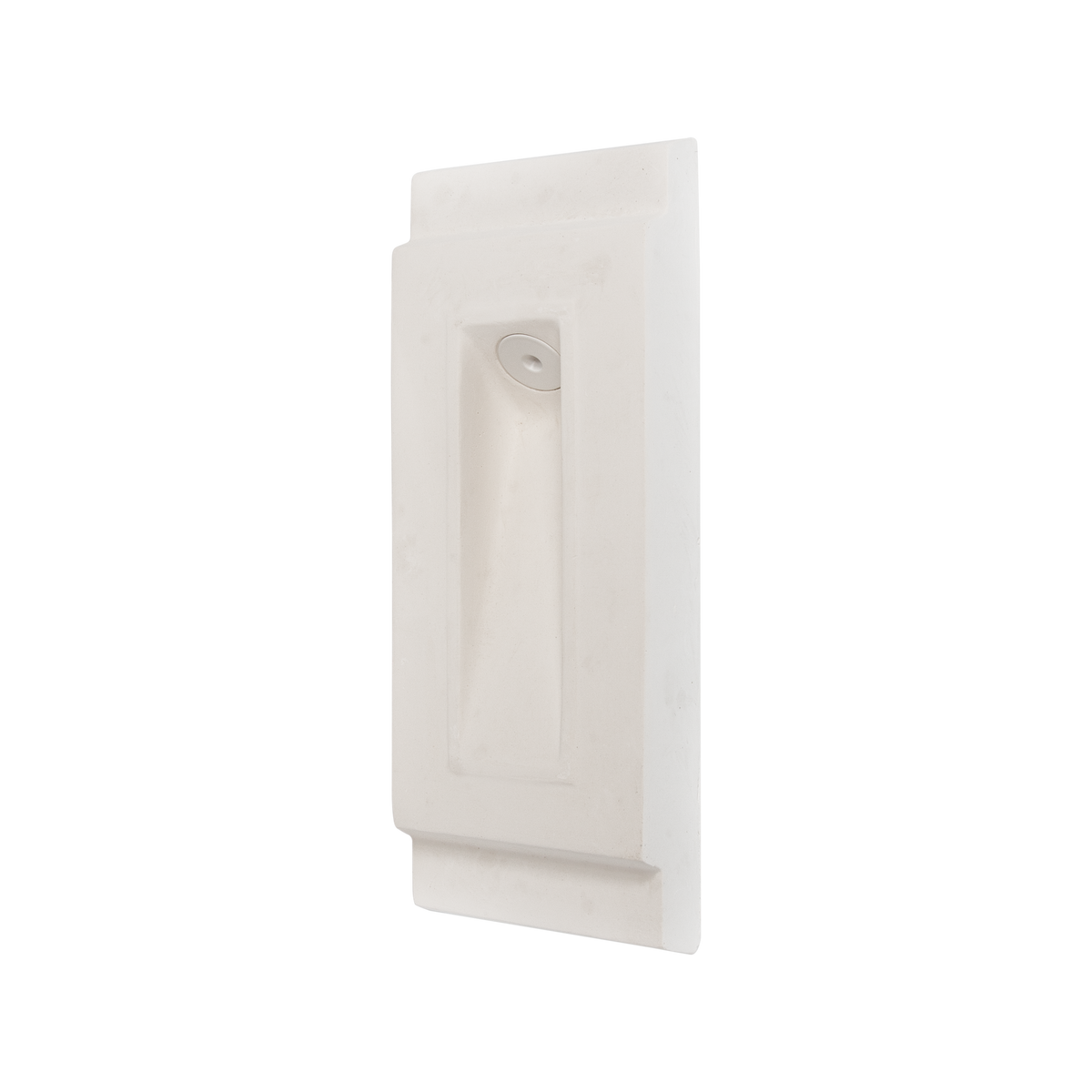

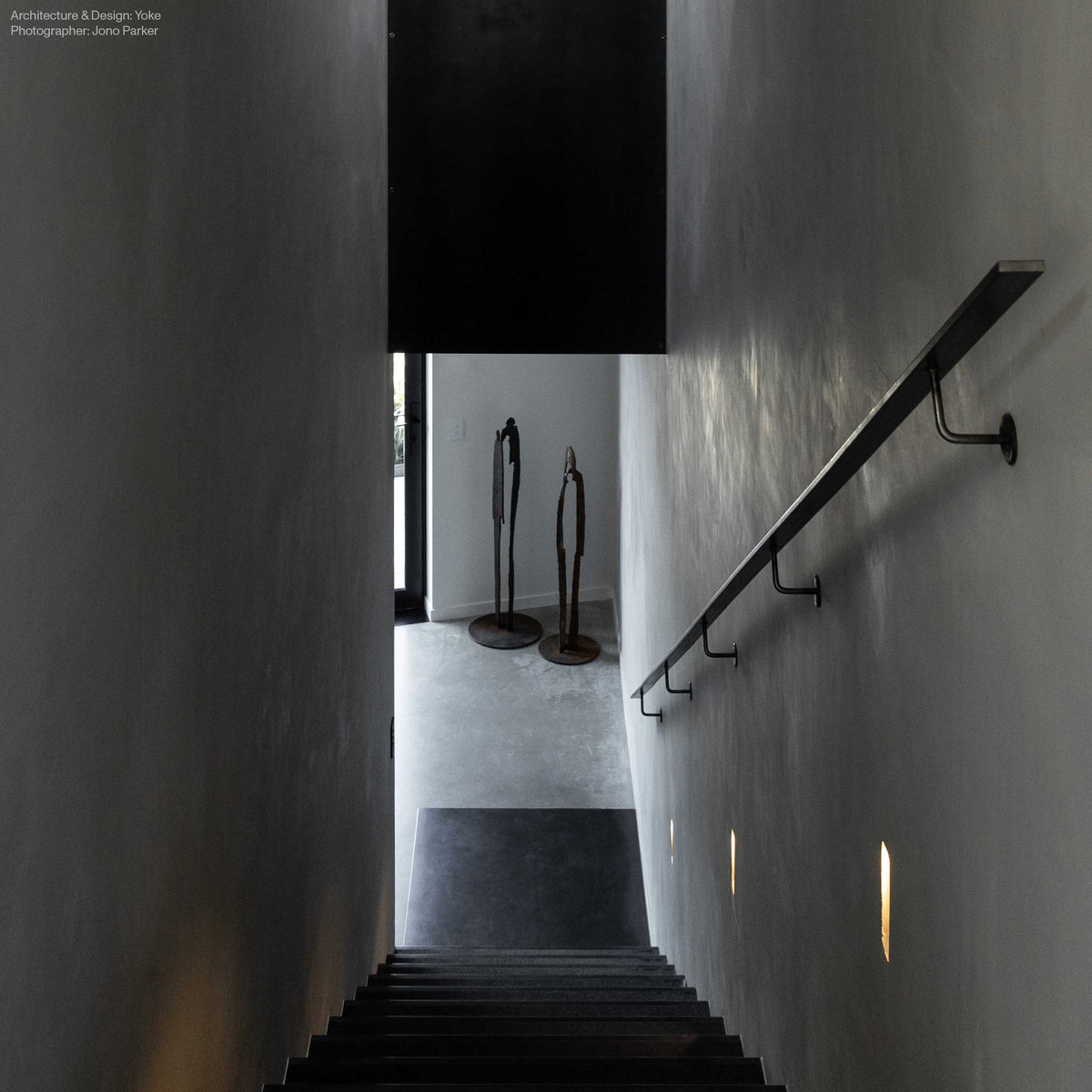

R397-W3K Trimless Ambient Wall Light Kit White
Lumens
Watts
75lm
1.2W
Not included
Please select from options
Select Wall

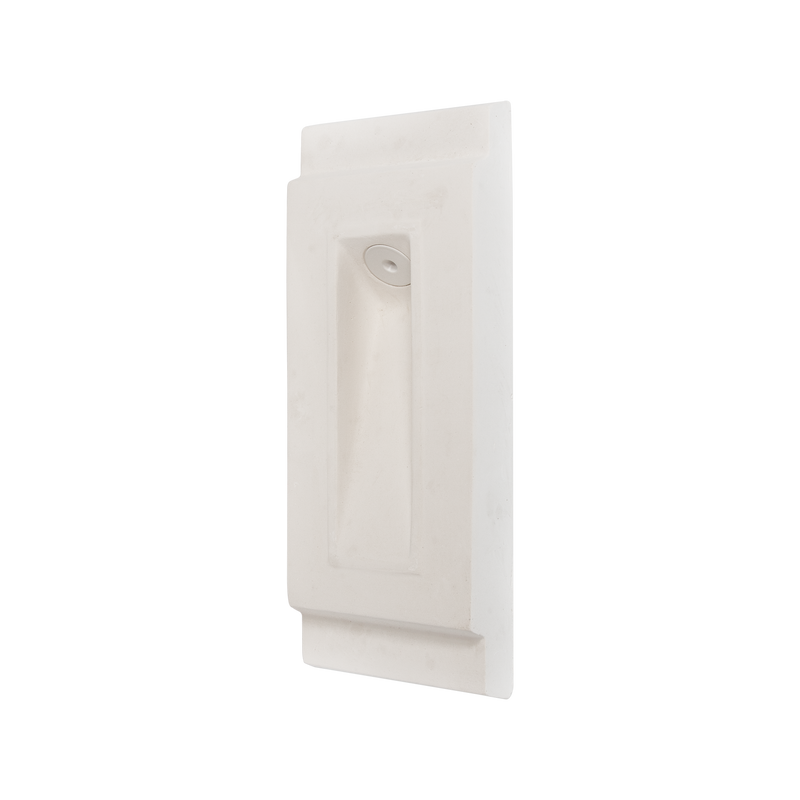

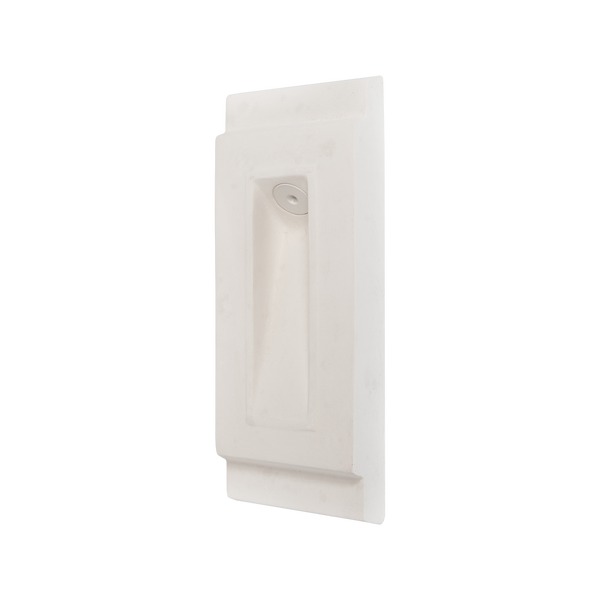

Trimless Ambient Wall Light Kit White
Cut out
L210 X W100mm
Lumens
75lm
Watts
1.2W

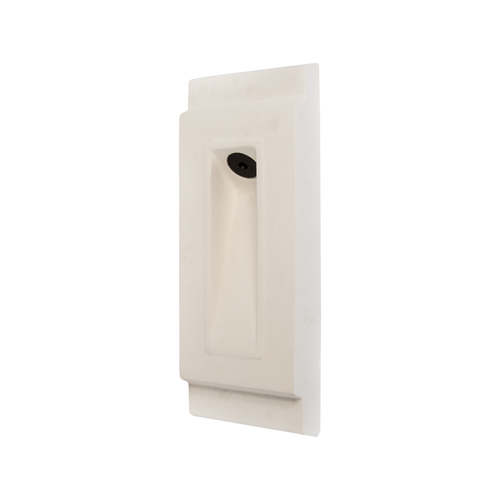

Trimless Ambient Wall Light Kit Black
Cut out
L210 x W100mm
Lumens
75lm
Watts
1.2W
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DM-4W-IP
IP65 350mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W

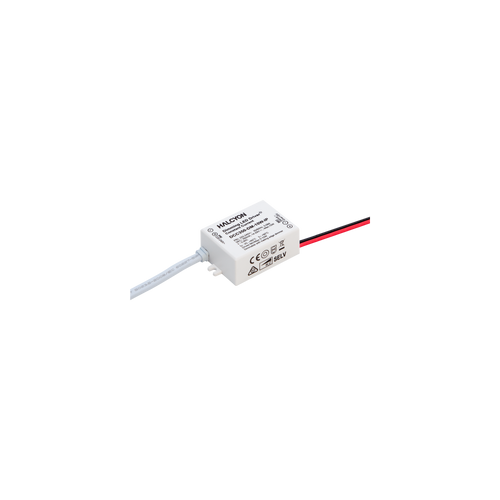

DCC350-DM-10W-IP
IP65 350mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
Non Dimmable
DCC350-M-4W-IP
IP65 350mA 4W Constant Current Mini Non-dimmable Driver
Watts
1W-4W

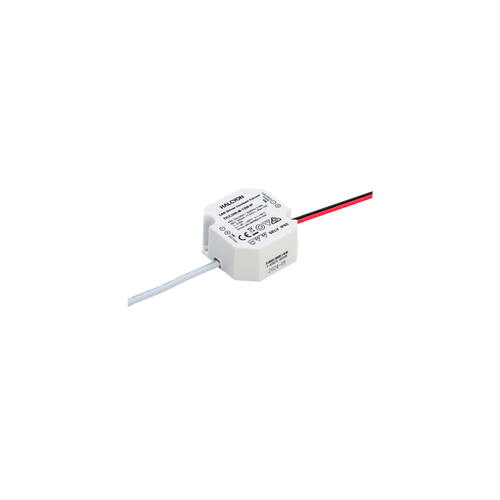

DCC350-M-12W-IP
IP65 350mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
Specifications
R397-W3K
Cut Out
L210 X W100mm
Watts
1.2W
Lumens
75lm
Beam Angle
60°
Dimming / Control
Dimmable
CRI
80
Ingress Protection
IP20
Depth
30mm
Width
100mm
Length
265mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Fibrous Plaster, Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Specifications
None
