R260
- Custom Build - Request Availability
Configure your R260 4 options

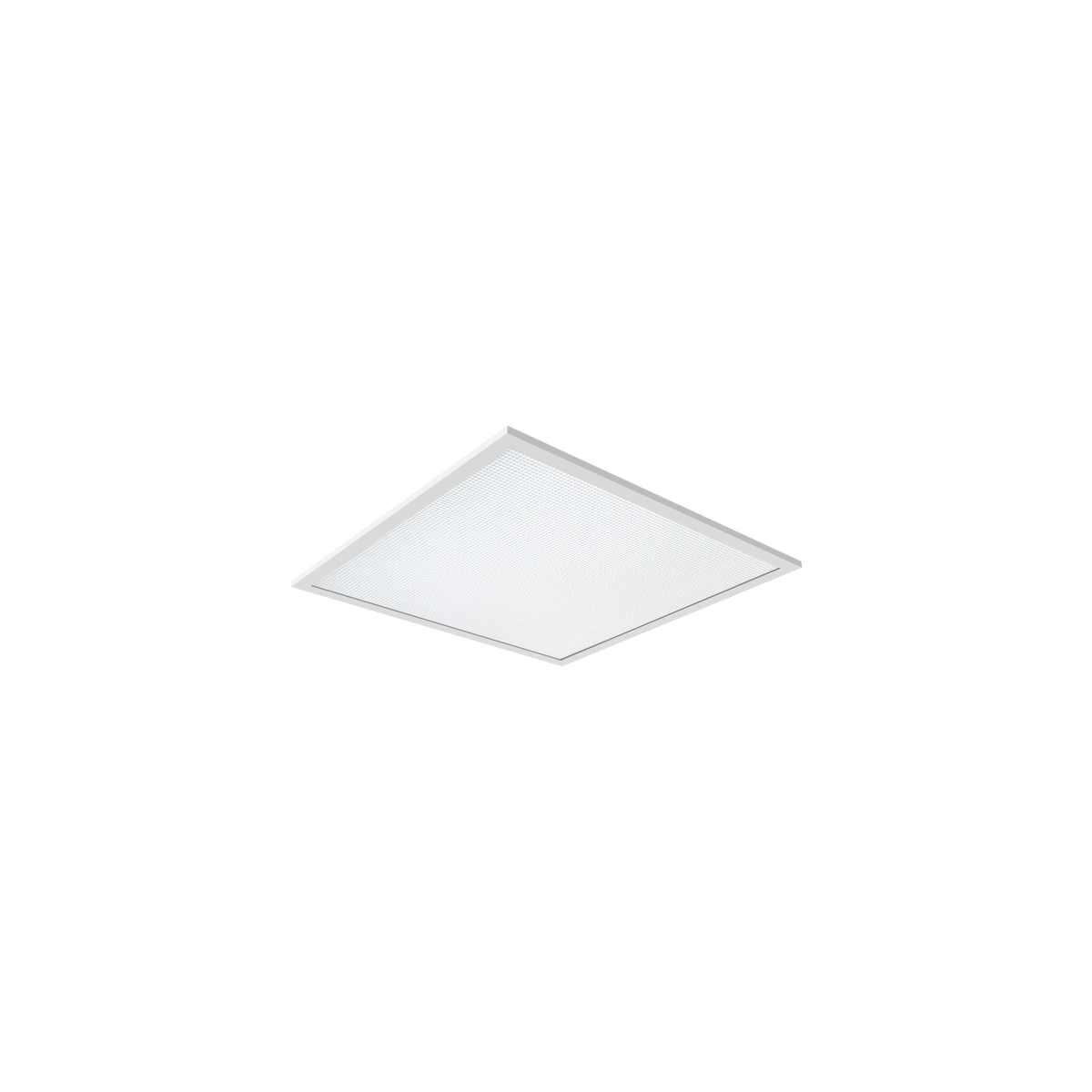

R260 W4DD 6x6 Cleanline Pro Panel Cyanosis Compliant Dali White 4000K
Lumens
Watts
3400lm
45W
-
6x6 Surface Mount Kit White
-
6x6 Recessed Frame Kit White
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panels
6x6 Cleanline Pro Panel Cyanosis Compliant White 4000K
Temp.
4000K Natural White
Lumens
3400lm
Watts
45W
6x6 Cleanline Pro Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
3100lm
Watts
41W
6x6 Cleanline Pro Panel Cyanosis Compliant Dali White 4000K
Temp.
4000K Natural White
Lumens
3400lm
Watts
45W
6x6 Cleanline Pro Panel Cyanosis Compliant 1-10V White 4000K
Temp.
4000K Natural White
Lumens
3100lm
Watts
41W
Specifications
R260 W4DD
Finish
White
Colour Temp
4000K Natural White
Watts
45W
Lumens
3400lm
Beam Angle
80°
Input
240V
Dimming / Control
Dali
CRI
97
Ingress Protection
IP65
Height
25.8mm
Width
595mm
Length
595mm
Binning
SDCM 3
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium Frame, PS Diffuser, PMMA LGP
Electrical Class
Class II - double insulated
Driver Output Current
1150mA
Driver
Included, Remote
Ambient Operating Temperature
-20..+40°C
Power Factor
0.95
Warranty
5 Year Warranty
