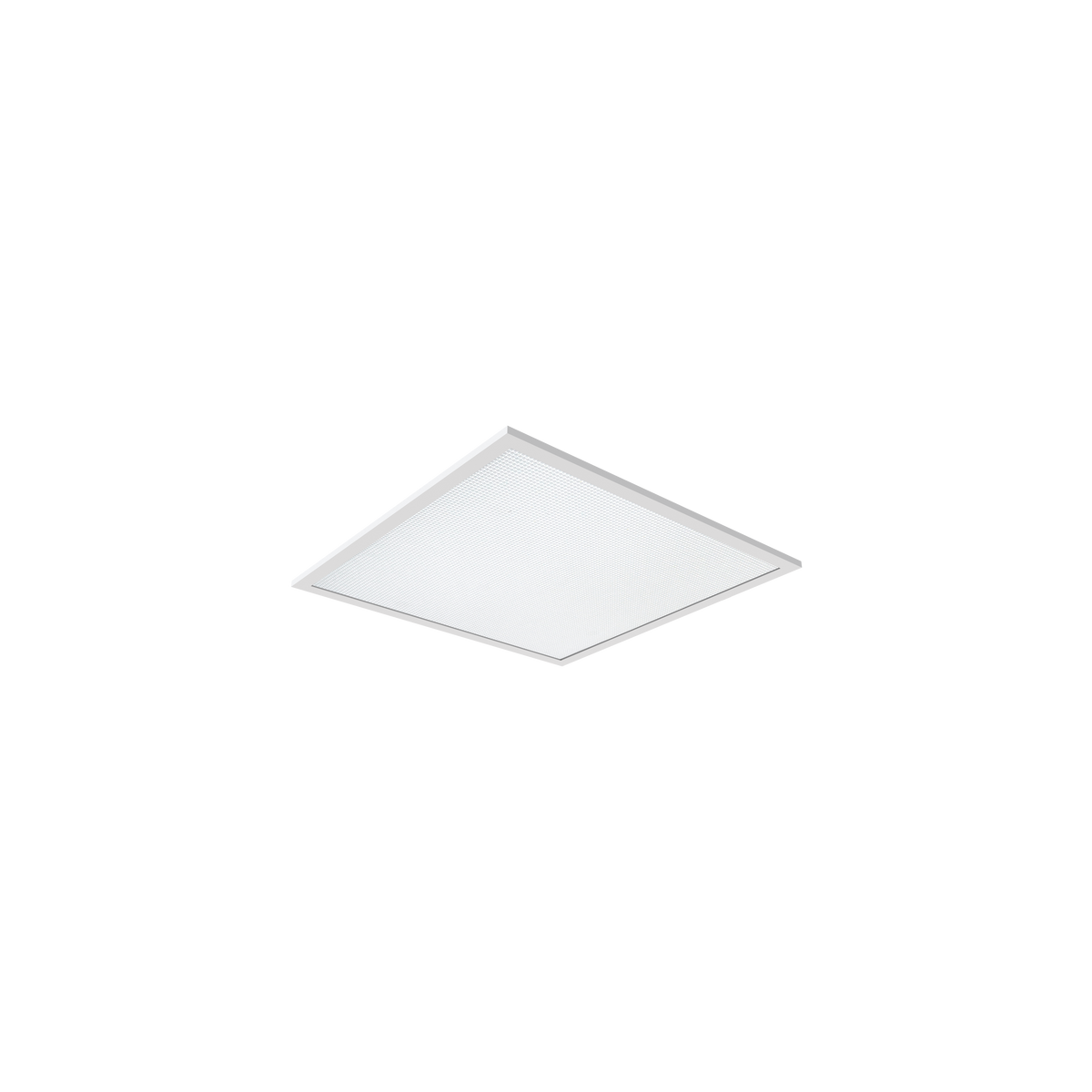

6x6 Cleanline Pro Panel Cyanosis Compliant 45W 4K CRI97 IP65 Non-Dimmable White
Panels
6x6 Cleanline Pro Panel Cyanosis Compliant White 4000K

R260 W4 6x6 Cleanline Pro Panel Cyanosis Compliant White 4000K

Lumens

Watts

3400lm

45W

View Options

Add to

Select Panels

Select driver

driver sold separately. Please select below.

Specifications

6x6 Cleanline Pro Panel Cyanosis Compliant White 4000K

Panels

R260 W4

Finish

White

Colour Temp

4000K Natural White

Watts

45W

Lumens

3400lm

Beam Angle

80°

Input

240V

Dimming / Control

Non-Dimmable

CRI

97 (R9 93)

Lifespan

50,000hrs (L80 B10)

Ingress Protection

IP65

Height

25.8mm

Width

595mm

Length

595mm

Binning

SDCM 3

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Classification

IC-F, Driver must be installed above insulation

Material

Aluminium Frame, PS Diffuser, PMMA LGP

Electrical Class

Class I

Driver Output Current

1150mA

Driver Included / Incorporated

Driver Included

Ambient Operating Temperature

-20..+40°C

Power Factor

0.95

Warranty

5 Year Warranty
