R260 W4D
R260
- Custom Build - Request Availability

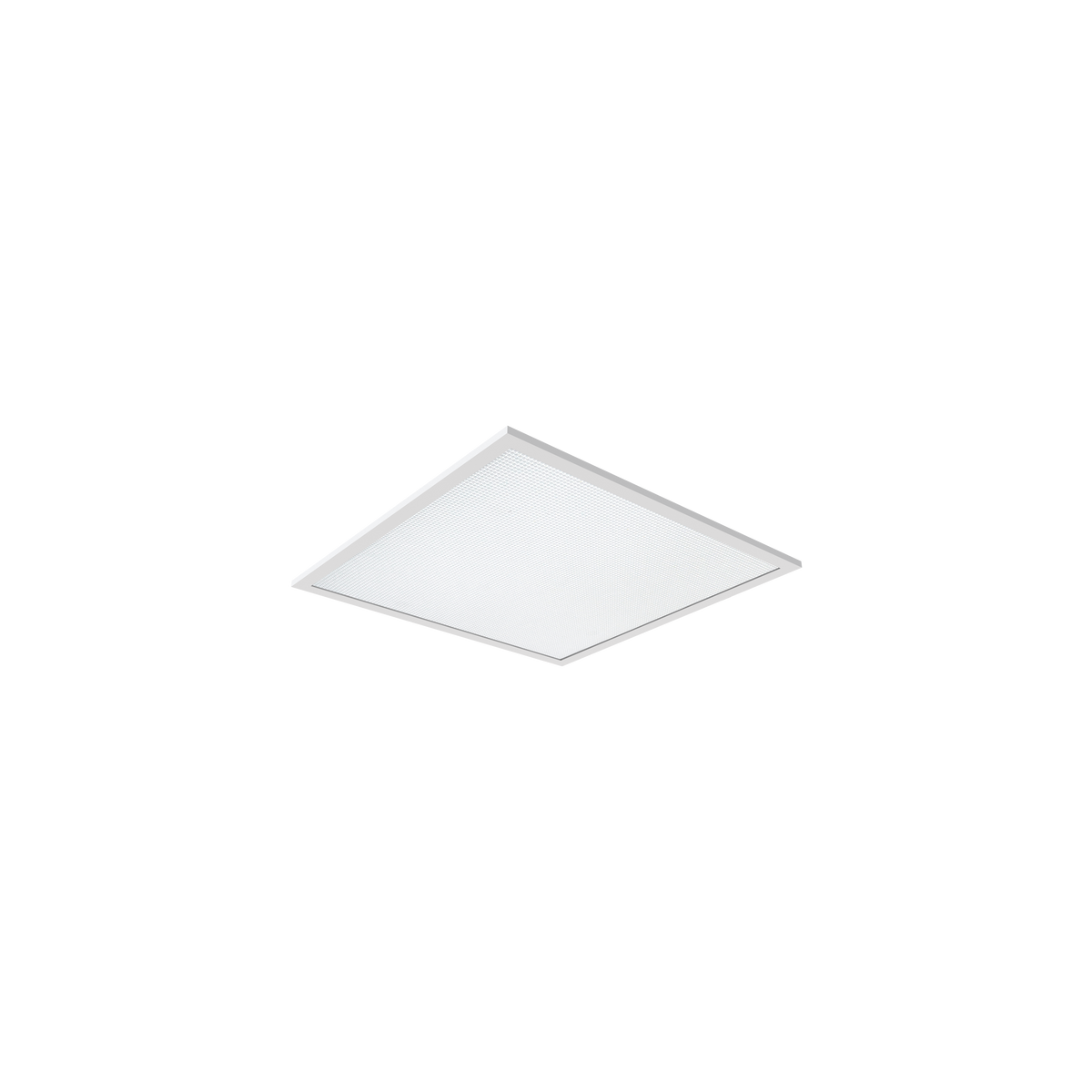

R260 W4D 6x6 Cleanline Pro Panel Phase-cut Dimmable White 4000K
Lumens
Watts
3100lm
41W
View Options
-
6x6 Surface Mount Kit White
-
6x6 Recessed Frame Kit White
-
6x3 & 6x6 Suspension Kit
-
Cable Restraint 300mm (4 pack)
Select Panels
R260
6x6 Cleanline Pro Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
3100lm
Watts
41W
R260
6x6 Cleanline Pro Panel Cyanosis Compliant White 4000K
Temp.
4000K Natural White
Lumens
3400lm
Watts
45W
R260
6x6 Cleanline Pro Panel Cyanosis Compliant Dali White 4000K
Temp.
4000K Natural White
Lumens
3400lm
Watts
45W
R260
6x6 Cleanline Pro Panel Cyanosis Compliant 1-10V White 4000K
Temp.
4000K Natural White
Lumens
3100lm
Watts
41W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
41W
Lumens
3100lm
Beam Angle
80°
Input
240V AC
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
50,000hrs (L80 B10)
Ingress Protection
IP65
Height
25.8mm
Width
595mm
Length
595mm
Binning
SDCM 3
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium Frame, PS Diffuser, PMMA LGP
Electrical Class
Class II - double insulated
Driver Output Current
1050mA
Driver Included / Incorporated
Driver Included
Ambient Operating Temperature
-20..+40°C
Power Factor
0
Warranty
5 Year Warranty
Resources
