M81-T3-W3K
M81-T3
- Checking stock...
M81-T3-W3K Cevon M81 Type 3 Square Wallwasher White 3000K
Lumens
Watts
890lm
12W
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M81-T3

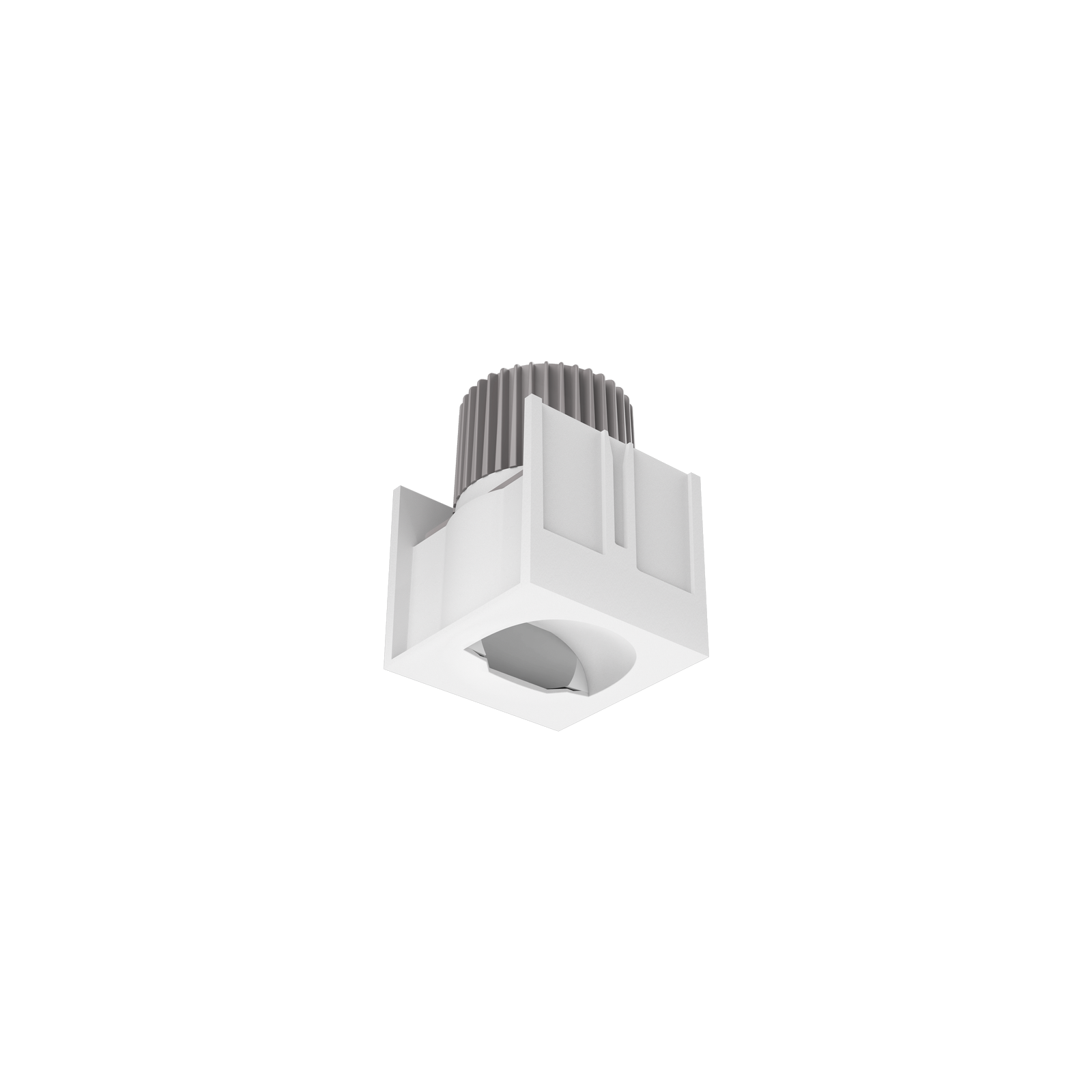

Cevon M81 Type 3 Square Wallwasher White 3000K
Temp.
3000K Warm White
Lumens
890lm
Watts
12W
M81-T3

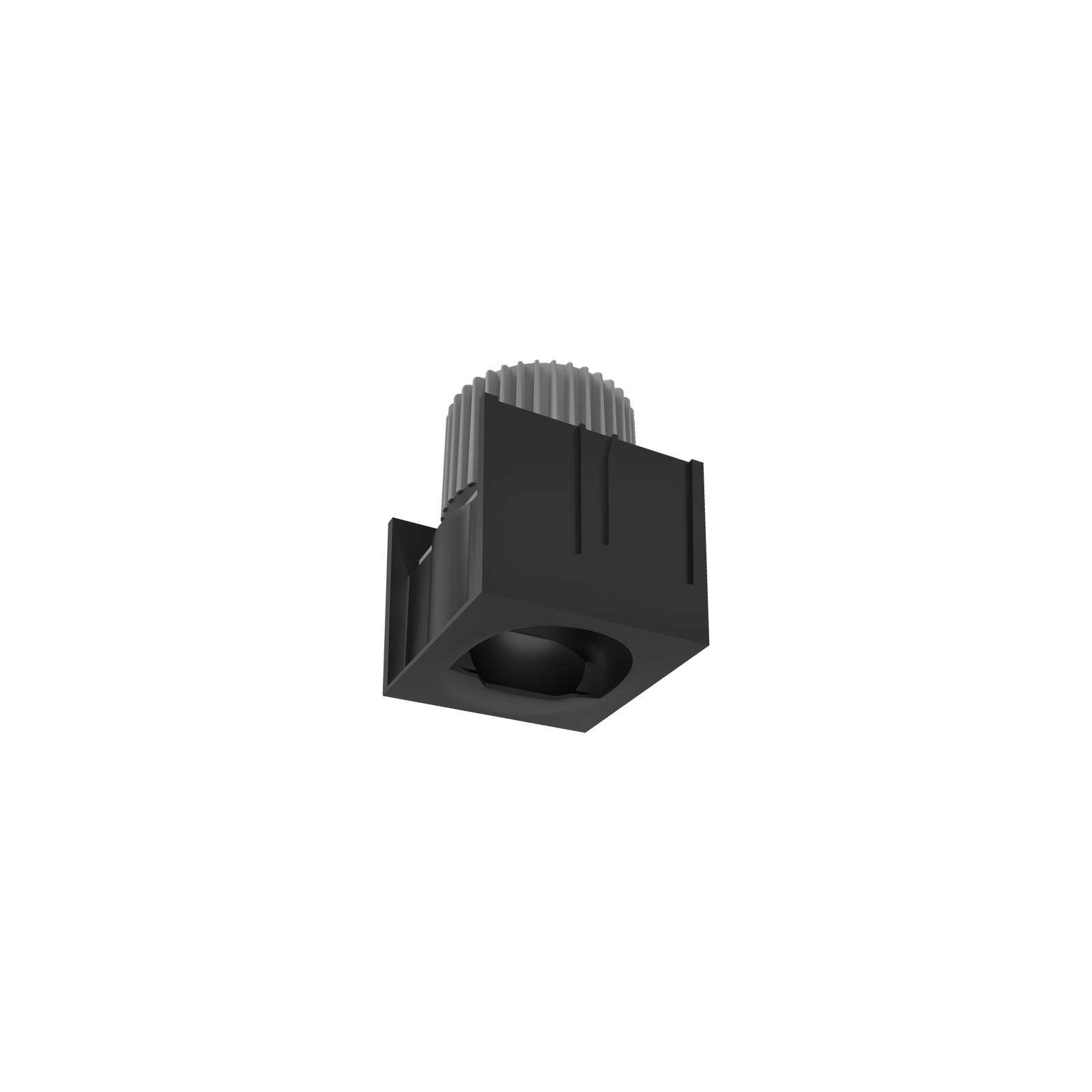

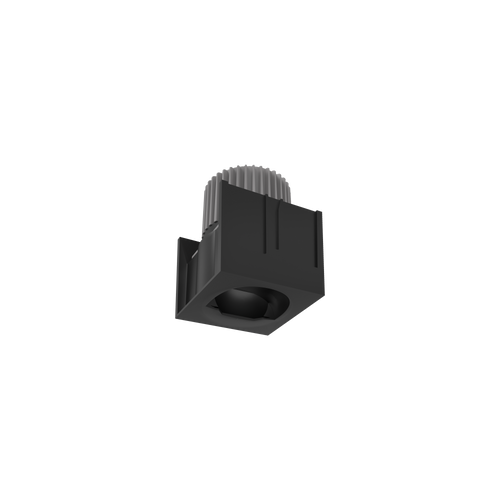

Cevon M81 Type 3 Square Wallwasher Black 3000K
Temp.
3000K Warm White
Lumens
890lm
Watts
12W
Select Frame
Frame sold separately. Please select below.
F81-SQ

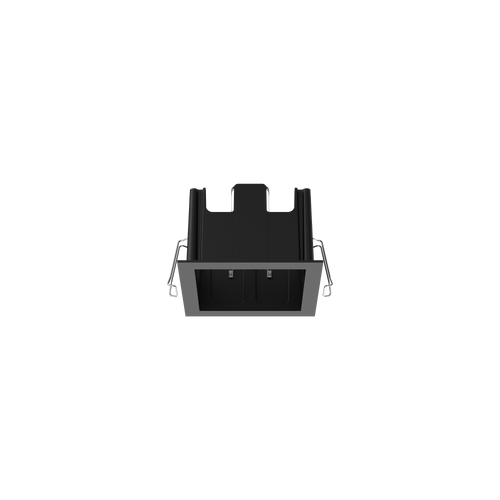

Cevon Type Recessed Square Frame for M81 Black
Cut out
95 x 95mm
F81-SQ

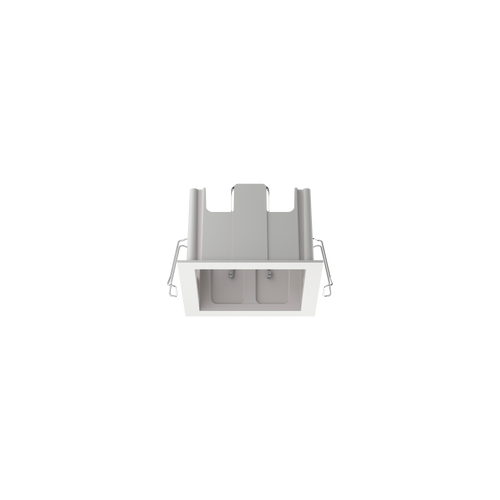

Cevon Type Recessed Square Frame for M81 White
Cut out
95 x 95mm
F81-SQ2

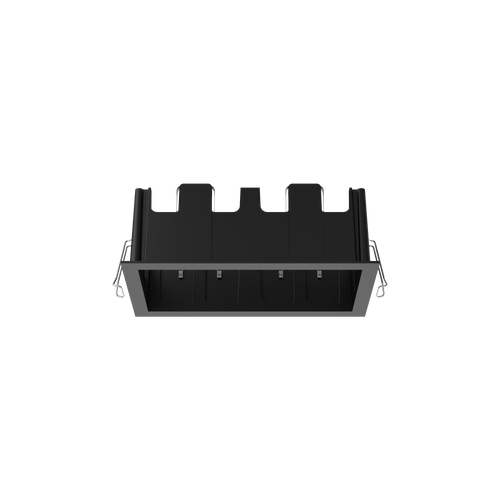

Cevon Type Recessed Rectangular Double Frame for M81 Black
Cut out
173 x 95mm
F81-SQ2
Cevon Type Recessed Rectangular Double Frame for M81 White
Cut out
173 x 95mm
F81-TL-SQ

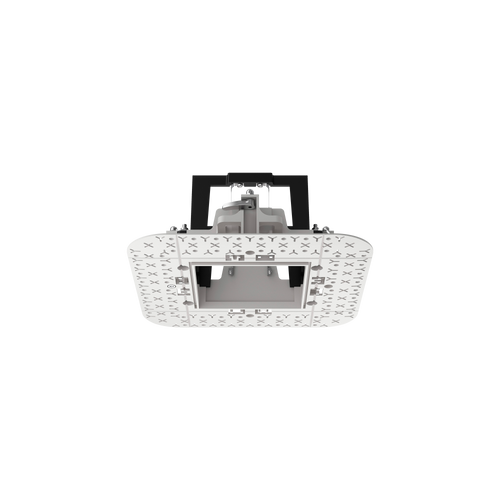

Cevon Type Trimless Square Frame for M81
Cut out
130 x 130mm
F81-TL-SQ2

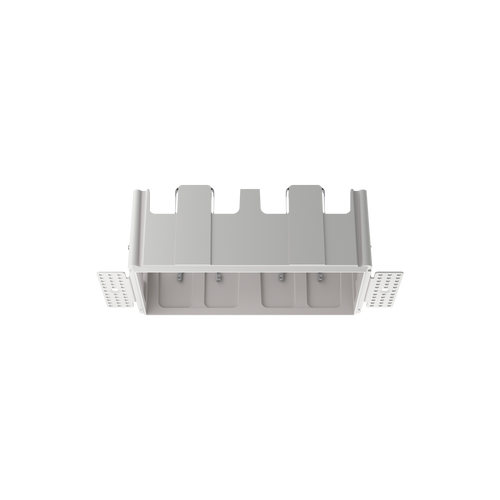

Cevon Type Trimless Rectangular Double Frame for M81
Cut out
177 x 94mm
SF81

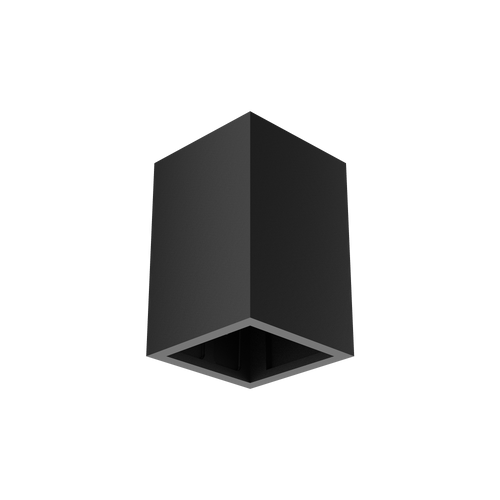

Cevon Type Surface Square Box for M81 Black
SF81

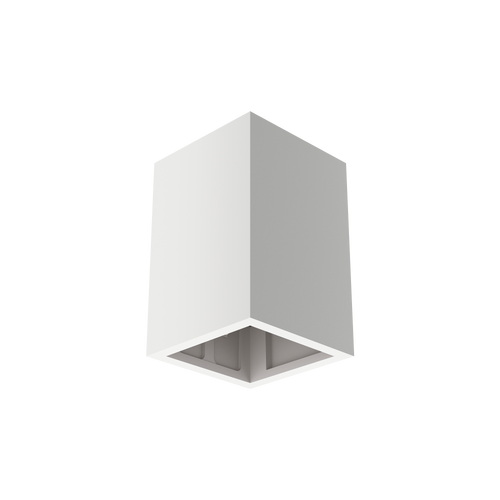

Cevon Type Surface Square Box for M81 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
12W
Lumens
890lm
Beam Angle
40°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
106mm
Width
78mm
Length
78mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
