M60 Series
M60-T30-WG3K-36D
M60-T30
- Custom Build - Stock Available

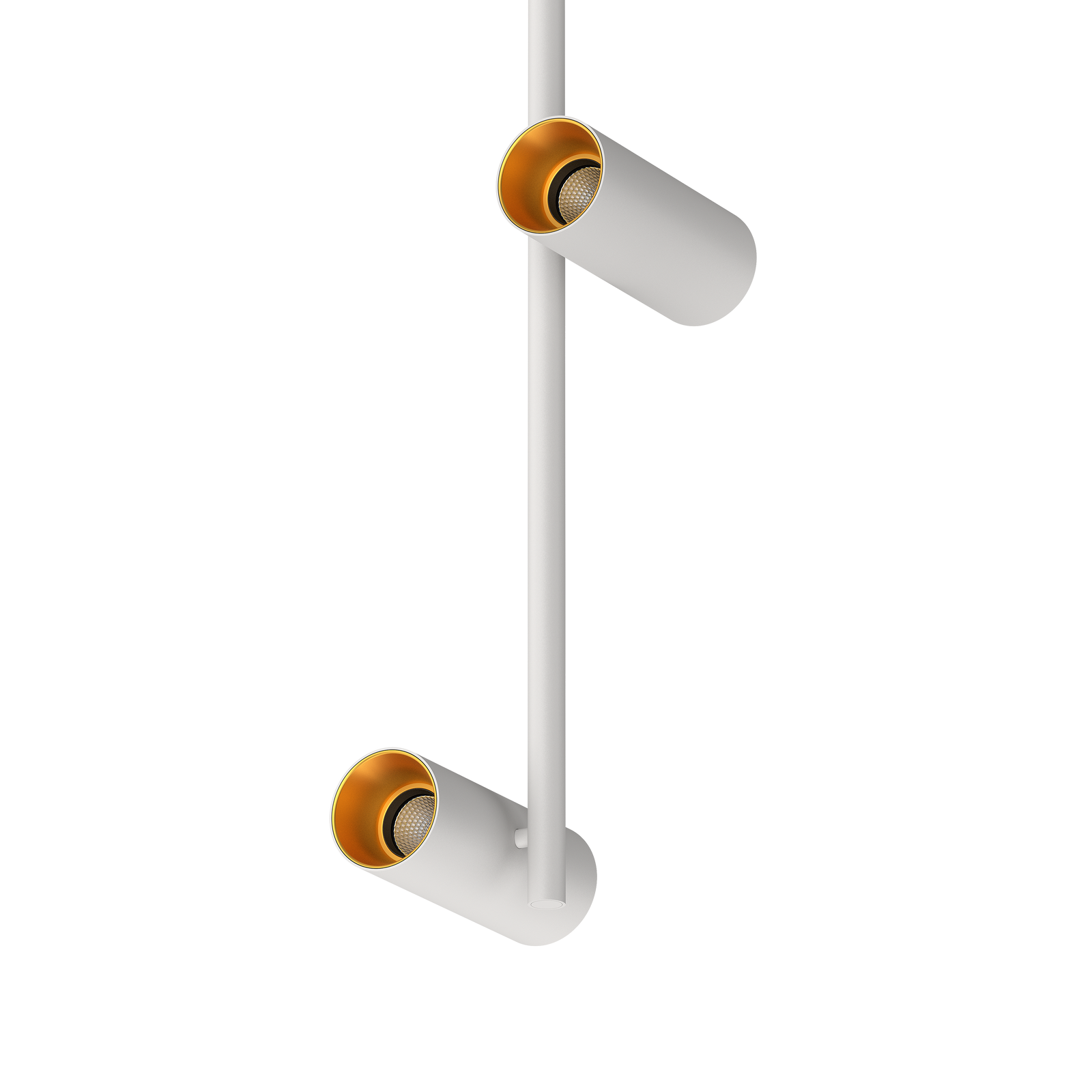

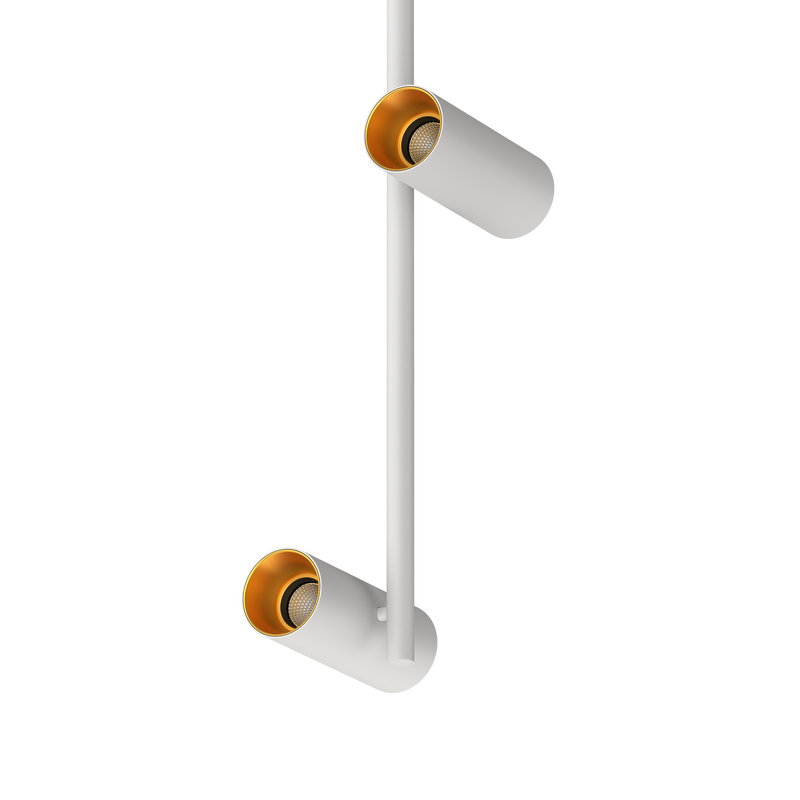

M60-T30-WG3K-36D Cevon M60 Type 30 Adjustable Spot White, Gold 3000K
Lumens
Watts
Tilt Angle
560lm
2x 6.5W
355°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M60-T30
Cevon M60 Type 30 Adjustable Spot White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
560lm
Rotate Angle
355°
Watts
2x 6.5W
M60-T30
Cevon M60 Type 30 Adjustable Spot Black 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
560lm
Rotate Angle
355°
Watts
13W
M60-T30
Cevon M60 Type 30 Adjustable Spot Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
560lm
Rotate Angle
355°
Watts
2x 6.5W
M60-T30
Cevon M60 Type 30 Adjustable Spot Black, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
560lm
Rotate Angle
355°
Watts
13W
M60-T30
Cevon M60 Type 30 Adjustable Spot Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
590lm
Rotate Angle
355°
Watts
13W
M60-T30
Cevon M60 Type 30 Adjustable Spot White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
560lm
Rotate Angle
355°
Watts
13W
M60-T30
Cevon M60 Type 30 Adjustable Spot White, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
560lm
Rotate Angle
355°
Watts
13W
M60-T30
Cevon M60 Type 30 Adjustable Spot White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
590lm
Rotate Angle
355°
Watts
13W
M60-T30
Cevon M60 Type 30 Adjustable Spot White 3000K
Temp.
3000K Warm White
Tilt Angle
355°
Lumens
590lm
Rotate Angle
355°
Watts
13W
Select Frame
Frame sold separately. Please select below.
F60-RR
Cevon Type Recessed Round Frame for M60 Black
Cut out
Ø75mm
F60-RR
Cevon Type Recessed Round Frame for M60 White
Cut out
Ø75mm
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-RSQ
Cevon Type Recessed Square Frame for M60 Black
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 White
Cut out
Ø75mm
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-TL
Cevon Type Trimless Frame for M60 White
Cut out
Ø105mm
SF60
Cevon Type Surface Cylinder for M60 Black
SF60
Cevon Type Surface Cylinder for M60 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC200350-DX-815W
200-350mA 15W Dimmable Constant Current DX Series Driver
Watts
8.4W-15W
Dali
DCC150700-DDM-612W
150-700mA 12W Constant Current Mini Dali Driver
Watts
6.3W-12W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
Finish
White, Gold
Colour Temp
3000K Warm White
Watts
2x 6.5W
Lumens
560lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
355°
Rotate Angle
355°
Ingress Protection
IP43
Diameter
Base: Ø60mm, Spot: Ø40mm
Height
490mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
2x 200mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
