M60 Series
M60-T19-XL-WB3K-45D
M60-T19-XL
- Checking stock...

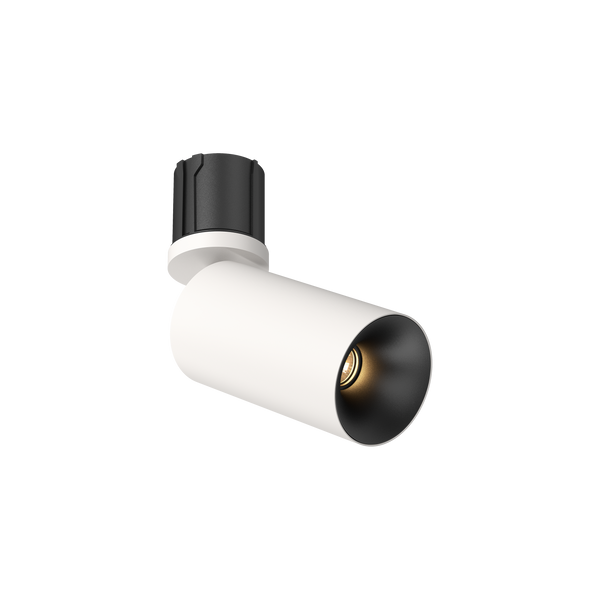

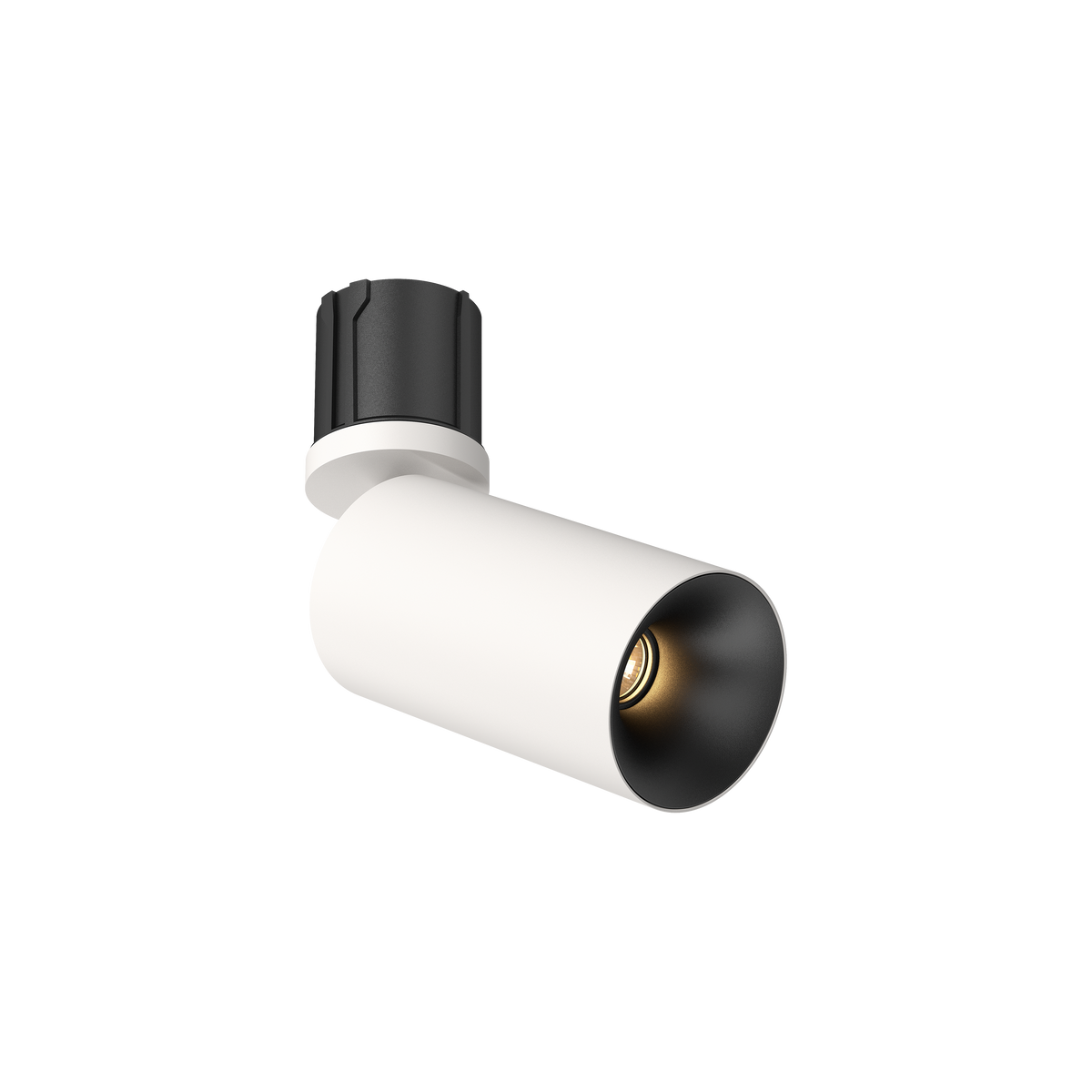

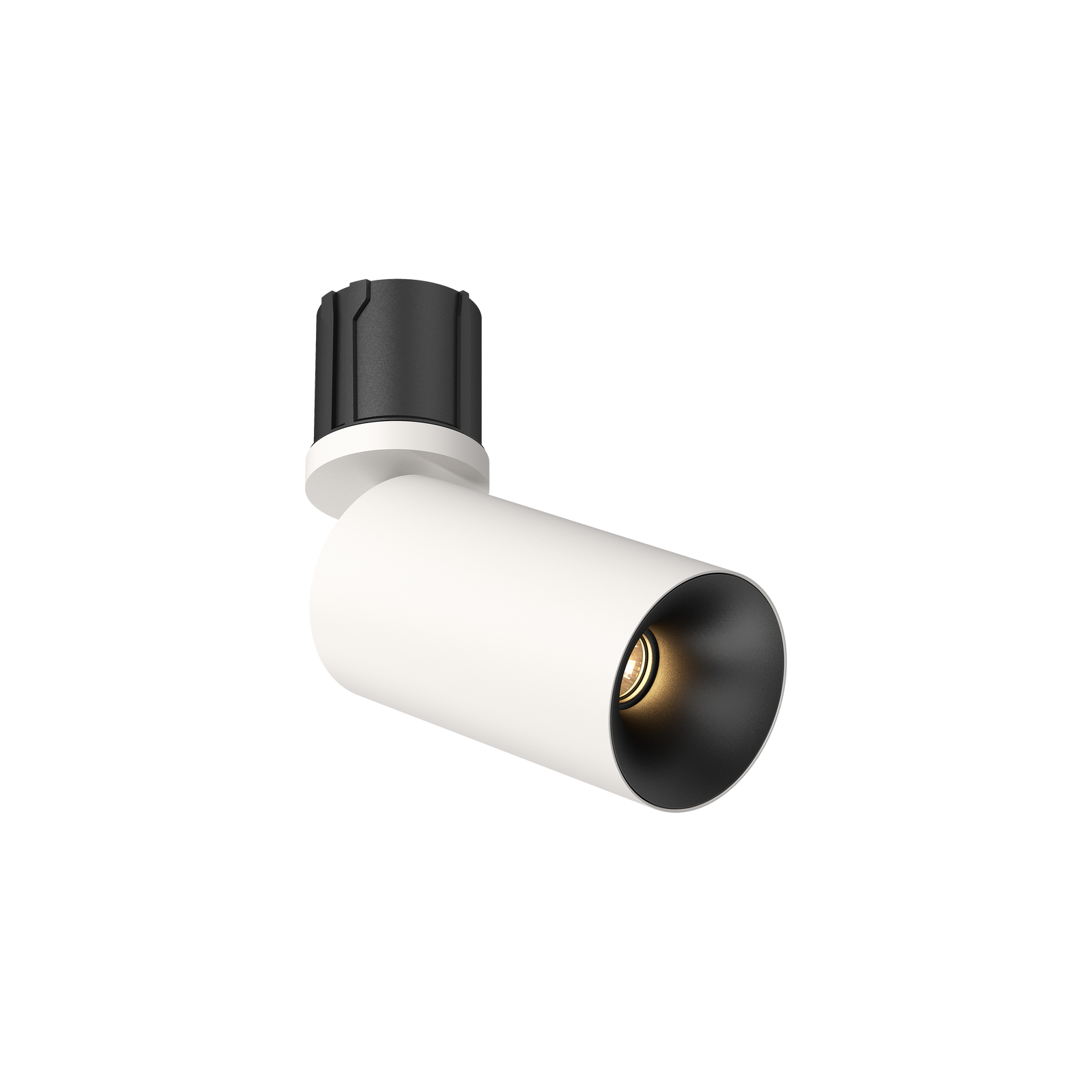

M60-T19-XL-WB3K-45D Cevon M60 Type 19-XL Dark Art Adjustable Spot White, Black 3000K
Lumens
Watts
Tilt Angle
1370lm
17W
90°
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adjustable Spot White, Black 3000K
Temp.
3000K
Tilt Angle
90°
Lumens
1370lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adjustable Spot White 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1430lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adjustable Spot White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1430lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adj Spot White, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1370lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adjustable Spot White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1370lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adjustable Spot Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1430lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adj Spot Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1370lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adjustable Spot Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1370lm
Rotate Angle
355°
Watts
17W
M60-T19-XL
Cevon M60 Type 19-XL Dark Art Adjustable Spot Black 3000K
Temp.
3000K Warm White
Tilt Angle
90°
Lumens
1370lm
Rotate Angle
355°
Watts
17W
Select Frame
Frame sold separately. Please select below.
F60-RR
Cevon Type Recessed Round Frame for M60 Black
Cut out
Ø75mm
F60-RR
Cevon Type Recessed Round Frame for M60 White
Cut out
Ø75mm
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-RSQ
Cevon Type Recessed Square Frame for M60 Black
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 White
Cut out
Ø75mm
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-TL
Cevon Type Trimless Frame for M60 White
Cut out
Ø105mm
SF60
Cevon Type Surface Cylinder for M60 Black
SF60
Cevon Type Surface Cylinder for M60 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-20W
500mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
White, Black
Colour Temp
3000K
Watts
17W
Lumens
1370lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Tilt Angle
90°
Rotate Angle
355°
Ingress Protection
IP43
Diameter
Base: Ø60mm, Spot: Ø75mm
Height
Base: 65mm, Spot: 140mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
500mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
