M60 Series
M60-T16
- Custom Build - Request Availability
Configure your M60-T16 18 options
- White
- White, Black (selected)
- White, Gold
- White, High Gloss Black
- White, Silver
- Black
- Black, Gold
- Black, High Gloss Black
- Black, Silver

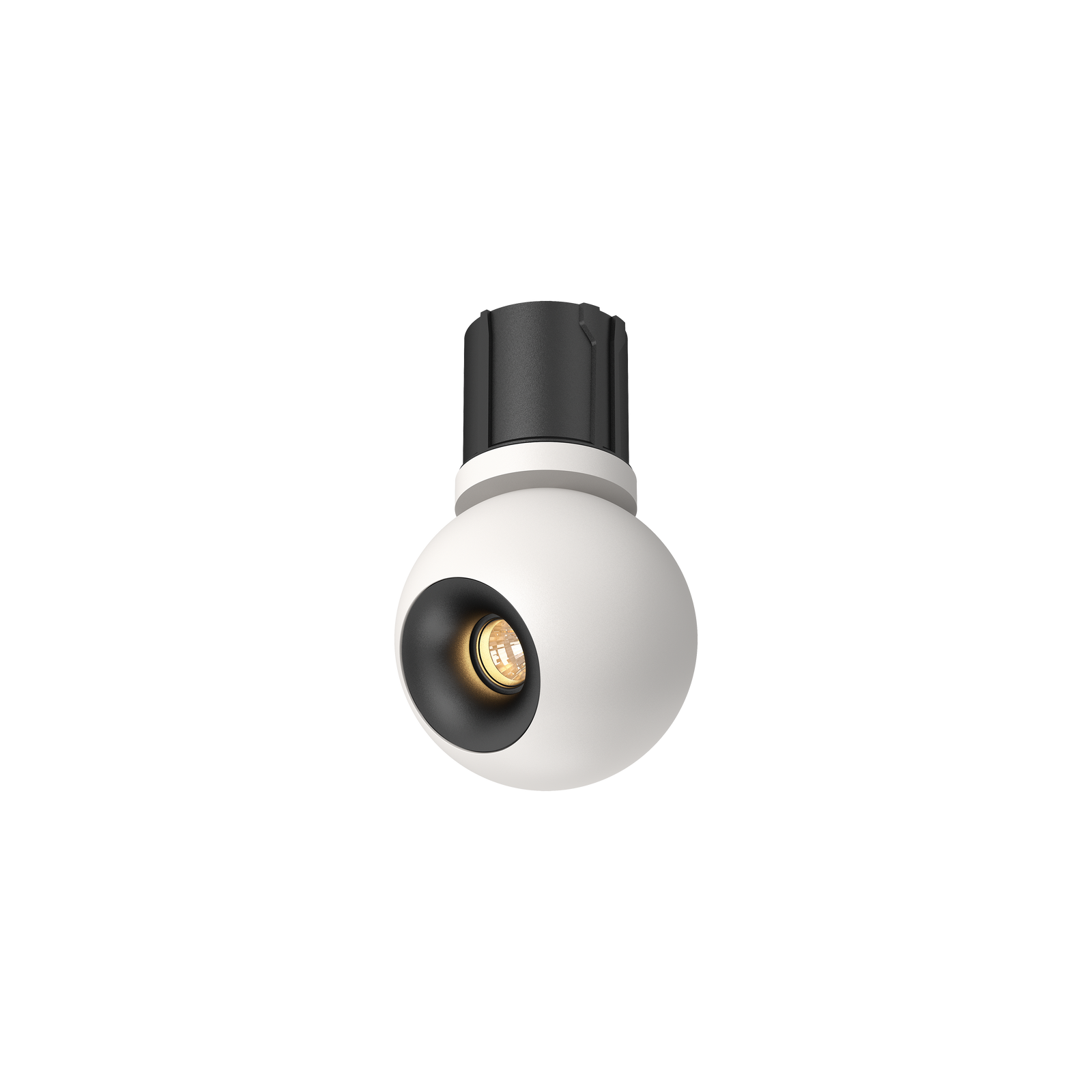

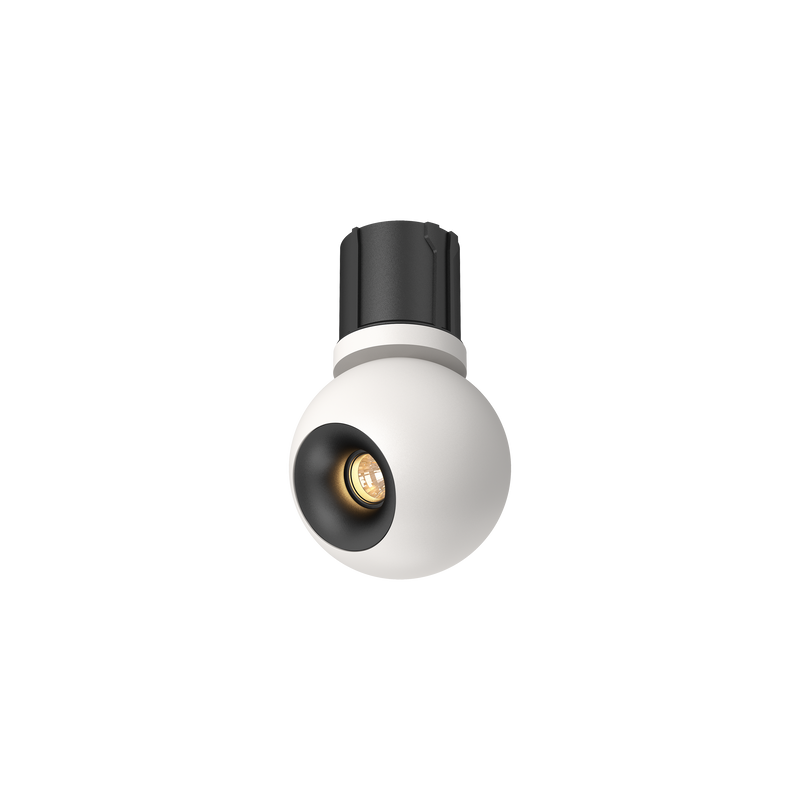

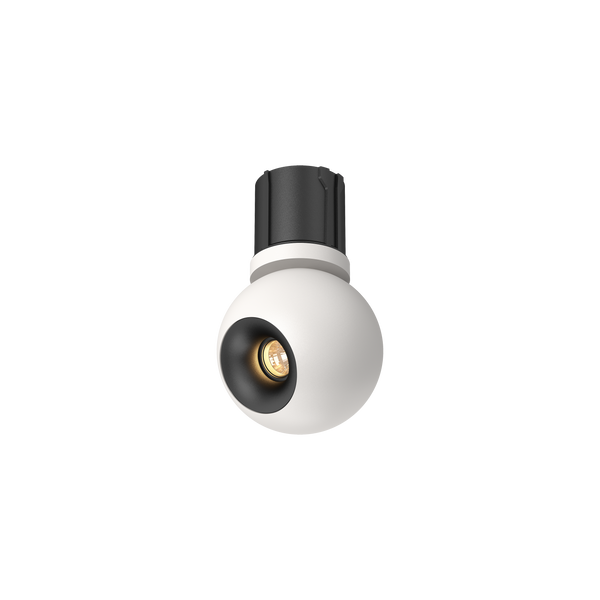

M60-T16-WB3K-55D Cevon M60 Type 16 Dark Art Sphere White, Black 3000K
Lumens
Watts
Tilt Angle
1030lm
12W
60°
Not included
Please select from options
Not included
Please select from options
Select Module
M60-T16
Cevon M60 Type 16 Dark Art Sphere White 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
955lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
925lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1030lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
925lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1030lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
925lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1030lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
955lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
925lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1030lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black, Gold 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
925lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1030lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black, High Gloss Black 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
925lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black, High Gloss Black 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1030lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black, Silver 2700K
Temp.
2700K Warm White
Tilt Angle
60°
Lumens
955lm
Rotate Angle
355°
Watts
12W
M60-T16
Cevon M60 Type 16 Dark Art Sphere Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
60°
Lumens
1050lm
Rotate Angle
355°
Watts
12W
Select Frame
Frame sold separately. Please select below.
F60-RR
Cevon Type Recessed Round Frame for M60 Black
Cut out
Ø75mm
F60-RR
Cevon Type Recessed Round Frame for M60 White
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 Black
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 White
Cut out
Ø75mm
F60-TL
Cevon Type Trimless Frame for M60 White
Cut out
Ø105mm
Cevon Type Surface Cylinder for M60 Black
Cevon Type Surface Cylinder for M60 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
M60-T16-WB3K-55D
Finish
White, Black
Colour Temp
3000K Warm White
Watts
12W
Lumens
1030lm
Beam Angle
55°
Dimming / Control
Dimmable
CRI
97
Tilt Angle
60°
Rotate Angle
355°
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
Base: Ø60mm, Spot: Ø100mm
Height
Base: 65mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
