M41-T2-WB3K-36D
M41-T2
- Checking stock...

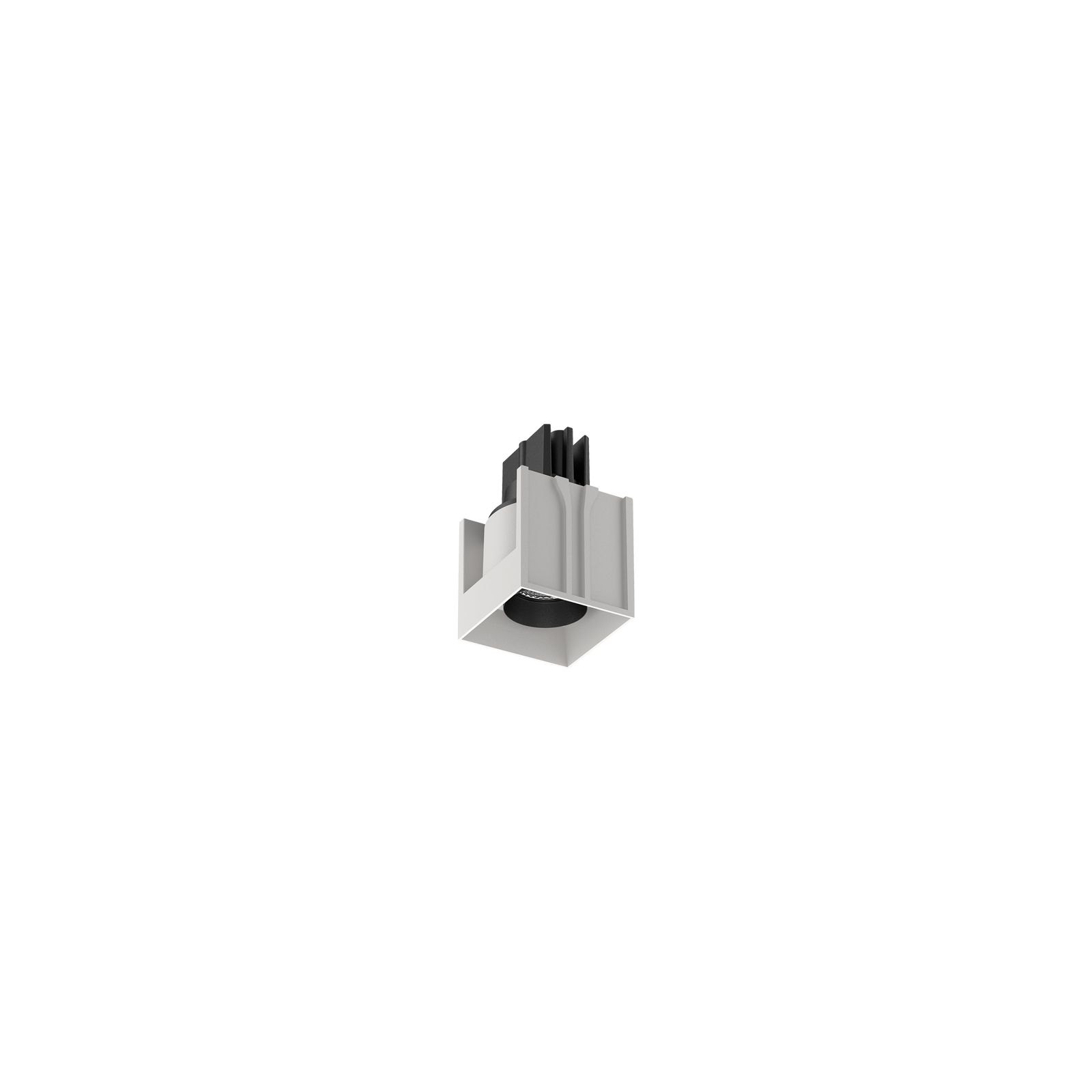

M41-T2-WB3K-36D Cevon M41 Type 2 Lotus Square Fixed White 3000K
Lumens
Watts
370lm
3.6W
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M41-T2
Cevon M41 Type 2 Lotus Square Fixed White 3000K
Temp.
3000K Warm White
Lumens
370lm
Watts
3.6W
M41-T2

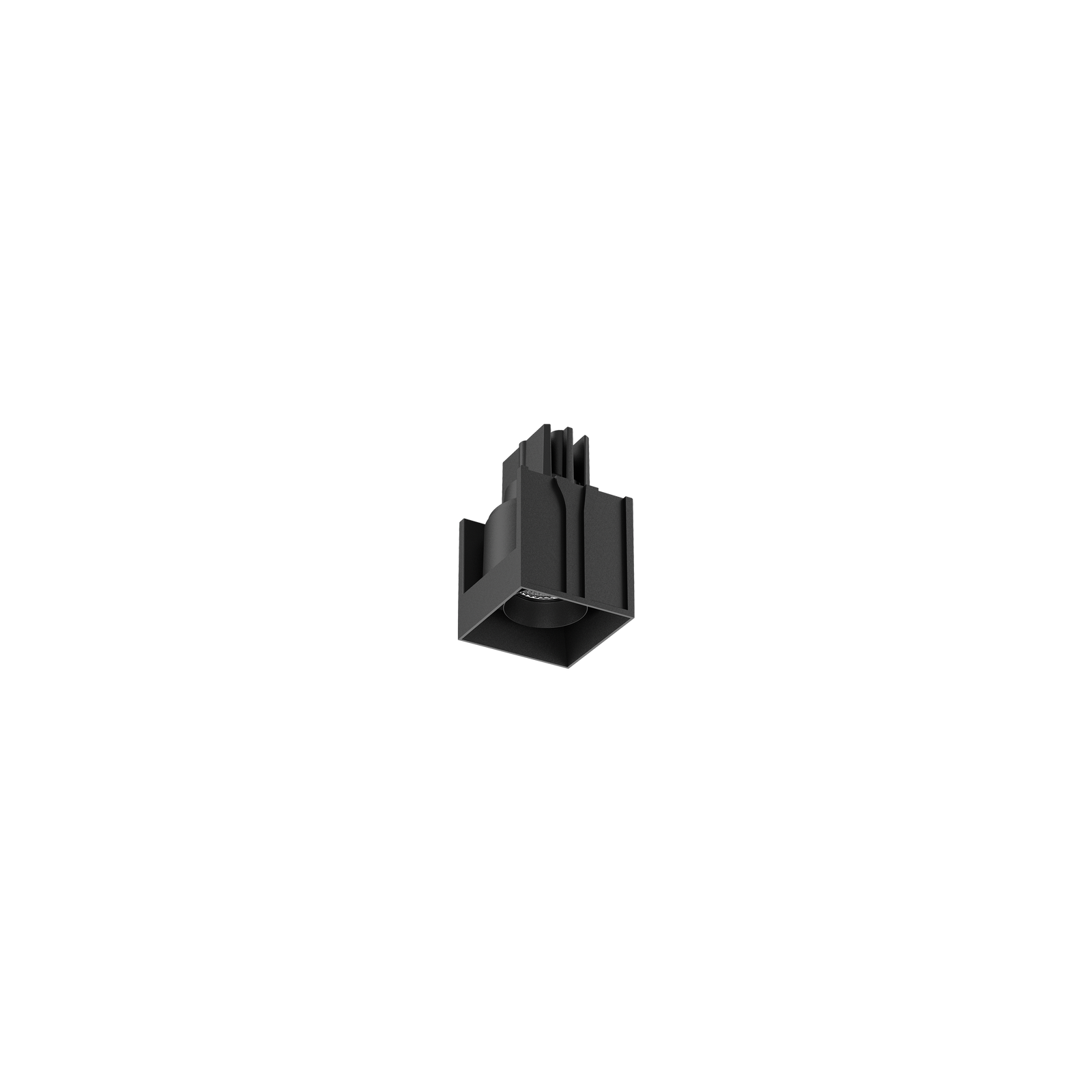

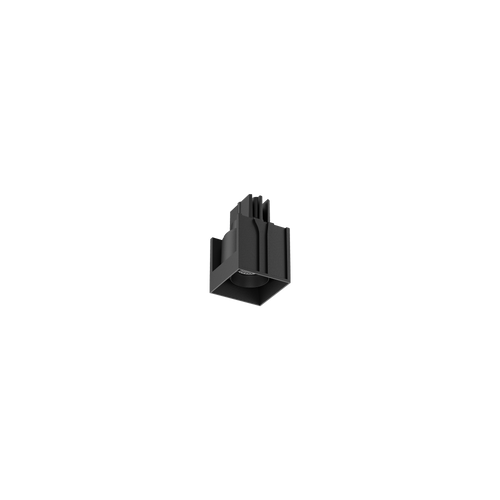

Cevon M41 Type 2 Lotus Square Fixed Black 3000K
Temp.
3000K Warm White
Lumens
370lm
Watts
3.6W
Select Frame
Frame sold separately. Please select below.

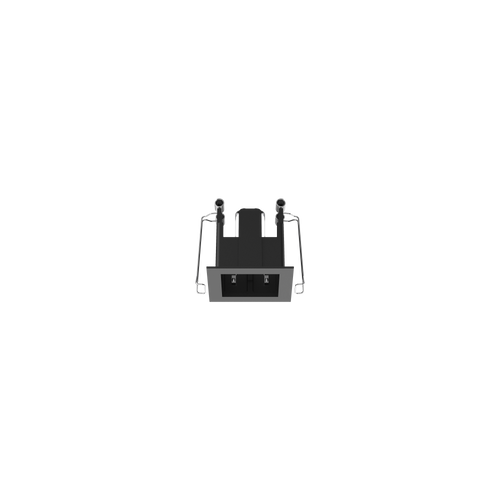

F41-SQ
Cevon Type Recessed Square Frame for M41 Black
Cut out
54x 54mm
F41-SQ
Cevon Type Recessed Square Frame for M41 White
Cut out
54x 54mm

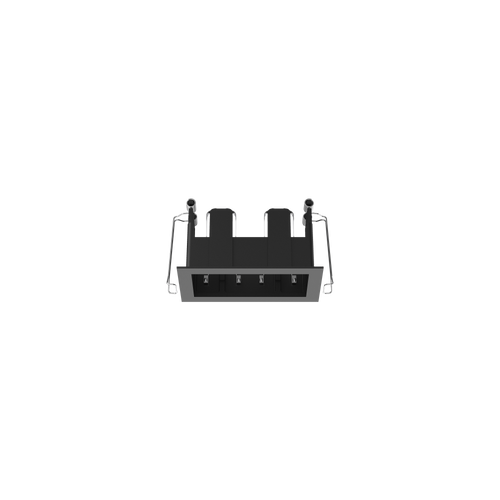

F41-SQ2
Cevon Type Recessed Rectangular Double Frame for M41 Black
Cut out
95x 54mm

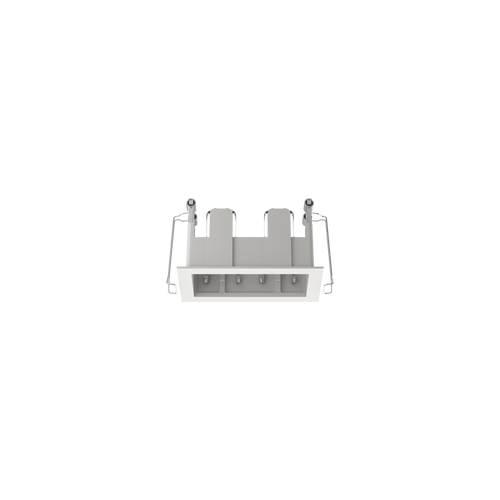

F41-SQ2
Cevon Type Recessed Rectangular Double Frame for M41 White
Cut out
95x 54mm

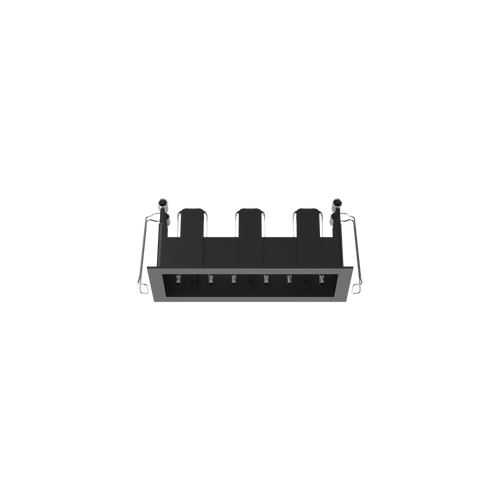

F41-SQ3-B
Cevon Type Recessed Rectangular Triple Frame for M41 Black
Cut out
136x 54mm

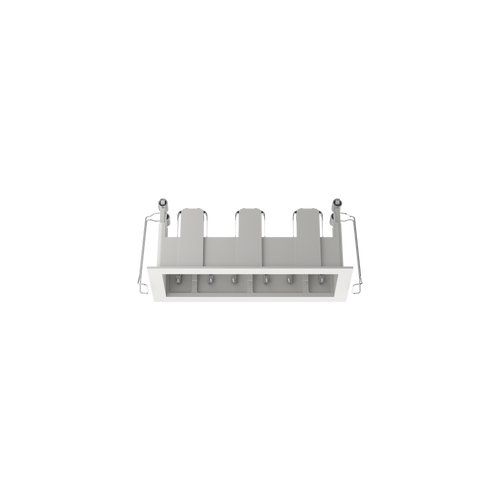

F41-SQ3
Cevon Type Recessed Rectangular Triple Frame for M41 White
Cut out
136x 54mm

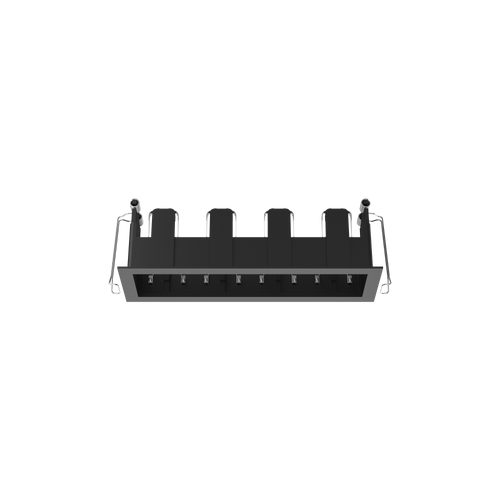

F41-SQ4
Cevon Type Recessed Rectangular Quad Frame for M41 Black
Cut out
178x 54mm
F41-SQ4

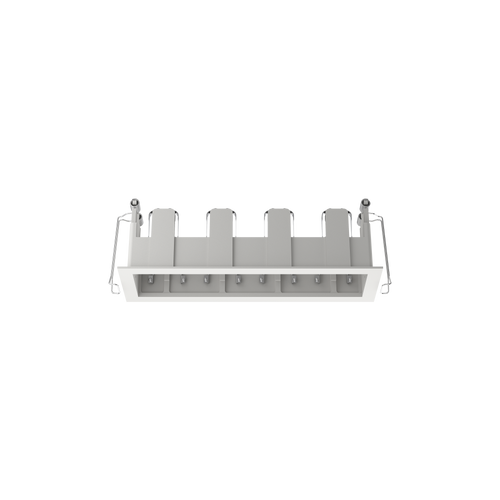

Cevon Type Recessed Rectangular Quad Frame for M41 White
Cut out
178 x 54mm

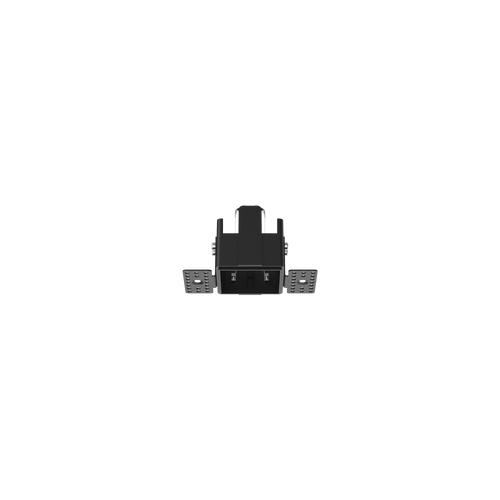

F41-TL-SQ
Cevon Type Trimless Square Frame for M41 Black
Cut out
56 x 54mm

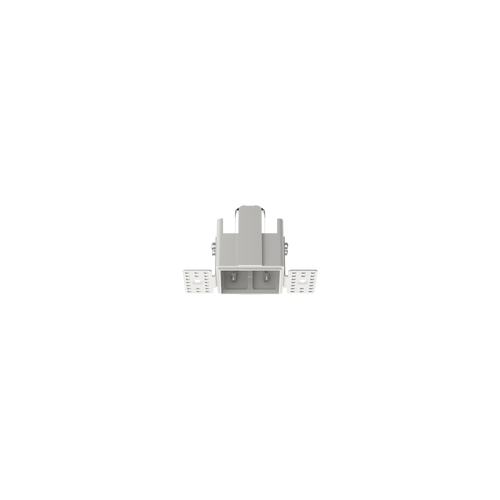

F41-TL-SQ
Cevon Type Trimless Square Frame for M41 White
Cut out
56 x 54mm
F41-TL-SQ2

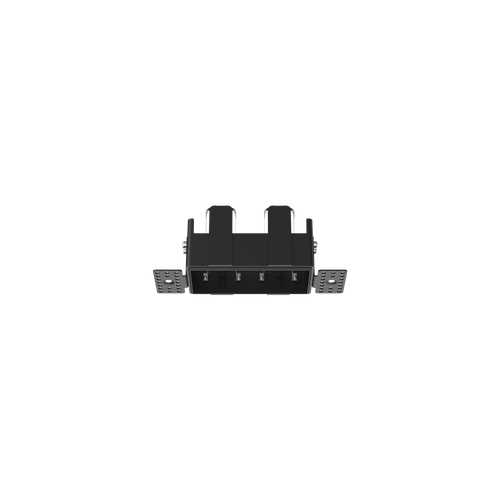

Cevon Type Trimless Rectangular Double Frame for M41 Black
Cut out
97x 54mm

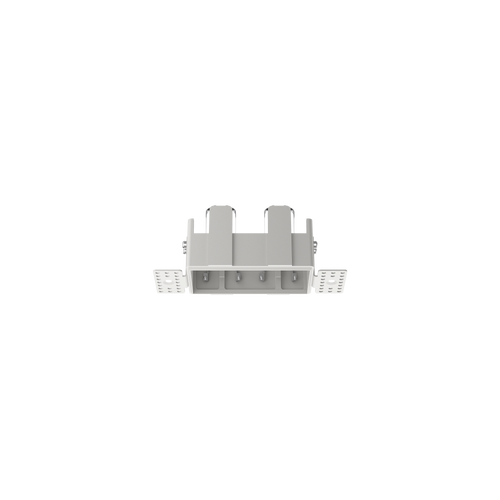

F41-TL-SQ2
Cevon Type Trimless Rectangular Double Frame for M41 White
Cut out
97x 54mm

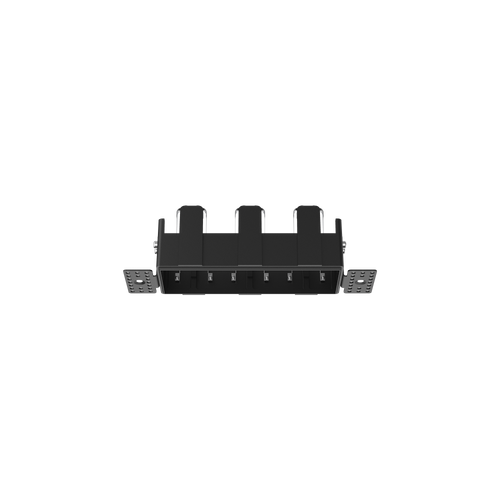

F41-TL-SQ3
Cevon Type Trimless Rectangular Triple Frame for M41 Black
Cut out
138 x 54mm
F41-TL-SQ3

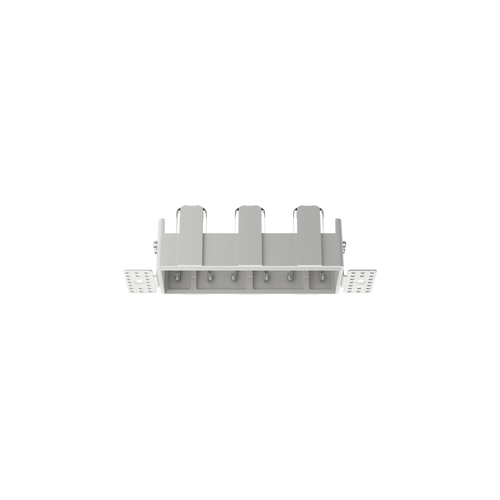

Cevon Type Trimless Rectangular Triple Frame for M41 White
Cut out
138 x 54mm
F41-TL-SQ4

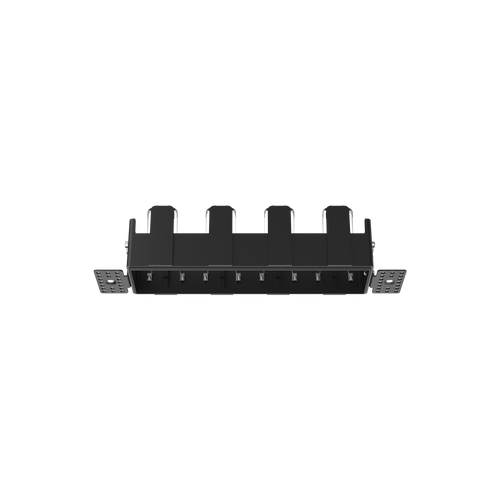

Cevon Type Trimless Rectangular Quad Frame for M41 Black
Cut out
179 x 54mm

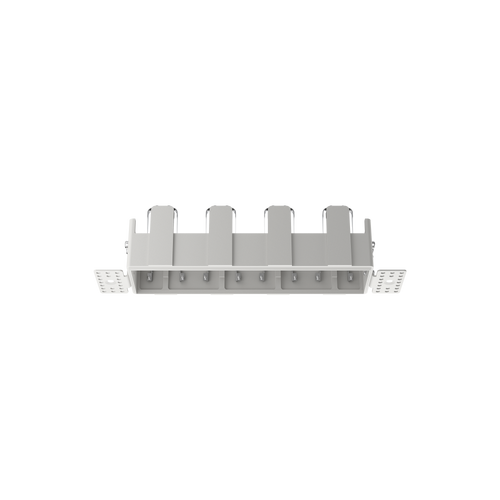

F41-TL-SQ4
Cevon Type Trimless Rectangular Quad Frame for M41 White
Cut out
179 x 54mm
Select driver
driver sold separately. Please select below.
Dimmable
DCC120200-DMS-5W8W
120-200mA 8W Constant Current Mini Slim Phase-Cut Dimmable Driver
Watts
8.4W (See Spec Sheet)
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
3.6W
Lumens
370lm
Beam Angle
36°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Height
80mm
Width
40mm
Length
40mm
Binning
SDCM 2
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
120mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
