EVO-EN-2385-B34K-DD
EVO-EN-2385
- Custom Build - Request Availability
EVO-EN-2385-B34K-DD EVO End 2385mm Black
View Options
-
EVO Ceiling Rose
-
EVO Individual Suspension
-
EVO Ceiling Mount (Pair)
-
EVO 90° L Join Black
-
EVO 120° Y Join Black
Select module
EVO-EN-2385

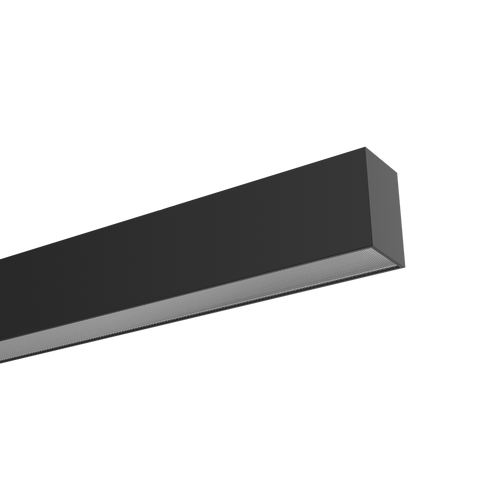

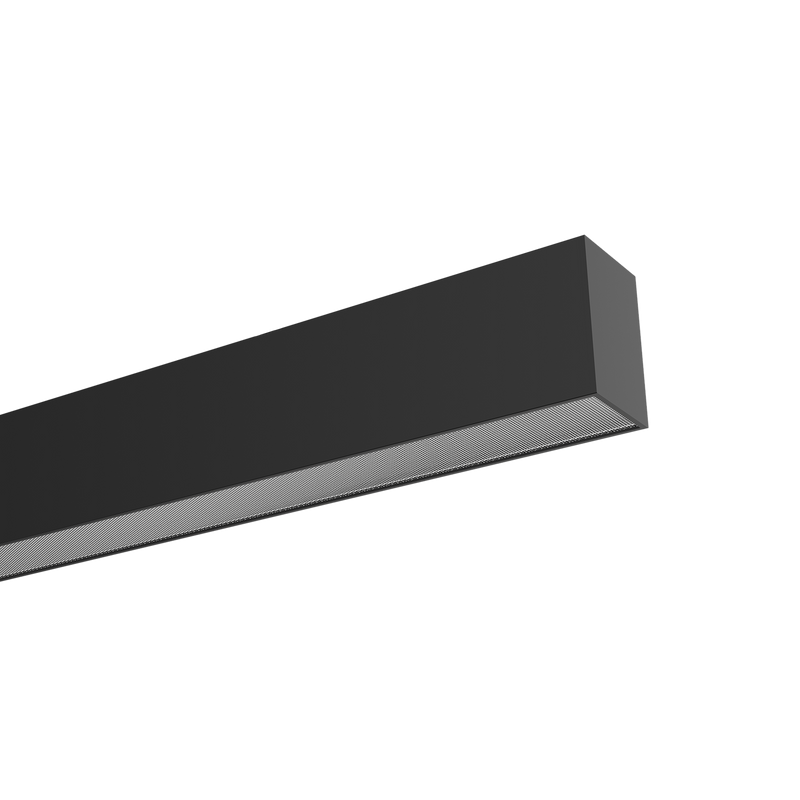

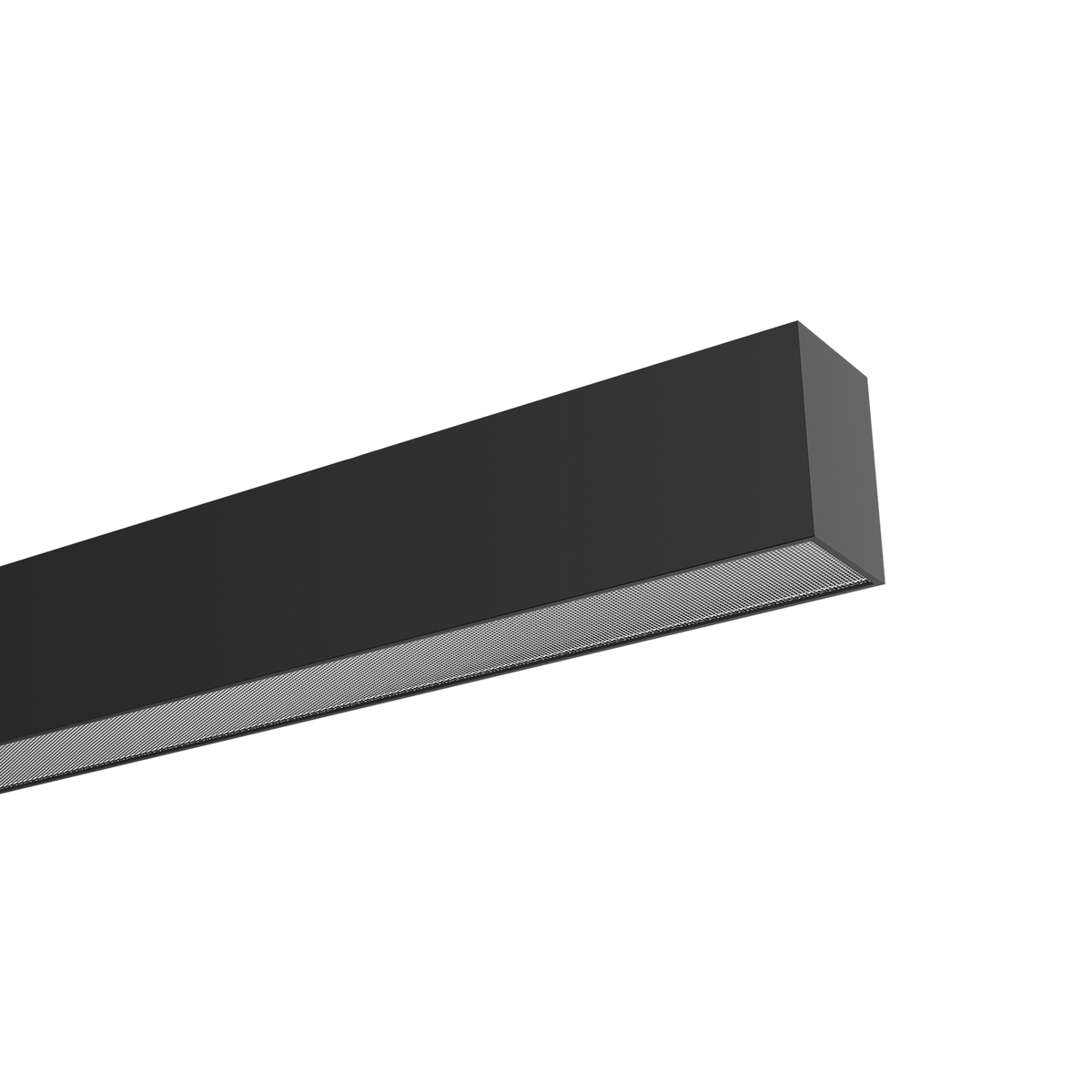

EVO End 2385mm Black
EVO-EN-2385

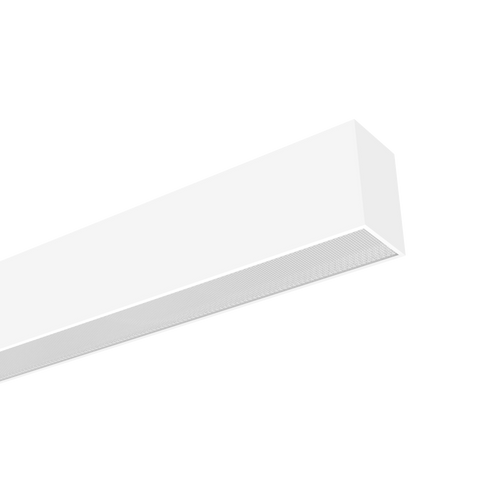

EVO End 2385mm White
Temp.
3000K or 4000K (Selectable)
Lumens
8610lm (See spec sheet)
Watts
82W
Specifications
Beam Angle
80° Direct (Down), 100° Indirect (Up)
Dimming / Control
3-in-1: Non-dimmable, Dali or SwitchDIM
Lifespan
102,000hrs (L80 B10)
Width
58mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Electrical Class
Class I luminaire, requires earth
Installation Note
Maximum continuous run length for a single power feed is 22m. Use a Middle Start (MST) module to extend continuous run length beyond 22m.
