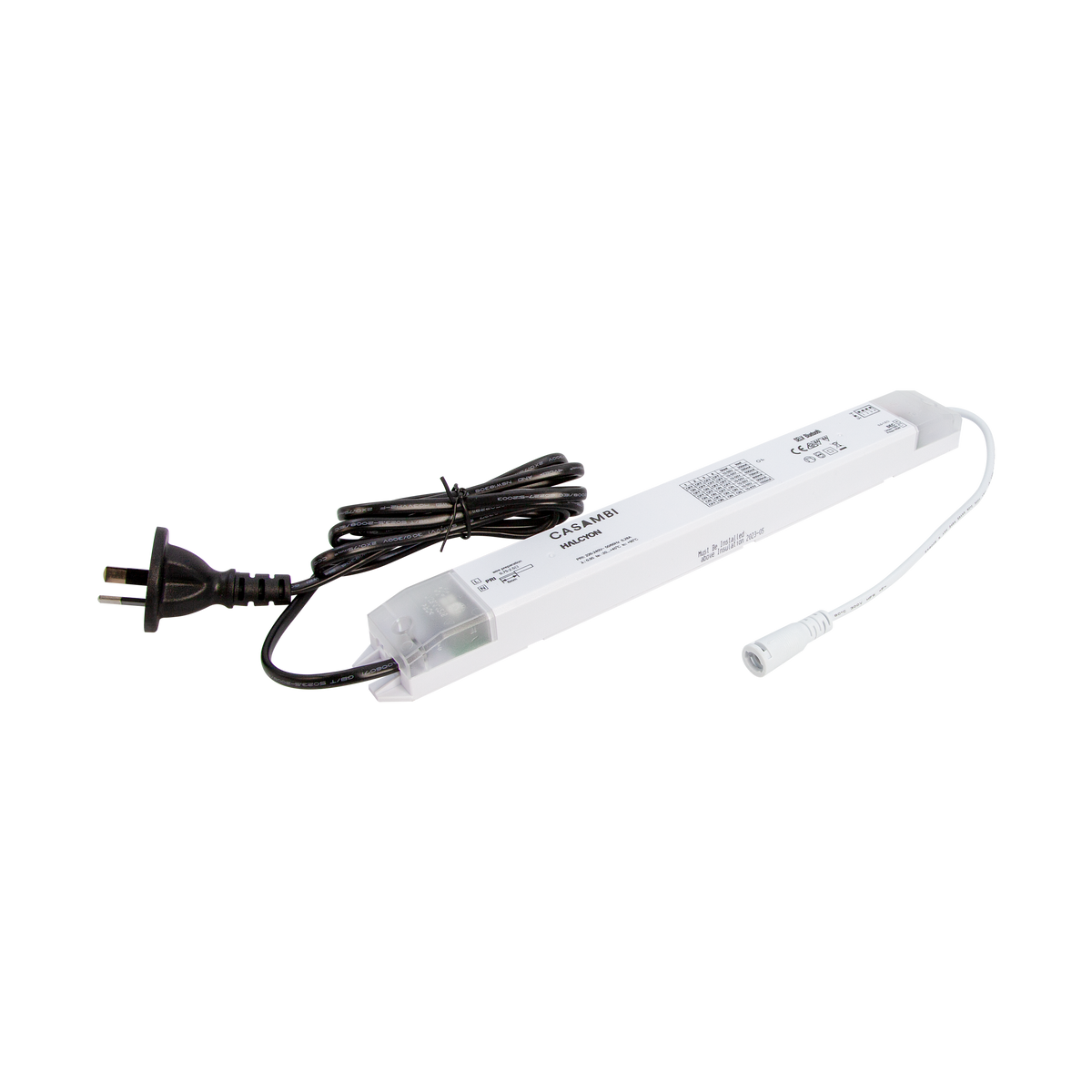

350-1050mA 45W Constant Current Casambi Driver

DCC3501050-CAS-1745W-PNL

All DCC3501050-CAS-1745W-PNL

DCC3501050-CAS-1745W-PNL

  • Checking stock...
Driver Casambi Pri:240V Sec:10-50V 350-1050mA CC 17.5-45W Standard c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Casambi
350-1050mA 45W Constant Current Casambi Driver

DCC3501050-CAS-1745W-PNL 350-1050mA 45W Constant Current Casambi Driver

Watts

17.5W-45W

Watts

17.5W-45W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

350-1050mA 45W Constant Current Casambi Driver

Casambi

DCC3501050-CAS-1745W-PNL

Watts

17.5W-45W

Input

220-240V 50/60Hz

Dimming / Control

Casambi

Ingress Protection

IP20

Height

24mm

Width

35mm

Length

320mm

Electrical Class

Class II

Driver Output Voltage

10-50V

Driver Output Current

Adjustable 350mA, 500mA, 600mA, 700mA, 800mA, 900mA, 1050mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
