M80 Series
M80-T3-W4K-45D
M80-T3
- Checking stock...

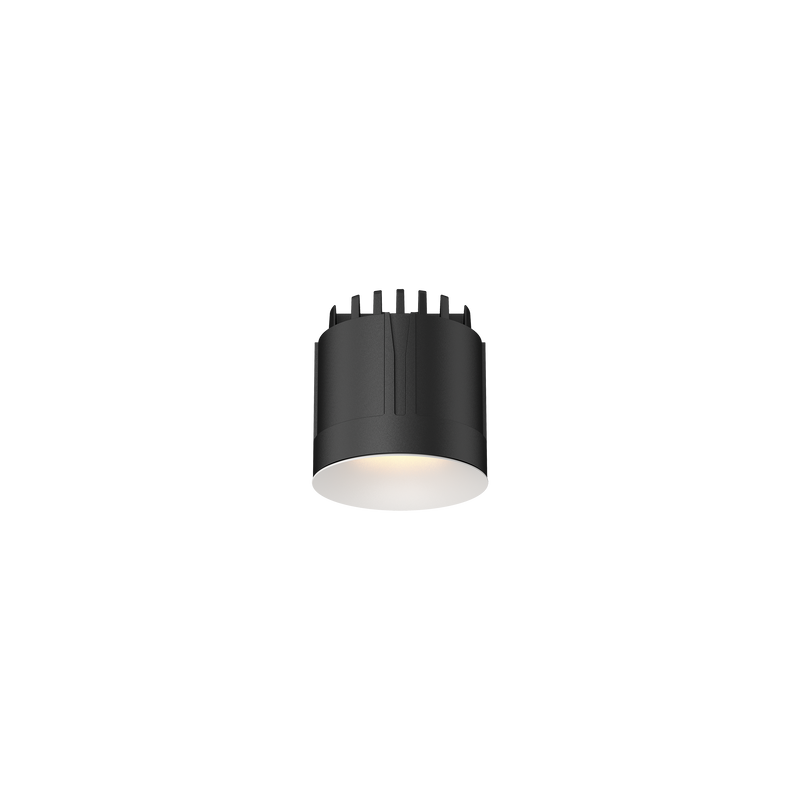

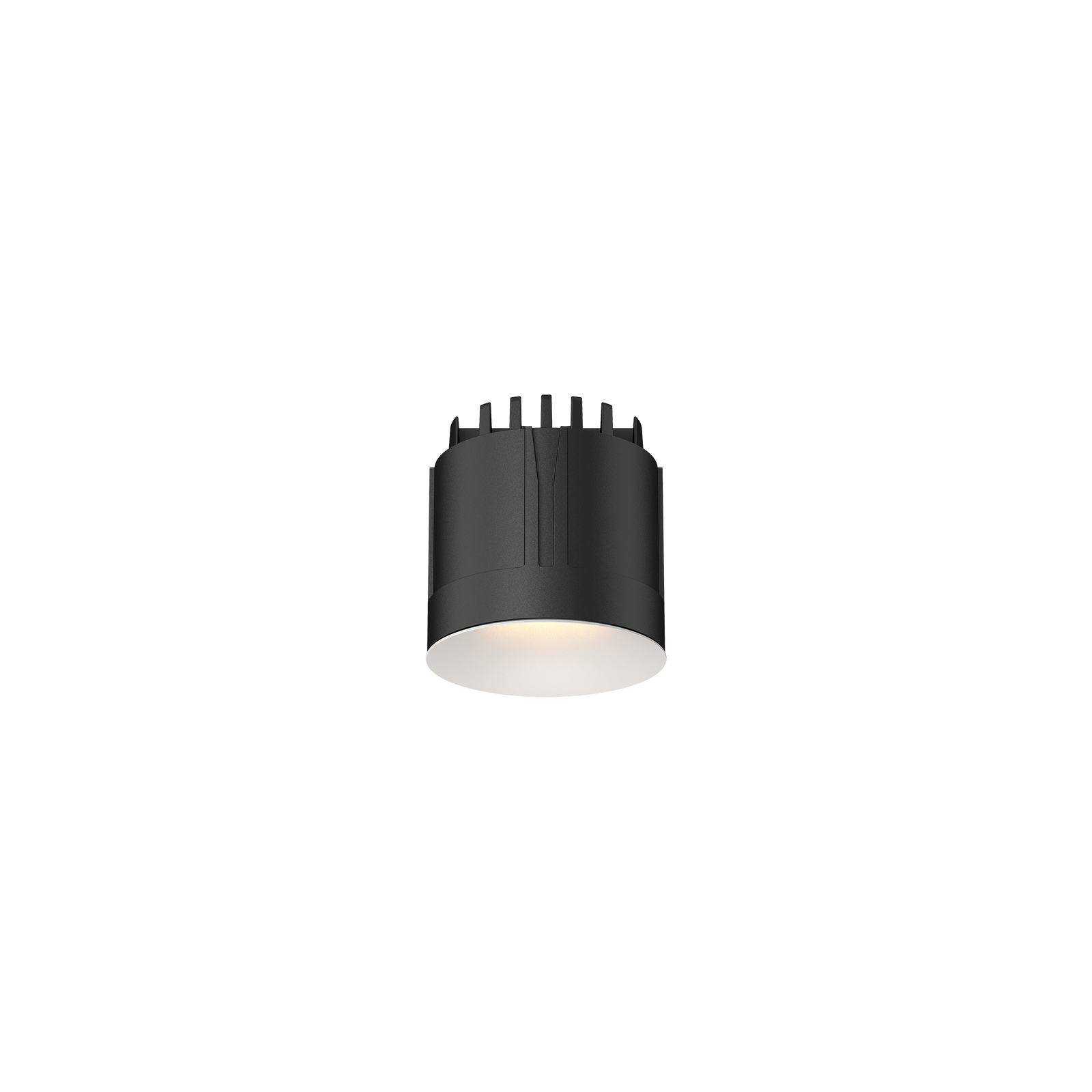

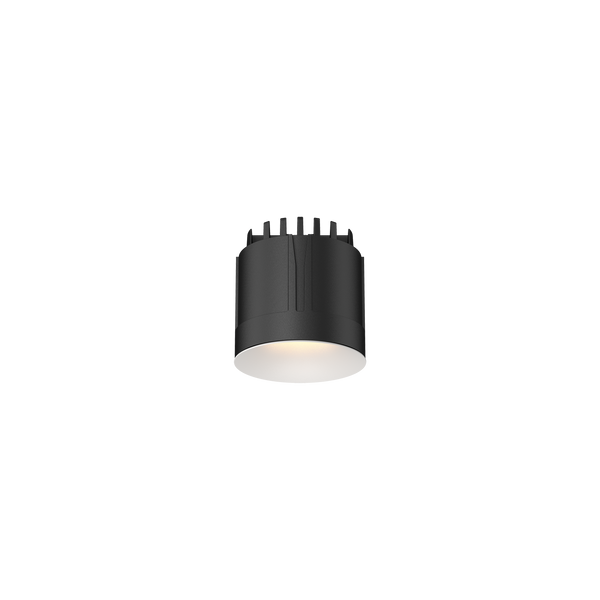

M80-T3-W4K-45D Cevon M80 Type 3 Dark Art Fixed White 4000K
Lumens
Watts
1100lm
12W
View Options
Add Frame
Frame not included
View Options
Add Driver
driver not included
View Options
Select Module
M80-T3
Cevon M80 Type 3 Dark Art Fixed White 4000K
Temp.
4000K Natural White
Lumens
1100lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed White 2700K
Temp.
2700K Warm White
Lumens
1000lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed White 3000K
Temp.
3000K Warm White
Lumens
1150lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Black 2700K
Temp.
2700K Warm White
Lumens
960lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Black 3000K
Temp.
3000K Warm White
Lumens
1110lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Black 4000K
Temp.
4000K Natural White
Lumens
1075lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Gold 2700K
Temp.
2700K Warm White
Lumens
960lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Gold 3000K
Temp.
3000K Warm White
Lumens
1110lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Gold 4000K
Temp.
4000K Natural White
Lumens
1075lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Silver 2700K
Temp.
2700K Warm White
Lumens
1000lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Silver 3000K
Temp.
3000K Warm White
Lumens
1150lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed Silver 4000K
Temp.
4000K Natural White
Lumens
1100lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
960lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1110lm
Watts
12W
M80-T3
Cevon M80 Type 3 Dark Art Fixed High Gloss Black 4000K
Temp.
4000K Natural White
Lumens
1110lm
Watts
12W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
12W
Lumens
1100lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
RAL Colour
RAL9003
Diameter
Ø78mm
Height
85mm
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Frame
None
Driver
None
