M80 Series
M80-T23
- Custom Build - Request Availability
Configure your M80-T23 27 options
- White
- White, Black
- White, Gold
- White, High Gloss Black
- White, Silver
- Black
- Black, Gold
- Black, High Gloss Black (selected)
- Black, Silver

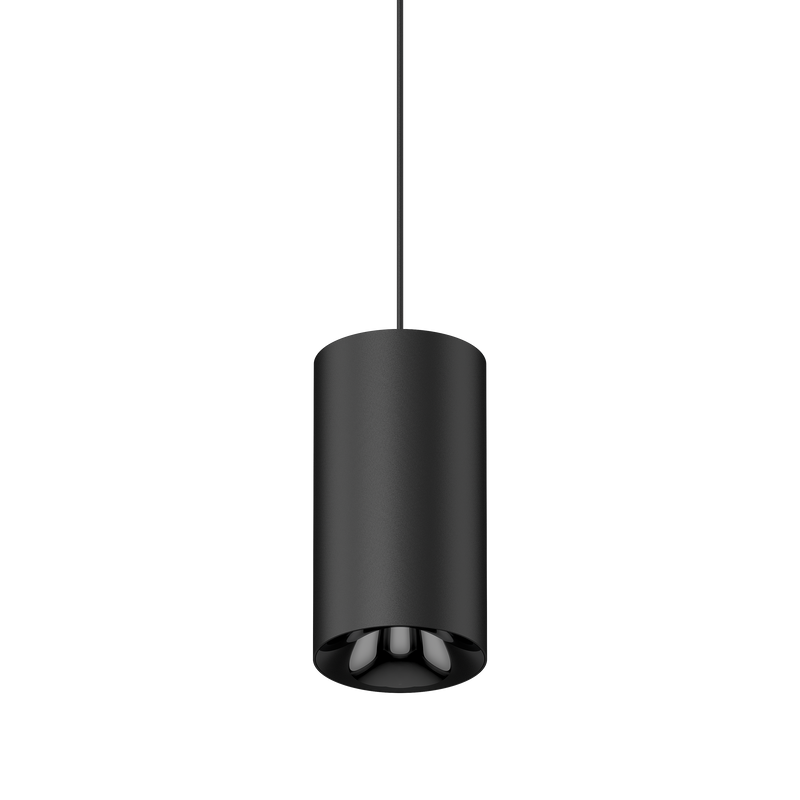

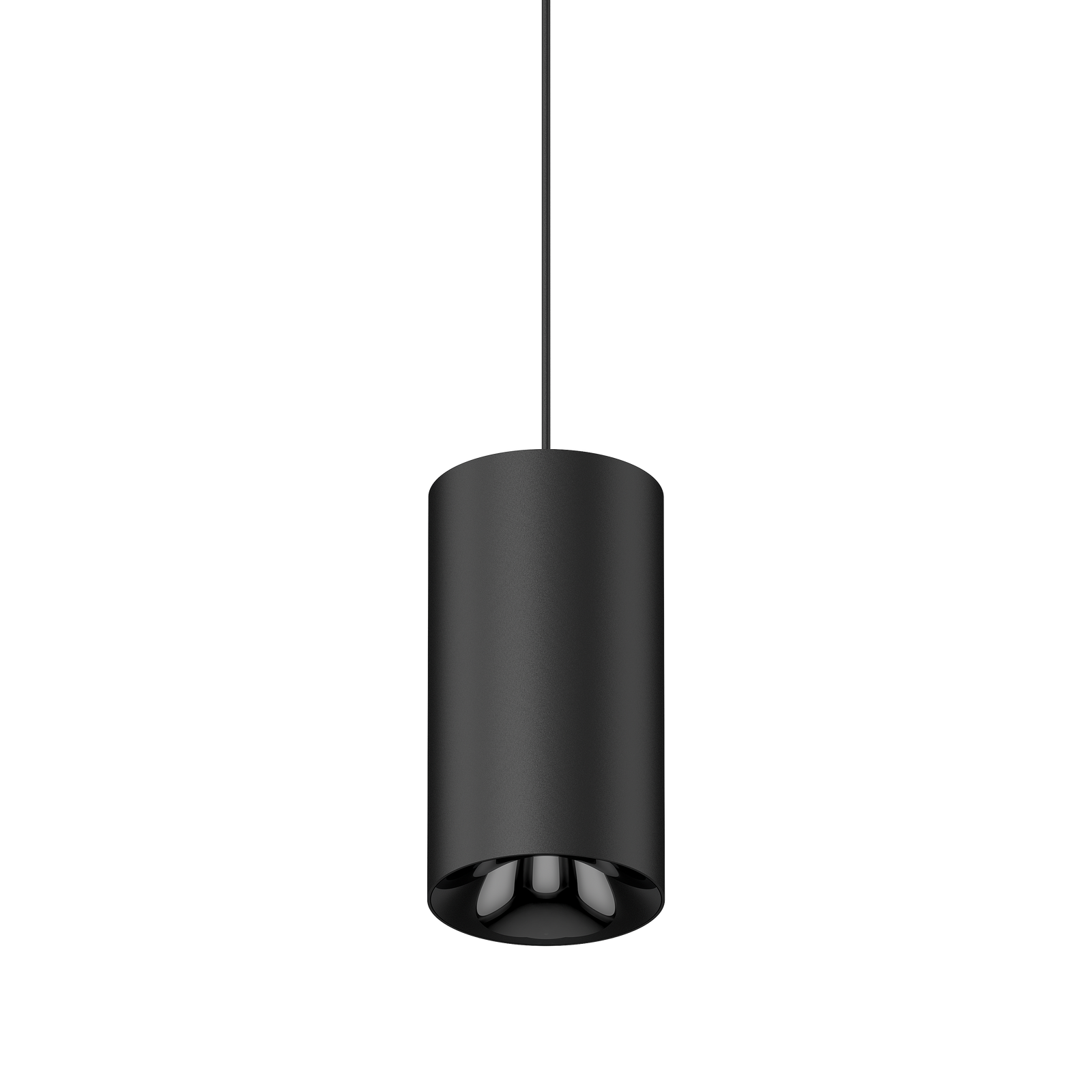

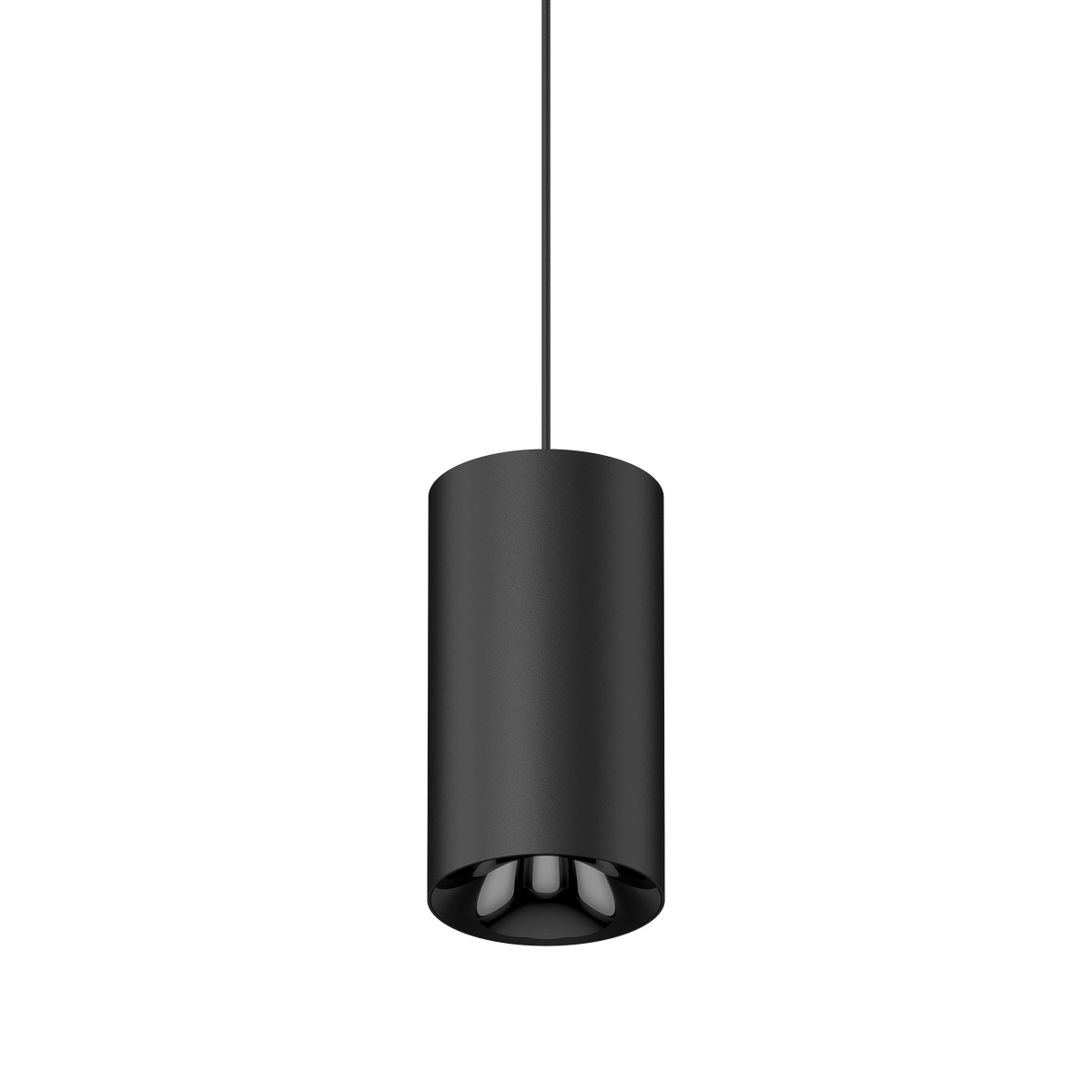

M80-T23-BHGB27K-45D Cevon M80 Type 23 Dark Art Pendant Spot Black, High Gloss Black 2700K
Lumens
Watts
1265lm
17W
Not included
Please select from options
Not included
Please select from options
Select Module
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White 2700K
Temp.
2700K Warm White
Lumens
1355lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White 3000K
Temp.
3000K Warm White
Lumens
1430lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White 4000K
Temp.
4000K Natural White
Lumens
1430lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Black 2700K
Temp.
2700K Warm White
Lumens
1265lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Black 3000K
Temp.
3000K Warm White
Lumens
1370lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Black 4000K
Temp.
4000K Natural White
Lumens
1330lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Gold 2700K
Temp.
2700K Warm White
Lumens
1265lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Gold 3000K
Temp.
3000K Warm White
Lumens
1370lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Gold 4000K
Temp.
4000K Natural White
Lumens
1330lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
1265lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1370lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, High Gloss Black 4000K
Temp.
4000K Natural White
Lumens
1330lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Silver 2700K
Temp.
2700K Warm White
Lumens
1355lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Silver 3000K
Temp.
3000K Warm White
Lumens
1430lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot White, Silver 4000K
Temp.
4000K Natural White
Lumens
1420lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black 2700K
Temp.
2700K Warm White
Lumens
1265lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black 3000K
Temp.
3000K Warm White
Lumens
1370lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black 4000K
Temp.
4000K Natural White
Lumens
1330lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, Gold 2700K
Temp.
2700K Warm White
Lumens
1265lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, Gold 3000K
Temp.
3000K Warm White
Lumens
1370lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, Gold 4000K
Temp.
4000K Natural White
Lumens
1330lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
1265lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1370lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, High Gloss Black 4000K
Temp.
4000K Natural White
Lumens
1330lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, Silver 2700K
Temp.
2700K Warm White
Lumens
1355lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, Silver 3000K
Temp.
3000K Warm White
Lumens
1430lm
Watts
17W
M80-T23
Cevon M80 Type 23 Dark Art Pendant Spot Black, Silver 4000K
Temp.
4000K Natural White
Lumens
1420lm
Watts
17W
Select Frame
Frame sold separately. Please select below.
F80-RR
Cevon Type Recessed Round Frame for M80 Black
Cut out
Ø95mm
F80-RR
Cevon Type Recessed Round Frame for M80 White
Cut out
Ø95mm
F80-RR2
Cevon Recessed Oval Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RR2
Cevon Recessed Oval Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-RSQ
Cevon Recessed Square Frame for M80 Black
Cut out
Ø95mm
F80-RSQ
Cevon Recessed Square Frame for M80 White
Cut out
Ø95mm
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 Black
Cut out
2xØ95mm @ 90mm centres
F80-RSQ2
Cevon Recessed Rectangular Double Frame for M80 White
Cut out
2xØ95mm @ 90mm centres
F80-TL
Cevon Type Trimless Frame for M80 White
Cut out
Ø130mm
SF80-RR
Cevon Type Surface Cylinder for M80 Black
SF80-RR
Cevon Type Surface Cylinder for M80 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC500-DX-20W
500mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC260700-CAS-1325W
260-700mA 25W Constant Current Casambi Driver
Watts
13W-25W
Specifications
M80-T23-BHGB27K-45D
Finish
Black, High Gloss Black
Colour Temp
2700K Warm White
Watts
17W
Lumens
1265lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
RAL Colour
RAL9003
Diameter
75mm
Length
<2m (Adjustable)
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
500mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
Specifications
M80-T23-BHGB27K-45D
Specifications
None
Resources
