M60 Series
M60-T23
- Custom Build - Request Availability
Configure your M60-T23 18 options
- White
- White, Black
- White, Gold
- White, High Gloss Black
- White, Silver
- Black
- Black, Gold (selected)
- Black, High Gloss Black
- Black, Silver

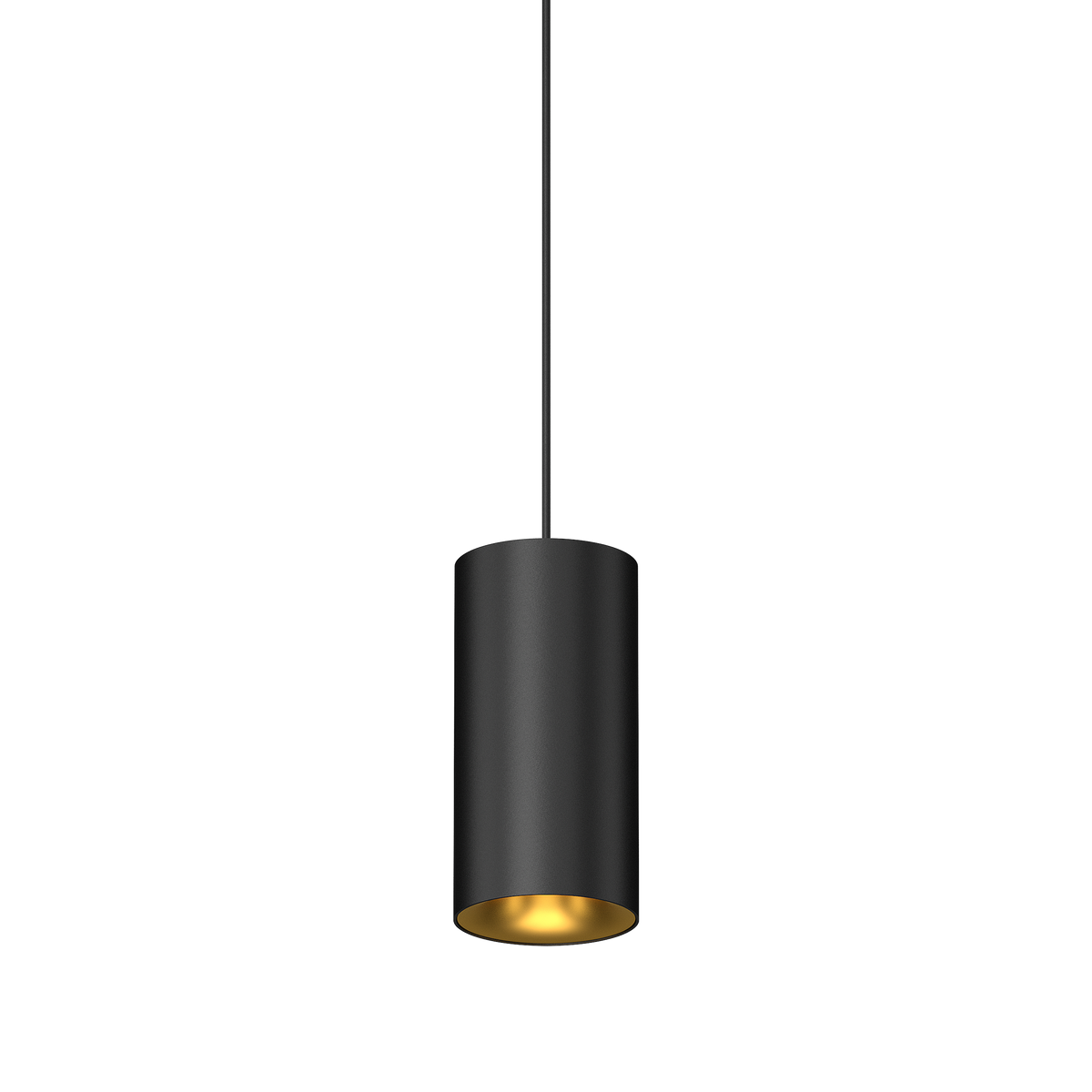

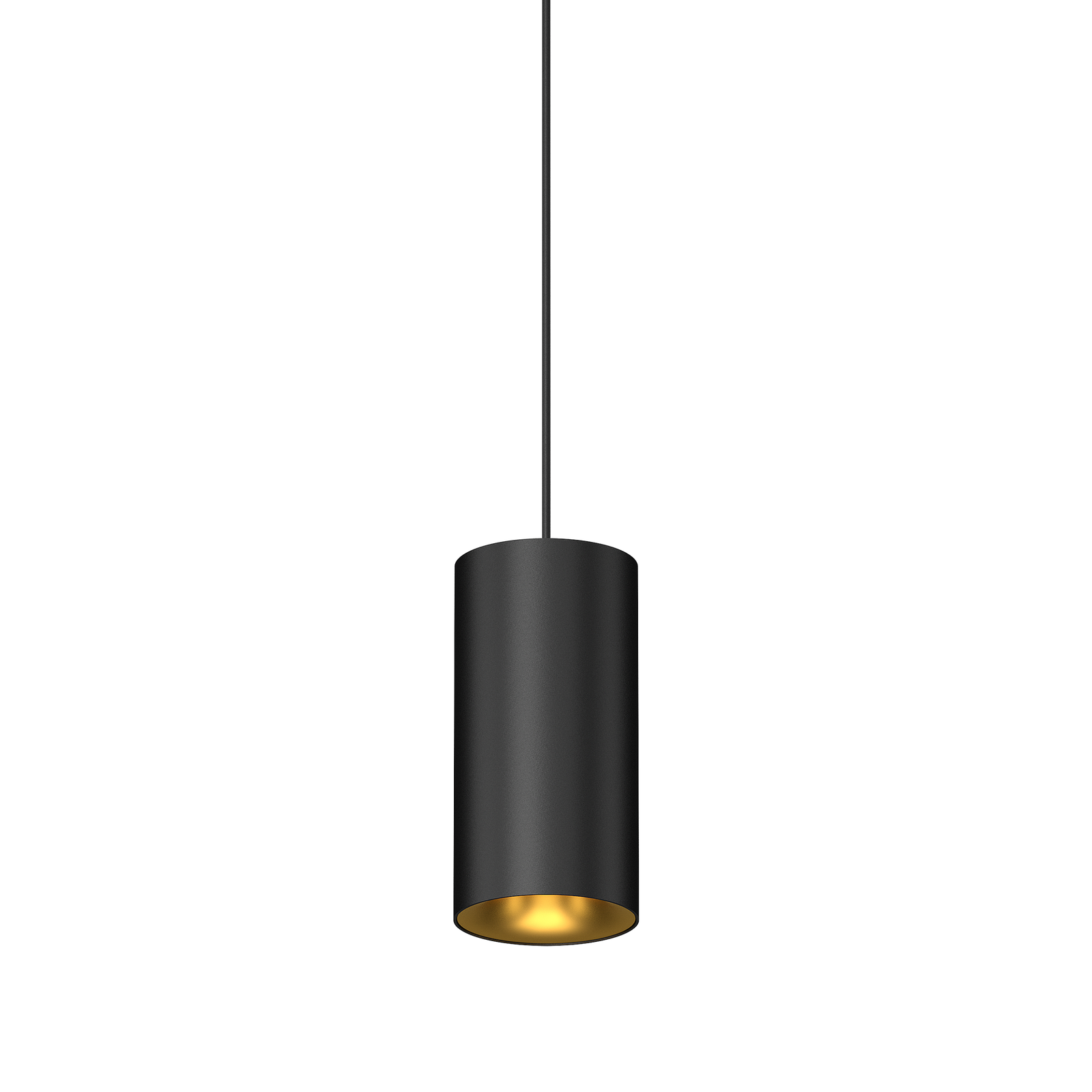

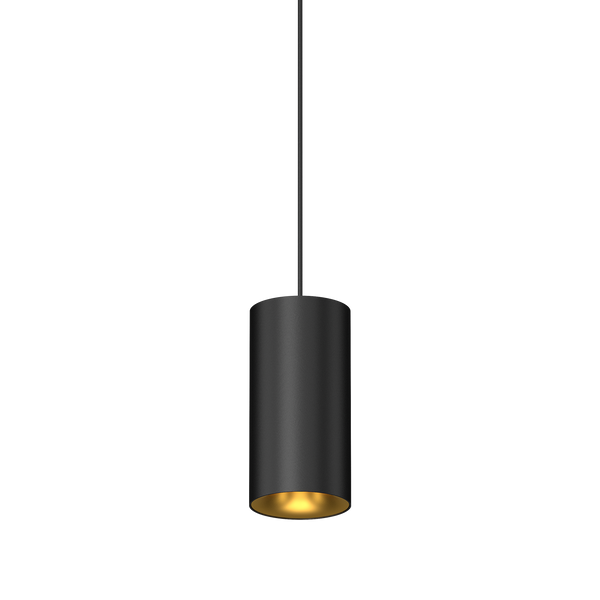

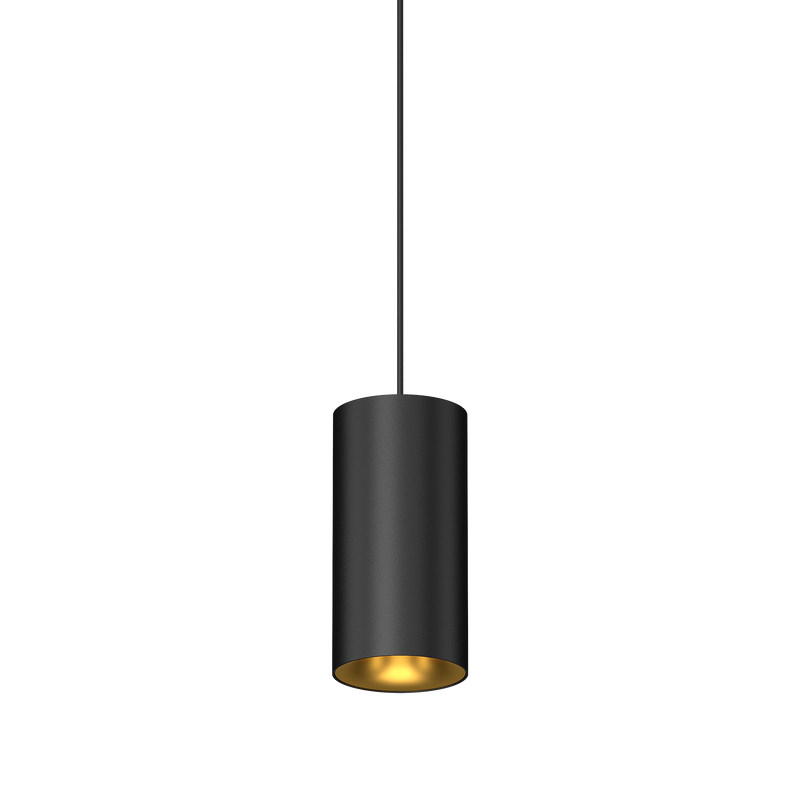

M60-T23-BG27K-45D Cevon M60 Type 23 Dark Art Pendant Spot Black, Gold 2700K
Lumens
Watts
930lm
12W
Not included
Please select from options
Not included
Please select from options
Select Module
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White 2700K
Temp.
2700K Warm White
Lumens
975lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White 3000K
Temp.
3000K Warm White
Lumens
1035lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, Black 2700K
Temp.
2700K Warm White
Lumens
930lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, Black 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, Gold 2700K
Temp.
2700K Warm White
Lumens
930lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, Gold 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
930lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, Silver 2700K
Temp.
2700K Warm White
Lumens
975lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot White, Silver 3000K
Temp.
3000K Warm White
Lumens
1035lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black 2700K
Temp.
2700K Warm White
Lumens
930lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black, Gold 2700K
Temp.
2700K Warm White
Lumens
930lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black, Gold 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black, High Gloss Black 2700K
Temp.
2700K Warm White
Lumens
930lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black, High Gloss Black 3000K
Temp.
3000K Warm White
Lumens
1020lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black, Silver 2700K
Temp.
2700K Warm White
Lumens
975lm
Watts
12W
M60-T23
Cevon M60 Type 23 Dark Art Pendant Spot Black, Silver 3000K
Temp.
3000K Warm White
Lumens
1035lm
Watts
12W
Select Frame
Frame sold separately. Please select below.
F60-RR
Cevon Type Recessed Round Frame for M60 Black
Cut out
Ø75mm
F60-RR
Cevon Type Recessed Round Frame for M60 White
Cut out
Ø75mm
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RR2
Cevon Type Recessed Oval Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-RSQ
Cevon Type Recessed Square Frame for M60 Black
Cut out
Ø75mm
F60-RSQ
Cevon Type Recessed Square Frame for M60 White
Cut out
Ø75mm
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 Black
Cut out
2xØ75mm @72mm centres
F60-RSQ2
Cevon Type Recessed Rectangular Double Frame for M60 White
Cut out
2xØ75mm @72mm centres
F60-TL
Cevon Type Trimless Frame for M60 White
Cut out
Ø105mm
Cevon Type Surface Cylinder for M60 Black
Cevon Type Surface Cylinder for M60 White
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Dali
DCC260700-DD-1625W
260-700mA 25W Constant Current Dali Driver
Watts
16W-25W
Casambi
DCC150500-CAS-712W
150-500mA 12W Constant Current Casambi Driver
Watts
7.5W-12W
Specifications
M60-T23-BG27K-45D
Finish
Black, Gold
Colour Temp
2700K Warm White
Watts
12W
Lumens
930lm
Beam Angle
45°
Dimming / Control
Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Diameter
60mm
Length
<2m (Adjustable)
Binning
SDCM 2
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver
Not included, Driver sold separately
Warranty
5 Year Warranty
