R252-W34KA-CAS
R252
- Custom Build - Request Availability

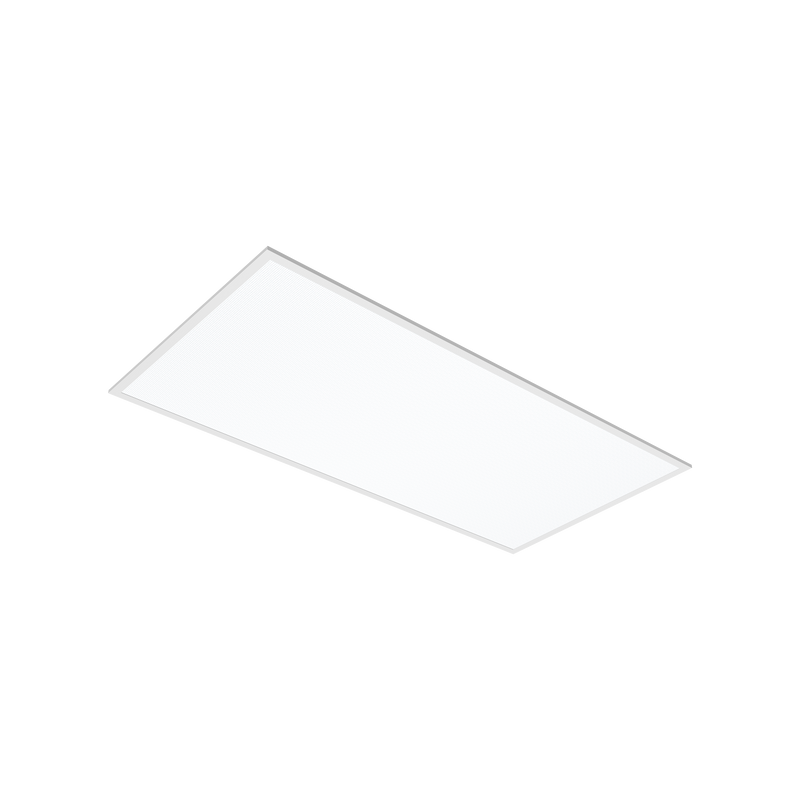

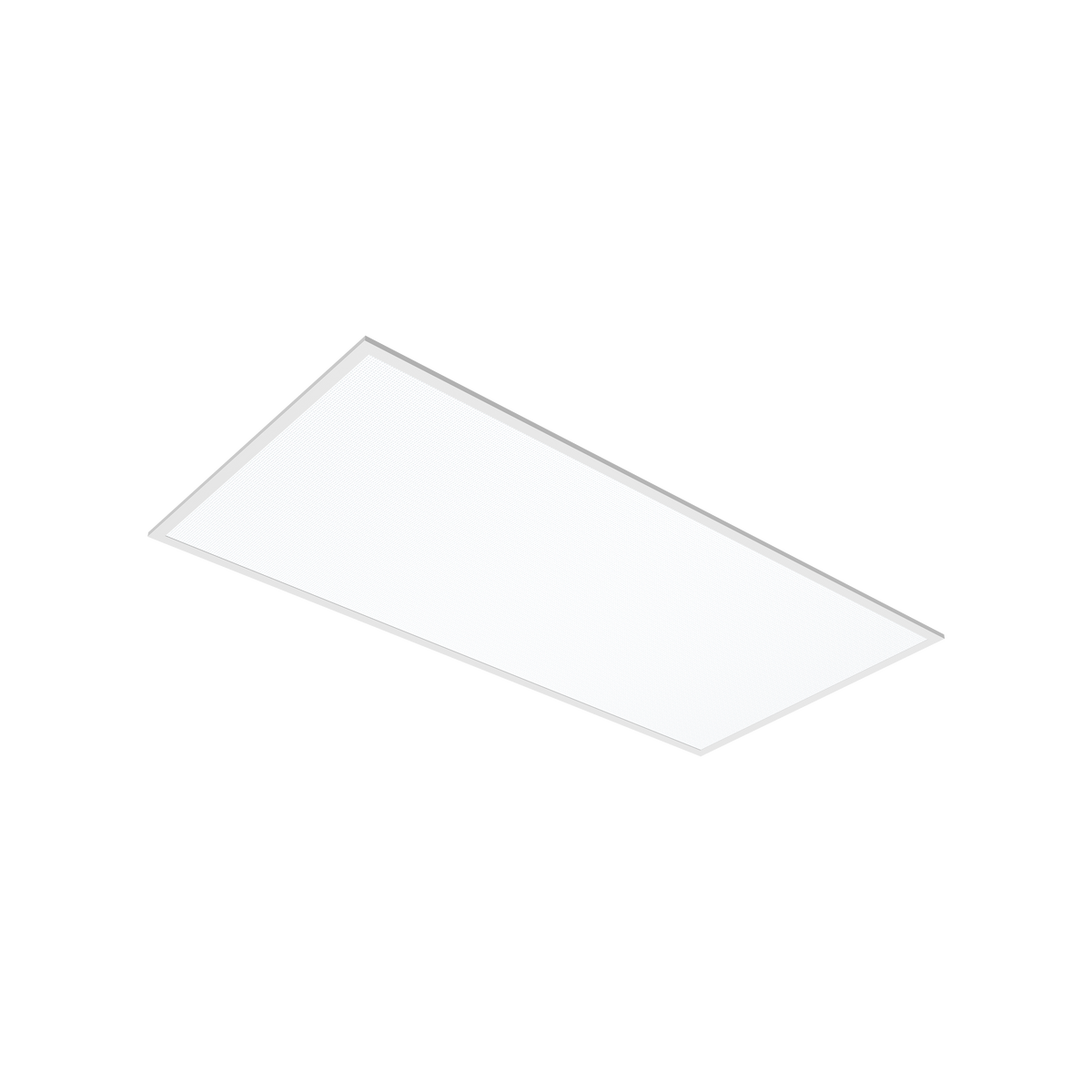

R252-W34KA-CAS 12x6 Casambi Proline Panel V2 - 3K/4K White
Lumens
Watts
5520lm
46W
View Options
-
12x6 Surface Mount Kit White
-
12x6 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R252
12x6 Casambi Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
5520lm
Watts
46W
R252
12x6 Standard Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
3300lm, 4250lm, 4880lm or 5520lm (Selectable)
Watts
26W, 34W, 40W or 46W
R252
12x6 Standard Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
3300lm, 4250lm, 4880lm or 5520lm (Selectable)
Watts
26W, 34W, 40W or 46W
R252
12x6 Dimmable Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4880lm
Watts
40W
R252
12x6 Dimmable Proline Panel V2 - 4K/57K White
Temp.
4000K, 5000K or 5700K (Selectable)
Lumens
4880lm
Watts
40W
R252
12x6 Dali Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
Watts
39-60W
R252
12x6 Dali Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4760lm, 5160lm, 5480lm, 5870lm, 6290lm, 6600lm or 6980lm (Selectable)
Watts
39-60W
R252
12x6 Casambi Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
5520lm
Watts
46W
R252
12x6 High Output Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
6980lm
Watts
60W
R252
12x6 High Output Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
6980lm
Watts
60W
R252

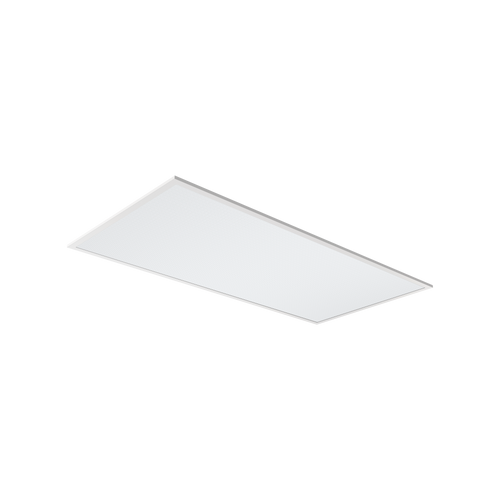

12x6 Proline Backlit Panel Casambi White 2700-6500K Tunable White
Temp.
2700K to 6500K (Tunable White)
Lumens
6200lm
Watts
52W
R252

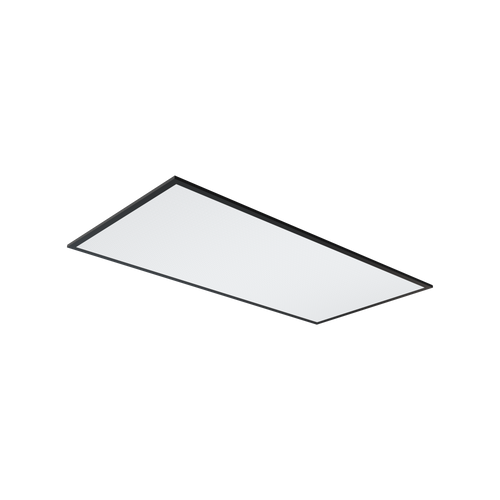

12x6 Proline Select Backlit Panel 40-56W Black 4000K
Temp.
4000K Natural White
Lumens
4700lm, 5300lm, 5600lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 56W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
46W
Lumens
5520lm
Beam Angle
90°
Input
220-240V 50/60Hz
Dimming / Control
Casambi
CRI
90
Lifespan
60,000hrs (L80 B10)
RAL Colour
RAL9016
Height
34mm
Width
595mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
