R251-W457KA
R251
- Checking stock...

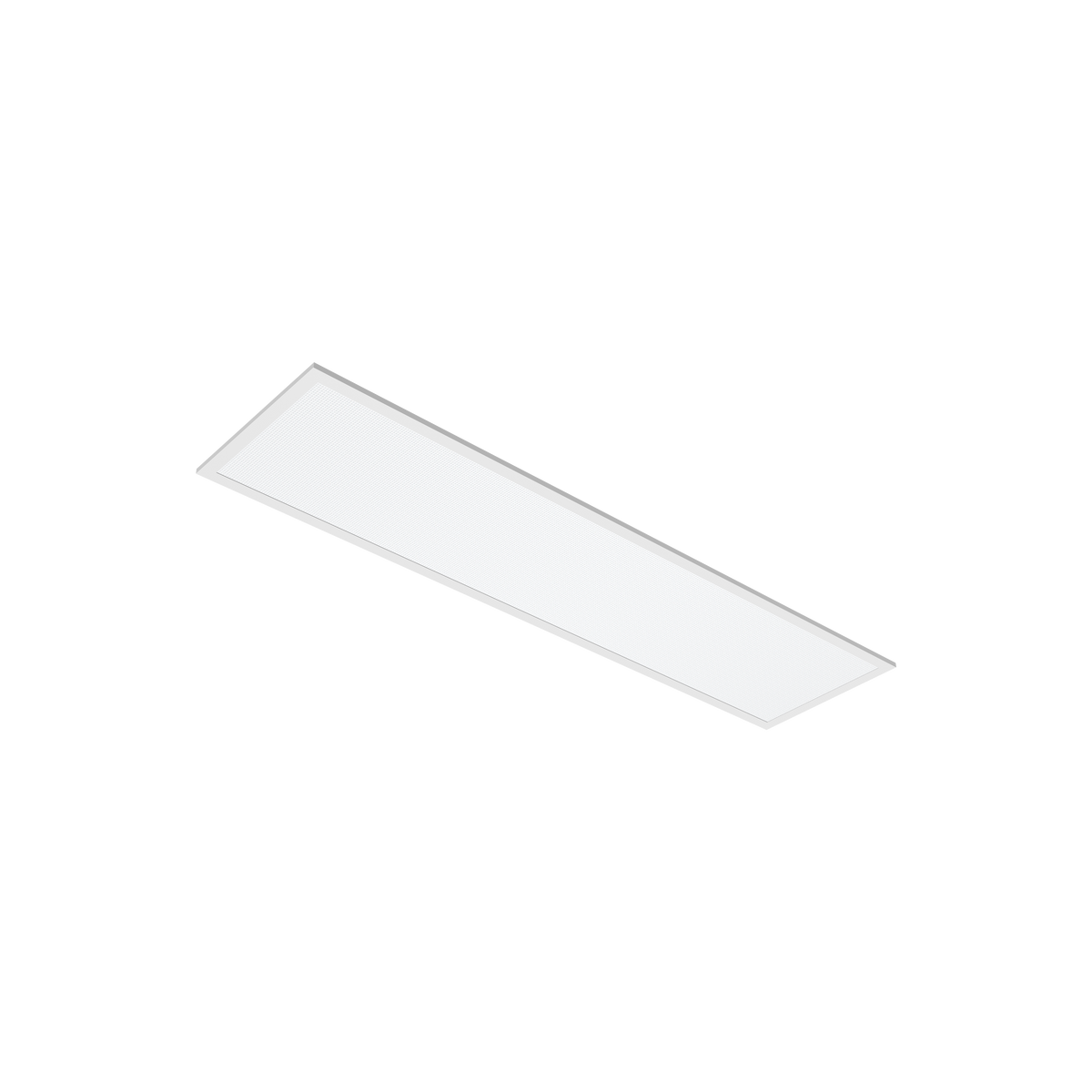

R251-W457KA 12x3 Standard Proline Panel V2 - 4K/57K White
Lumens
Watts
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
25W, 29W, 33W or 36W
View Options
-
12x3 Surface Mount Kit White
-
12x3 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Jump to
Select Panels
R251
12x3 Standard Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
R251
12x3 Standard Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
R251
12x3 Dimmable Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
R251
12x3 Dimmable Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
R251
12x3 Dali Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
R251
12x3 Dali Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
R251
12x3 Casambi Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4350lm
Watts
43W
R251
12x3 Casambi Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4350lm
Watts
43W
R251
12x3 1-10V Proline Panel V2 - 3K/4K White
Temp.
3000K or 4000K (Selectable)
Lumens
4095lm
Watts
39W
R251
12x3 1-10V Proline Panel V2 - 4K/57K White
Temp.
4000K or 5700K (Selectable)
Lumens
4095lm
Watts
39W
R251

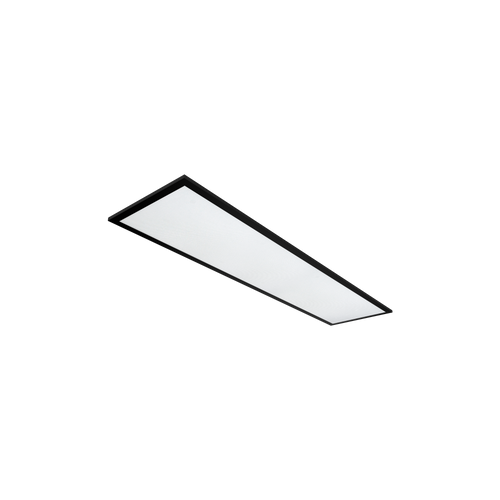

12x3 Proline Select Backlit Panel 27-42W Black 4000K
Temp.
4000K Natural White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
R251

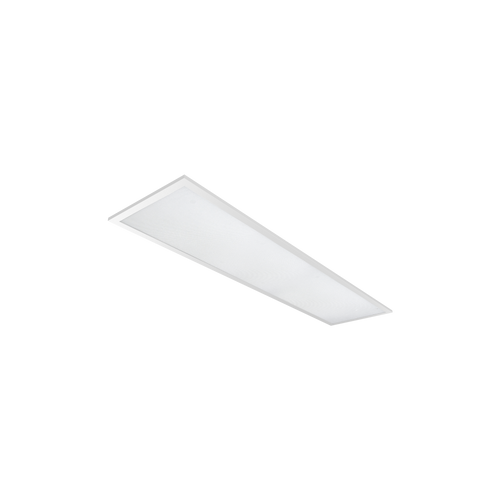

12x3 Proline Select Backlit Panel 27-42W White 6000K
Temp.
6000K Cool White
Lumens
2800lm, 3400lm, 3500lm or 4000lm (Selectable)
Watts
27W, 33W, 36W or 42W
Specifications
Finish
White
Colour Temp
4000K or 5700K (Selectable)
Watts
25W, 29W, 33W or 36W
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Beam Angle
90°
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP44 (IP20 Rear)
RAL Colour
RAL9016
Height
33mm
Width
295mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II
Driver Output Current
Selectable 650-930mA
Driver
Included, Remote
Ambient Operating Temperature
-20..+40°C
Power Factor
0.90
Warranty
5 Year Warranty
