R251-W34KA
R251
- Checking stock...

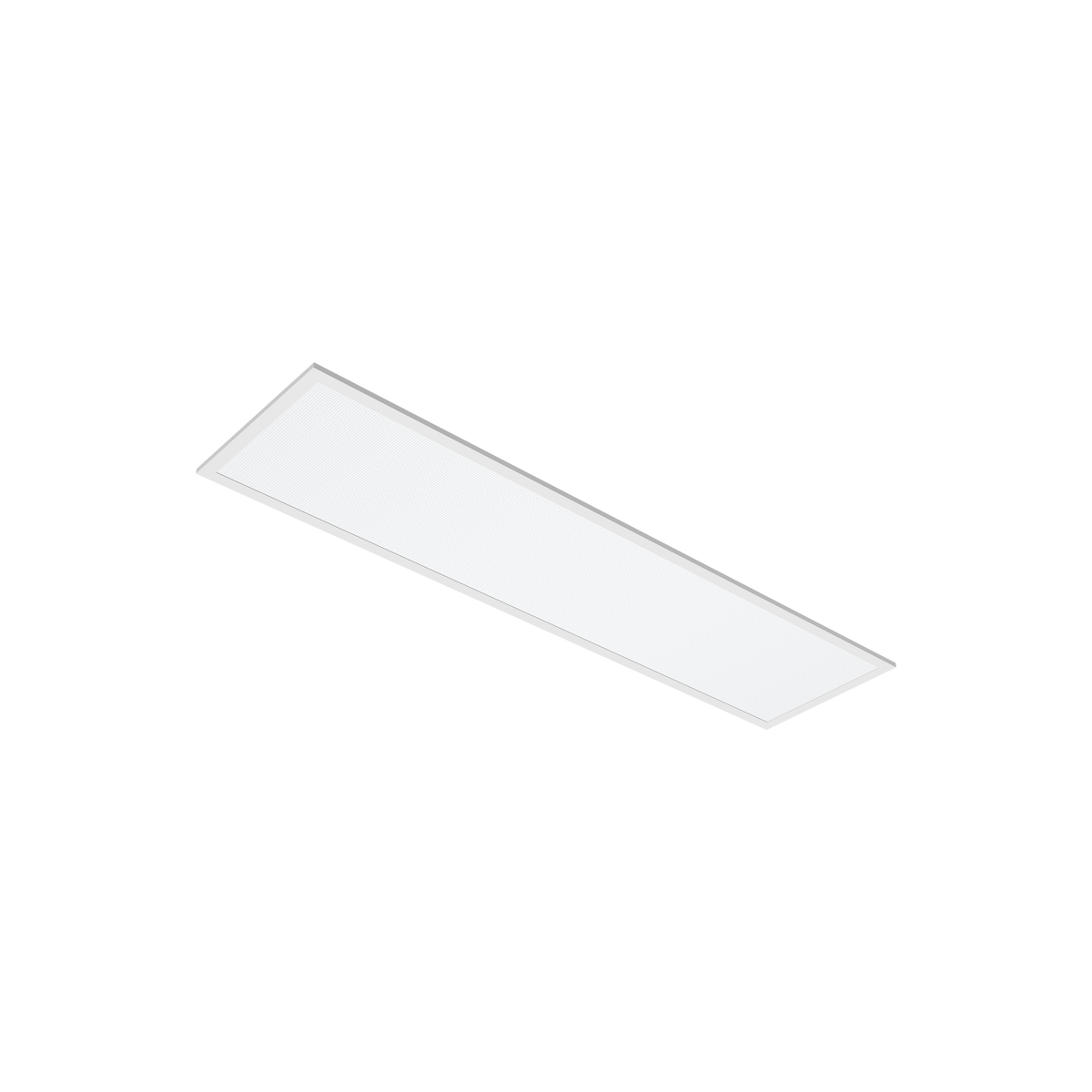

R251-W34KA 12x3 Proline panel V2 - 3K/4K Standard White
Lumens
Watts
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
25W, 29W, 33W or 36W
View Options
-
12x3 Surface Mount Kit White
-
12x3 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R251
12x3 Proline panel V2 - 3K/4K Standard White
Temp.
3000K or 4000K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
R251
12x3 Proline panel V2 - 4K/57K Standard White
Temp.
4000K or 5700K (Selectable)
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Watts
25W, 29W, 33W or 36W
Specifications
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
25W, 29W, 33W or 36W
Lumens
2800lm, 3190lm, 3560lm or 3810lm (Selectable)
Beam Angle
90°
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
CRI
90
Lifespan
60,000hrs (L80 B10)
Ingress Protection
IP44 (IP20 Rear)
RAL Colour
RAL9016
Height
33mm
Width
295mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
UGR
Suitable for installations requiring UGR of less than 19
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PS
Electrical Class
Class II
Driver Output Current
Selectable 650-930mA
Driver Included / Incorporated
Driver Included
Ambient Operating Temperature
-20..+40°C
Power Factor
0
Warranty
5 Year Warranty
