DCC1050-D-50W
DCC1050-D-50W
- Checking stock...
Driver Phase-Cut Dimmable Pri:240V Sec:24-48V DC 1050mA CC 25.2-50W
Dimmable (phase-cut)

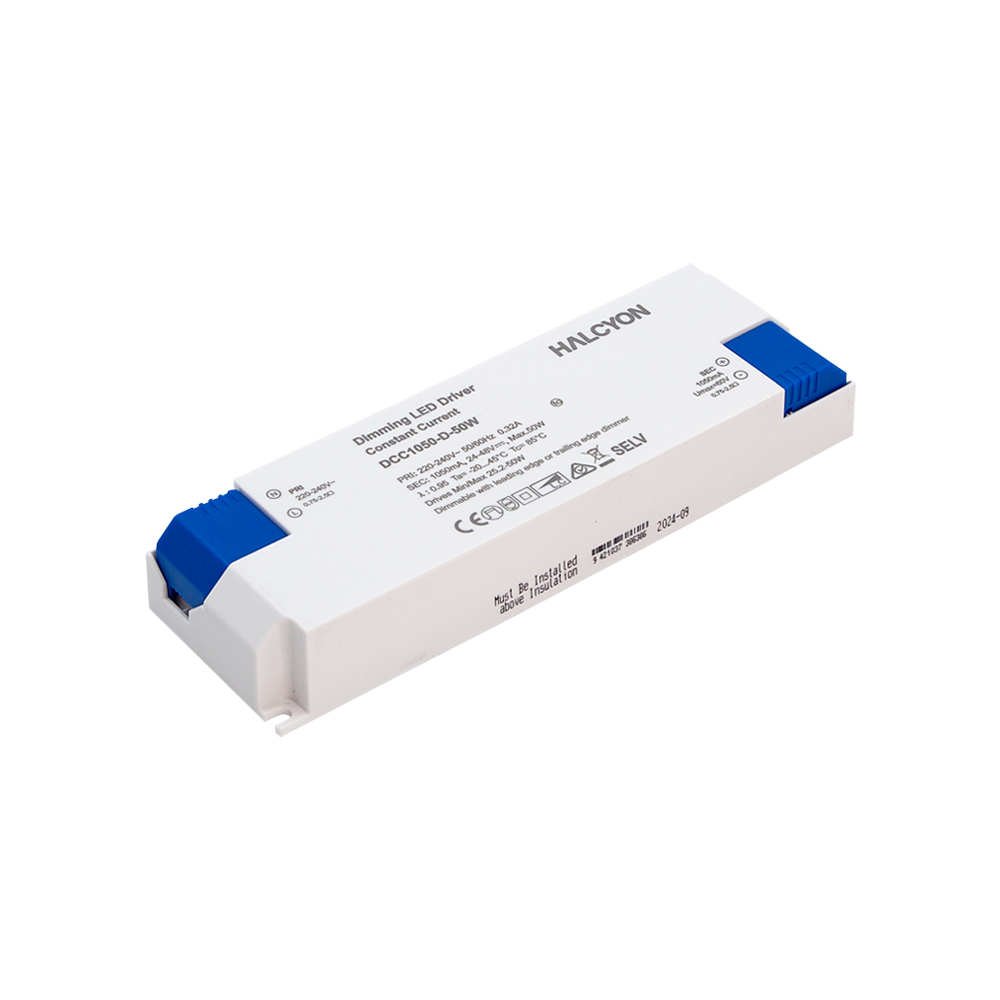

DCC1050-D-50W 1050mA 50W Constant Current Phase-cut Dimmable Driver
Watts
25.2W-50W
Watts
25.2W-50W
Specifications
Watts
25.2W-50W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
24-48V
Driver Output Current
1050mA
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
