LED615
- Checking stock...
Configure your LED615 4 options

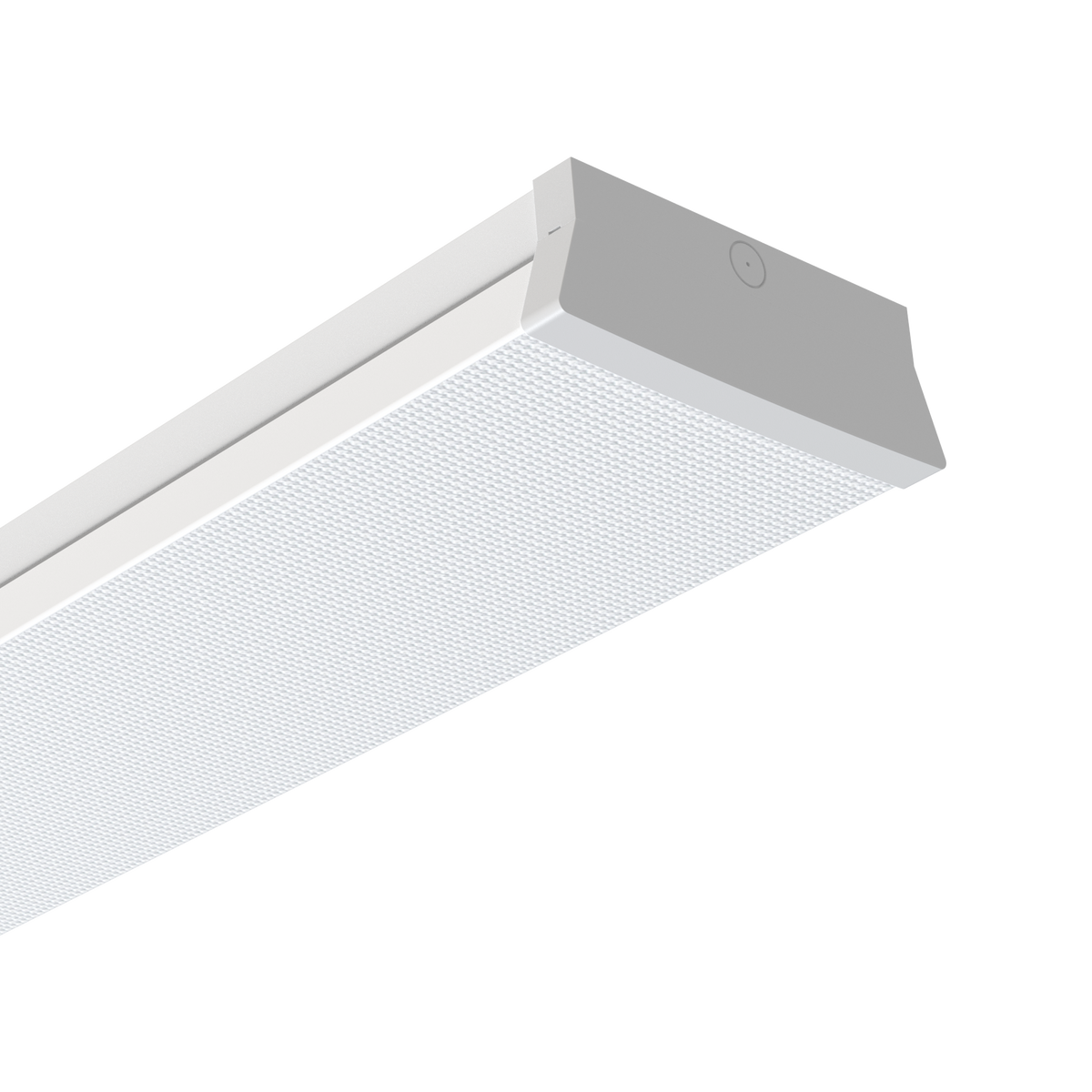

LED615-W34KA Genesis 1520mm Batten Standard 3000K / 4000K
Lumens
Watts
3800lm, 4400lm, 5000lm or 5600lm (Selectable)
28W, 33W, 38W or 43W
Select Battens
LED615
Genesis 1520mm Batten Standard 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
3800lm, 4400lm, 5000lm or 5600lm (Selectable)
Watts
28W, 33W, 38W or 43W
LED615
Genesis 1520mm Batten Dimmable 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4700lm, 5350lm, 5800lm or 6200lm (Selectable)
Watts
40W, 46W, 50W or 54W
LED615
Genesis 1520mm Batten Dali 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
5600lm
Watts
43W
LED615
Genesis 1520mm 3K/4K Batten Emergency 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Lumens
4700lm, 5350lm, 5800lm or 6100lm (Selectable)
Watts
42W, 47W, 50W or 54W
Specifications
LED615-W34KA
Finish
White
Colour Temp
3000K or 4000K (Selectable)
Watts
28W, 33W, 38W or 43W
Lumens
3800lm, 4400lm, 5000lm or 5600lm (Selectable)
Beam Angle
90°
Input
220-240V AC
Dimming / Control
Non-Dimmable
CRI
90
Lifespan
70,000hrs (L80 B50)
Ingress Protection
IP54
Height
72mm
Width
210mm
Length
1520mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
UGR
Suitable for installations requiring UGR of less than 19
Material
Steel, PC
Electrical Class
Class I luminaire, requires earth
Driver
Included, Incorporated
Ambient Operating Temperature
-20..+45°C
Weight
4kg
Power Factor
0.95
Impact Rating
IK05
Warranty
5 Year Warranty
