S532-TD
- Checking stock...
Configure your S532-TD

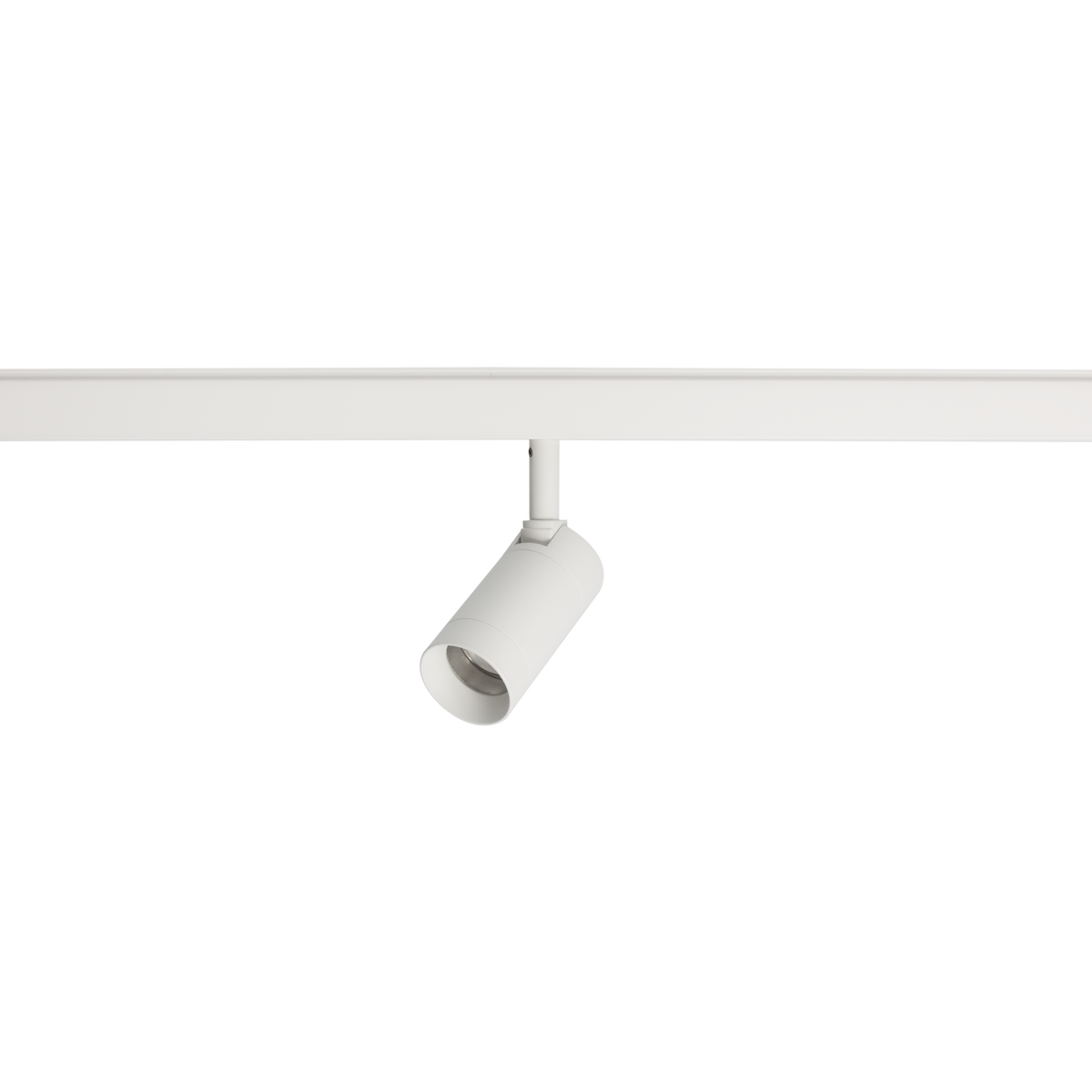

S532-TD-W3K Tiny Zoom Deep Spot White 3000K
Lumens
Watts
Tilt Angle
270lm / 410lm
6.2W
90°
Lumens
Watts
Tilt Angle
270lm / 410lm
6.2W
90°
Not included
Please select from options
Not included
Please select from options
-
Standard L Profile Connector Left (Horizontal) White
-
Standard L Profile Connector Right (Horizontal) White
-
Standard L Profile Connector (Vertical) White
-
48V Flexible "L" Connector White
-
48V Fixed "L" Connector White
-
48V "I" Connector Surface Mount White
-
End Cap - Standard Surface Mount White
-
48V Live End Connector - Left White
-
48V Live End Connector - Right White
-
Cable Suspension Kit 3M White
-
Rod Suspension Kit 1M White
-
Clamp Surface Mount White
-
Surface Mount Deep L Profile Connector Left (Horizontal) White
-
Surface Mount Deep L Profile Connector Right (Horizontal) White
-
Surface Mount Deep L Profile Connector Wall (Vertical) White
-
End Cap - Surface Mount Deep White
-
Recessed Deep L Profile Connector Left (Horizontal) White
-
Recessed Deep L Profile Connector Right (Horizontal) White
-
Recessed Deep L Profile Connector Up/Down (Vertical) White
-
48V "I" Connector Recessed White
-
End Cap - Deep Recessed White
Select Track
Track sold separately. Please select below.
T801-SMW-1M
48V DC Track Surface Mount - Standard 1M White
T801-SMW-2M
48V DC Track Surface Mount - Standard 2M White
T801-SMW-3M
48V DC Track Surface Mount - Standard 3M White
T802-DSMW-1M

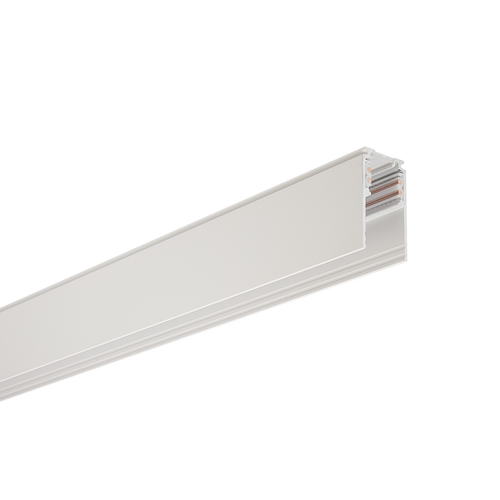

48V DC Track Surface Mount - Deep 1M White
T802-DSMW-2M
48V DC Track Surface Mount - Deep 2M White
T802-DSMW-3M
48V DC Track Surface Mount - Deep 3M White
T803-RCW-1M

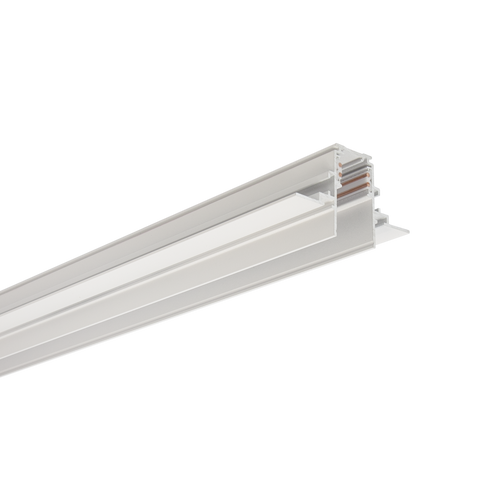

48V DC Track Recessed - Deep 1M White
T803-RCW-2M
48V DC Track Recessed - Deep 2M White
T803-RCW-3M
48V DC Track Recessed - Deep 3M White
Select driver
driver sold separately. Please select below.
Non Dimmable
T800-PS200W
48V DC Track - Power Supply White
Watts
0-200W
DCV48-100W-IP
IP67 100W 48V Constant Voltage Non-dimmable Driver
Watts
0W-100W
DCV48-320W-IP
IP67 320W 48V Constant Voltage Non-dimmable Driver
Watts
0W-320W
Specifications
S532-TD-W3K
Finish
White
Colour Temp
3000K Warm White
Watts
6.2W
Lumens
270lm / 410lm
Beam Angle
Adjustable 12° - 40°
Input
48V DC
Dimming / Control
Non-Dimmable
CRI
90
Tilt Angle
90°
Rotate Angle
360°
Lifespan
61,000hrs (L80 B50)
Ingress Protection
IP20
RAL Colour
RAL9003
Diameter
Spot: 31mm
Length
62mm
Binning
SDCM 3
Material
Aluminium
Driver
Not included, Driver sold separately
Weight
0.135kg
Warranty
5 Year Warranty
Specifications
S532-TD-W3K
Specifications
None
Resources
