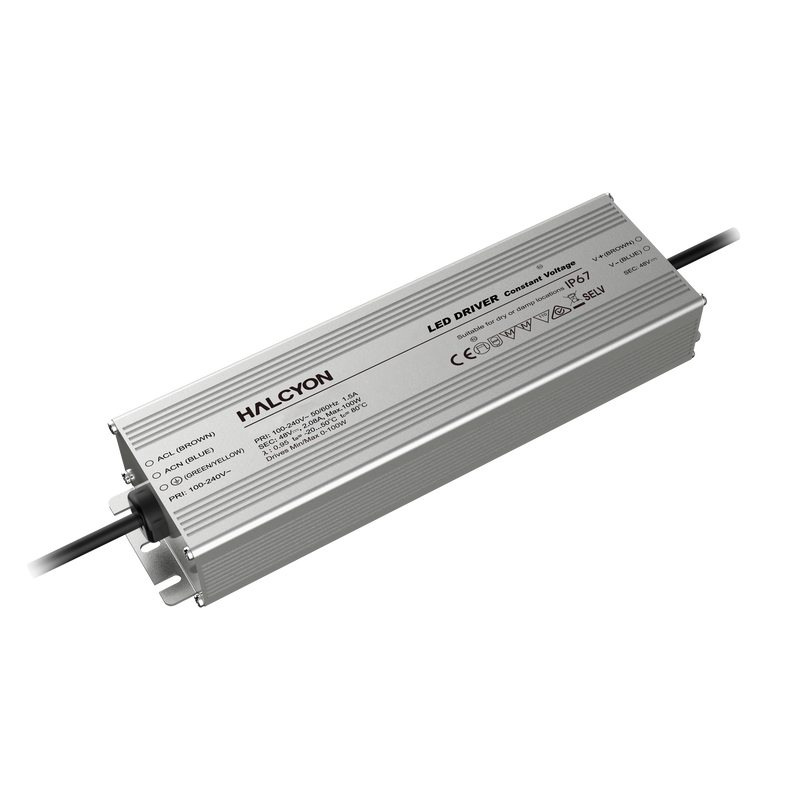

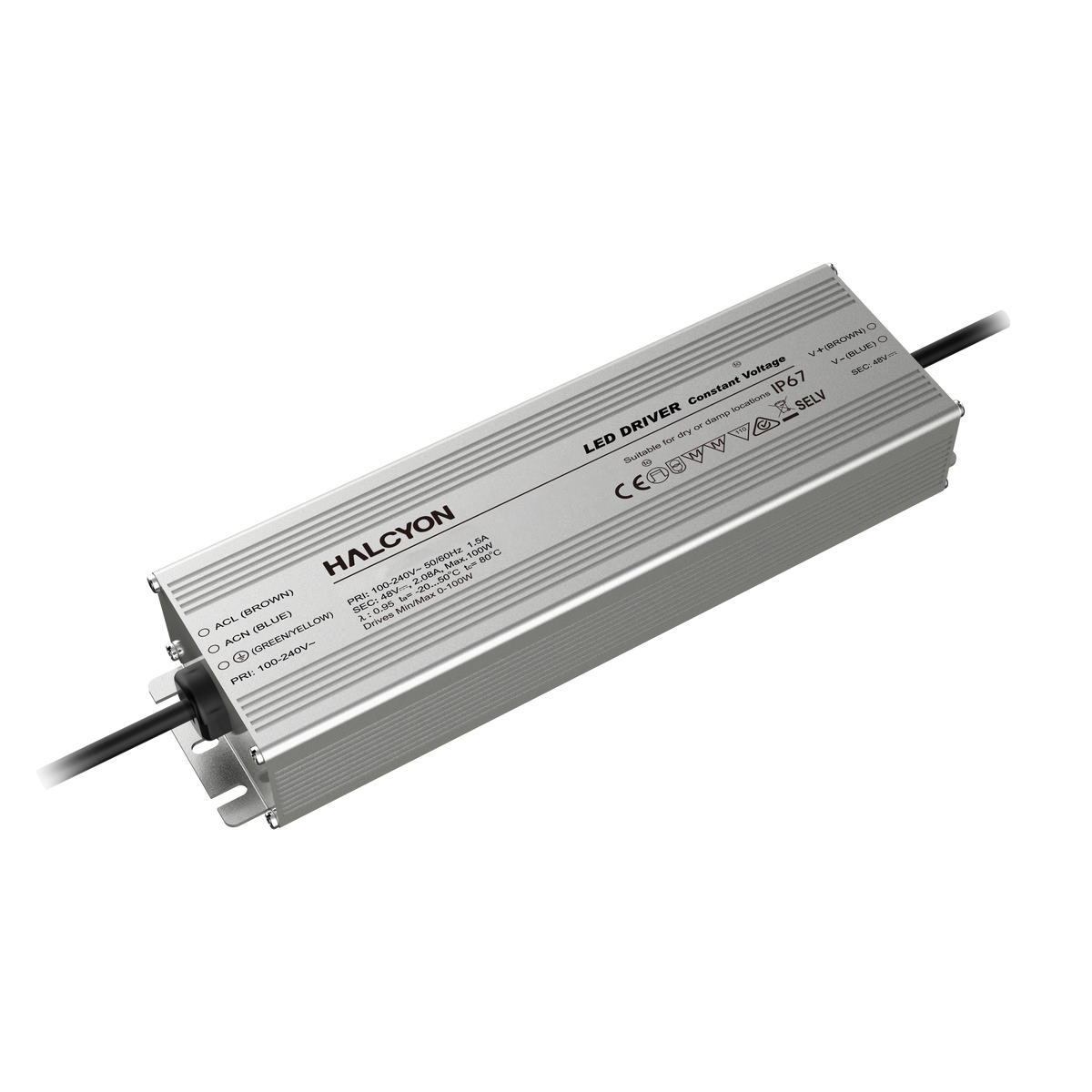

IP67 100W 48V Constant Voltage Non-dimmable Driver

DCV48-100W-IP

All DCV48-100W-IP

DCV48-100W-IP

  • Checking stock...
Driver Non-Dimmable Pri:240V Sec:48V DC 0-2.08A CV 0-100W IP67
Non dimmable
IP67 100W 48V Constant Voltage Non-dimmable Driver

DCV48-100W-IP IP67 100W 48V Constant Voltage Non-dimmable Driver

Watts

0W-100W

Watts

0W-100W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

IP67 100W 48V Constant Voltage Non-dimmable Driver

Non dimmable

DCV48-100W-IP

Watts

0W-100W

Input

100-240V 50/60Hz

Dimming / Control

Non-Dimmable

Ingress Protection

IP67

Height

35mm

Width

67mm

Length

199mm

Electrical Class

Class I

Driver Output Voltage

48V

Driver Output Current

0-2.08A

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
