R836 S4
R836
- Custom Build - Request Availability

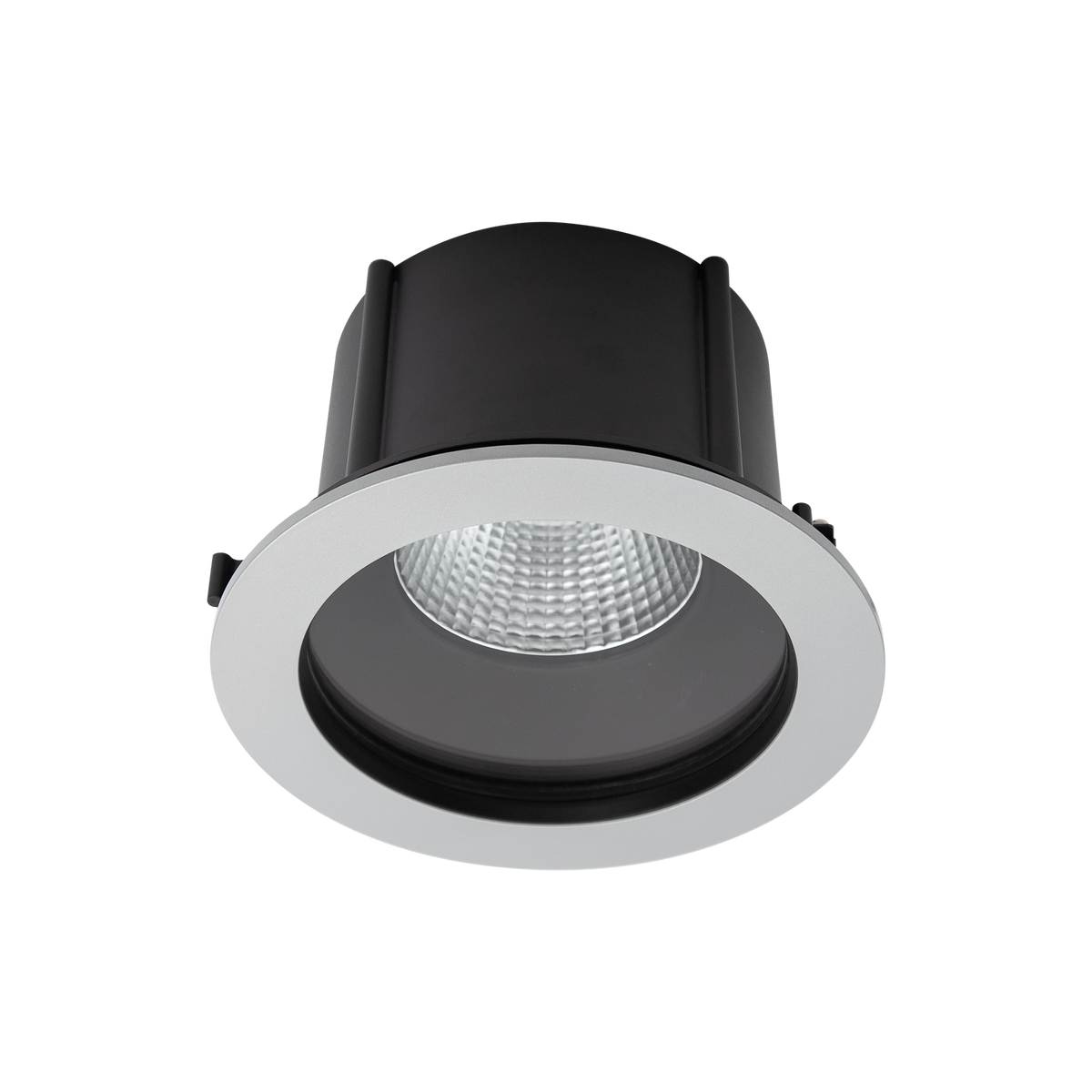

R836 S4 Exterior Round IP66 X-Large Downlight Silver 4000K
Lumens
Watts
2600lm (See Spec Sheet)
18W or 25.5W
View Options
-
12° Reflector Only for R836
-
20° Reflector Only for R836
-
70° Reflector Only for R836
-
Frosted Glass Cover for R836
-
Honeycomb Glare Reducer for R836
-
Plastic Installation Housing for Concrete Castings for R836
Select Downlights
R836

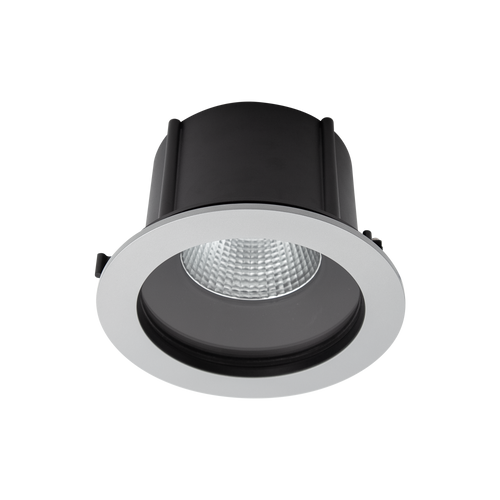

Exterior Round IP66 X-Large Downlight Silver 4000K
Temp.
4000K Natural White
Cut out
200mm
Lumens
2600lm (See Spec Sheet)
Watts
18W or 25.5W
R836

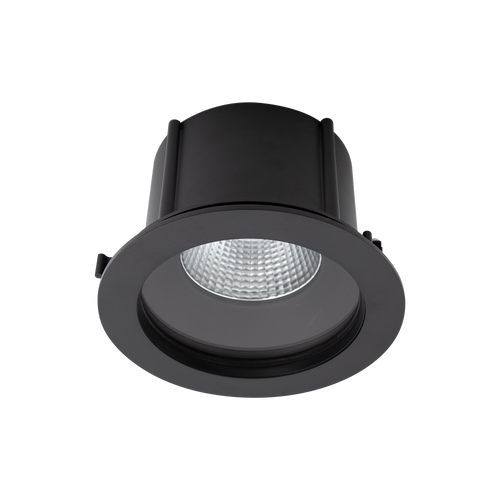

Exterior Round IP66 X-Large Downlight Black 4000K
Temp.
4000K Natural White
Cut out
200mm
Lumens
2600lm (See Spec Sheet)
Watts
18W or 25.5W
R836
Exterior Round IP66 X-Large Downlight White 4000K
Temp.
4000K Natural White
Cut out
200mm
Lumens
2600lm (See Spec Sheet)
Watts
18W or 25.5W
Specifications
Finish
Silver
Colour Temp
4000K Natural White
Watts
18W or 25.5W
Lumens
2600lm (See Spec Sheet)
Beam Angle
40°
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs (L70)
Ingress Protection
IP66
Cut Out
200mm
Diameter
220mm
Height
130mm
Classification
Non IC
Height Clearance to Building Elements
100mm
Side Clearance to Building Elements
100mm
Material
Aluminium, Safety Glass
Electrical Class
Class III
Driver Output Current
700mA
Driver Included / Incorporated
Driver not included, sold separately
Impact Rating
IK08
Warranty
5 Year Warranty
