R773
- Checking stock...
Configure your R773 2 options
- Black (selected)
- White

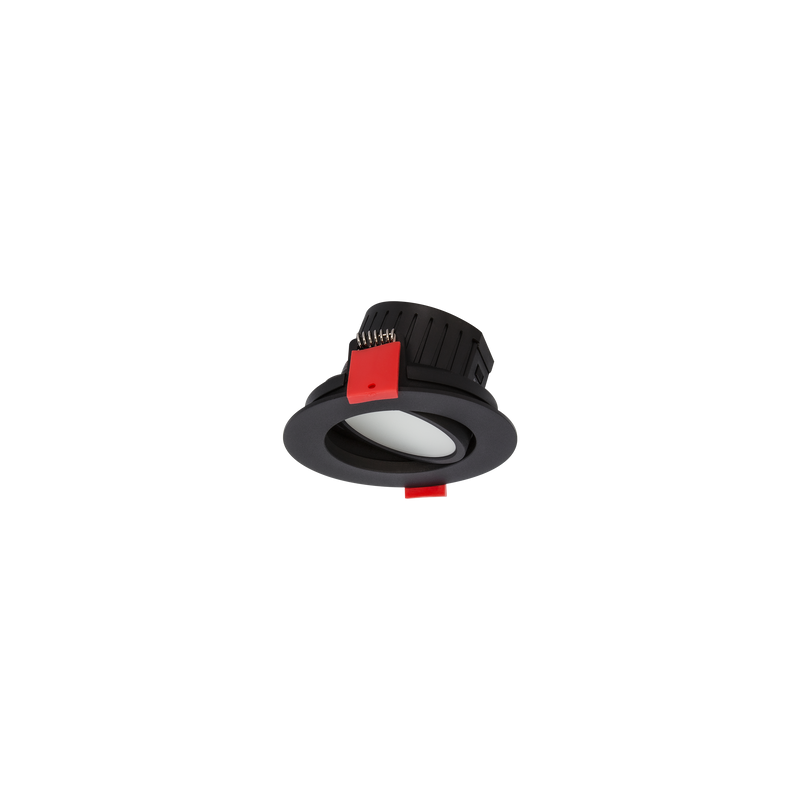

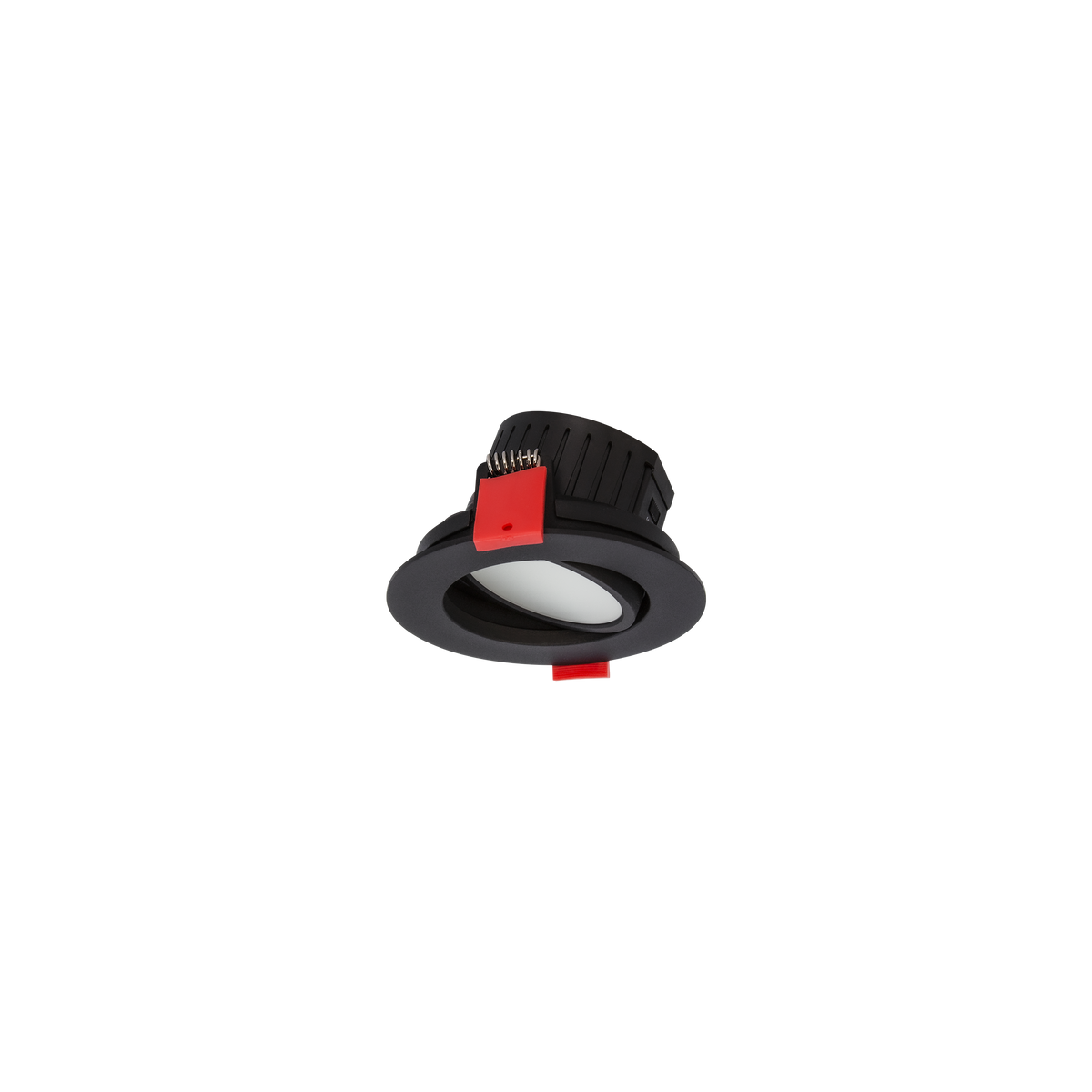

R773 B34V3 Tilt Standard Premium Economy Downlight Kit Black 3000K / 4000K
Lumens
Watts
Tilt Angle
750lm (See spec sheet)
8W
25°
DCC180-DX-9W 180mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
Watts
4.5W-9W
Select Downlights
Tilt Standard Premium Economy Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Tilt Angle
25°
Cut out
92mm
Lumens
750lm (See spec sheet)
Watts
8W

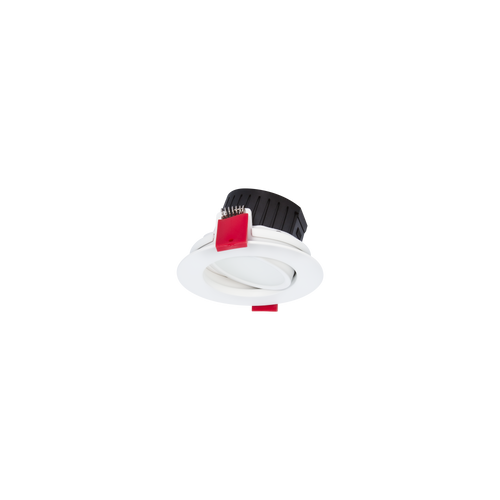

Tilt Standard Premium Economy Downlight Kit White 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Tilt Angle
25°
Cut out
92mm
Lumens
850lm (See spec sheet)
Watts
8W
Specifications
R773 B34V3
Cut Out
92mm
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
8W
Lumens
750lm (See spec sheet)
Beam Angle
90°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Tilt Angle
25°
Lifespan
100,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
103mm
Height
54mm
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
180mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC180-DX-9W
Watts
4.5W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
