R771 B34V3
R771
- Checking stock...

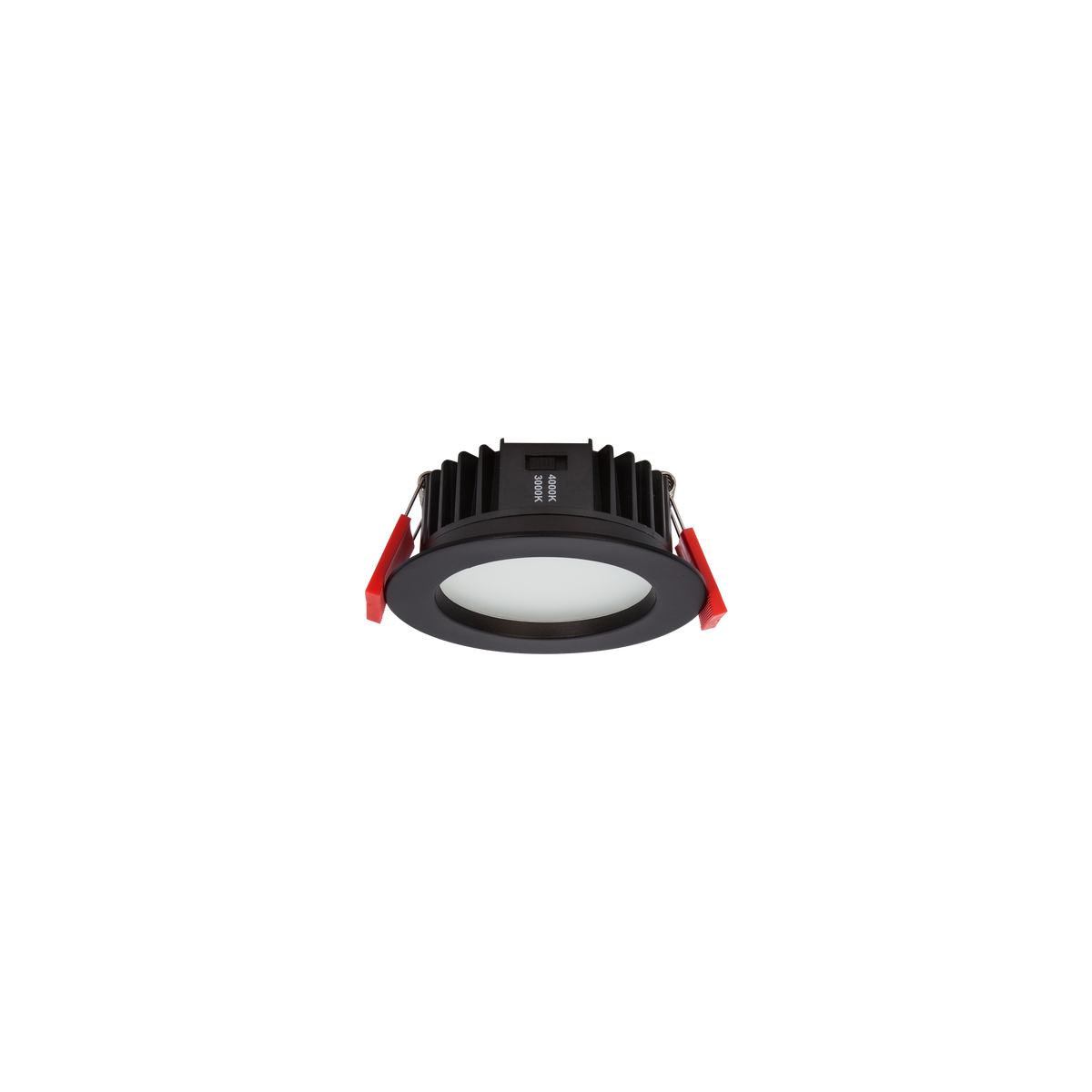

R771 B34V3 LEDE Premium Economy Standard Downlight Kit Black 3000K / 4000K
Lumens
Watts
850lm (See spec sheet)
8W
View Options
DCC180-DX-9W
Watts
4.5W-9W
Watts
4.5W-9W
Select Downlights
R771

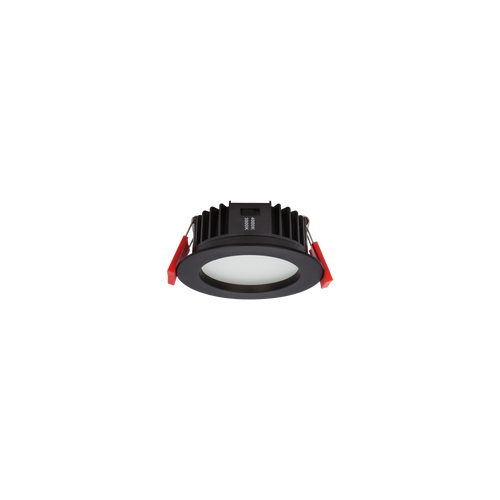

LEDE Premium Economy Standard Downlight Kit Black 3000K / 4000K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
850lm (See spec sheet)
Watts
8W
R771

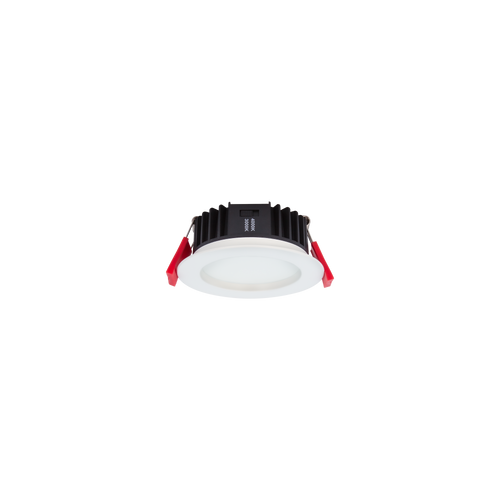

LEDE Premium Economy Standard Downlight Kit White 3000K / 4000K
Temp.
Selectable 3000K Warm White or 4000K Natural White
Cut out
92mm
Lumens
950lm (See spec sheet)
Watts
8W
R771

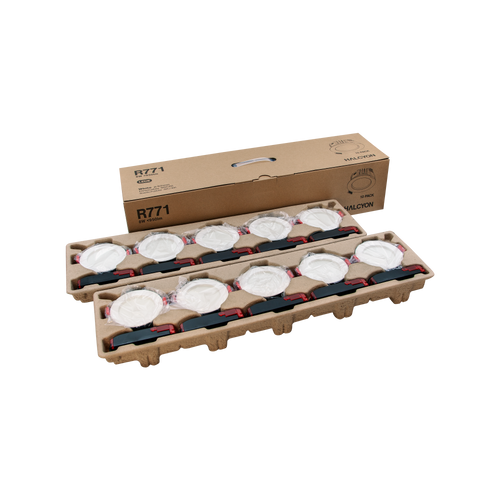

LEDE Premium Economy Standard Downlight Kit (10 pack) White 3K/4K
Temp.
3000K or 4000K (Selectable)
Cut out
92mm
Lumens
950lm (See spec sheet)
Watts
8W
R771

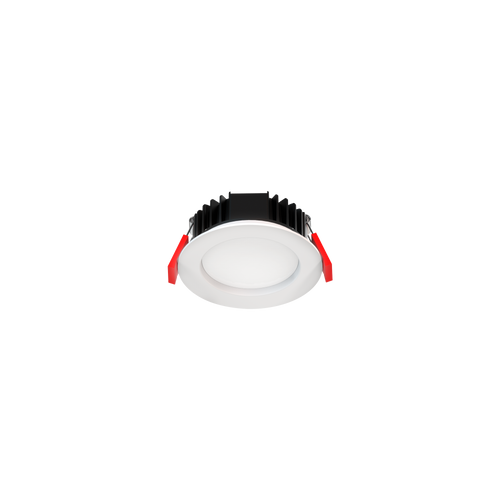

LEDE Downlight Kit White Casambi 2700-6500K Tunable White
Temp.
2700K to 6500K (Tunable White)
Cut out
92mm
Lumens
850lm (See Spec Sheet)
Watts
8W
R771

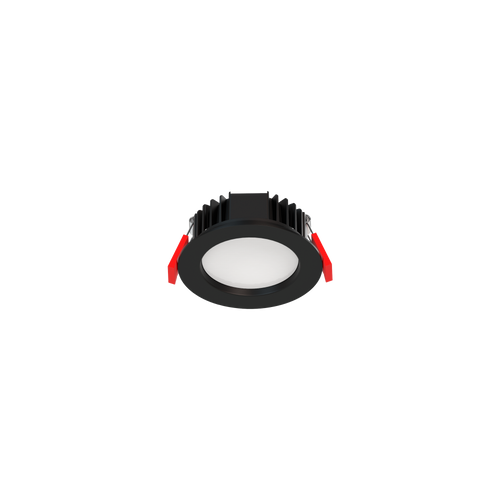

LEDE Downlight Kit Black Casambi 2700-6500K Tunable White
Temp.
Tunable White 2700K to 6500K
Cut out
92mm
Lumens
800lm (See Spec Sheet)
Watts
8W
Specifications
Finish
Black
Colour Temp
3000K or 4000K (Selectable)
Watts
8W
Lumens
850lm (See spec sheet)
Beam Angle
90°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
55,000hrs (L80)
Ingress Protection
IP44
Cut Out
92mm
Diameter
103mm
Height
43mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, PC
Electrical Class
Class II
Driver Output Current
180mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
180mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
