R750 BCCTCAS2
R750
- Checking stock...

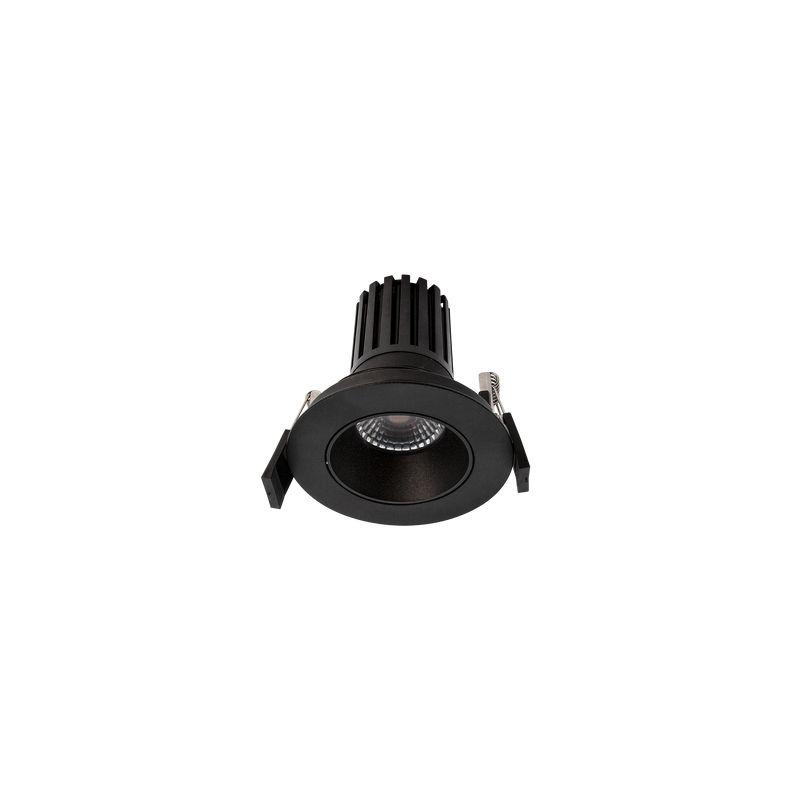

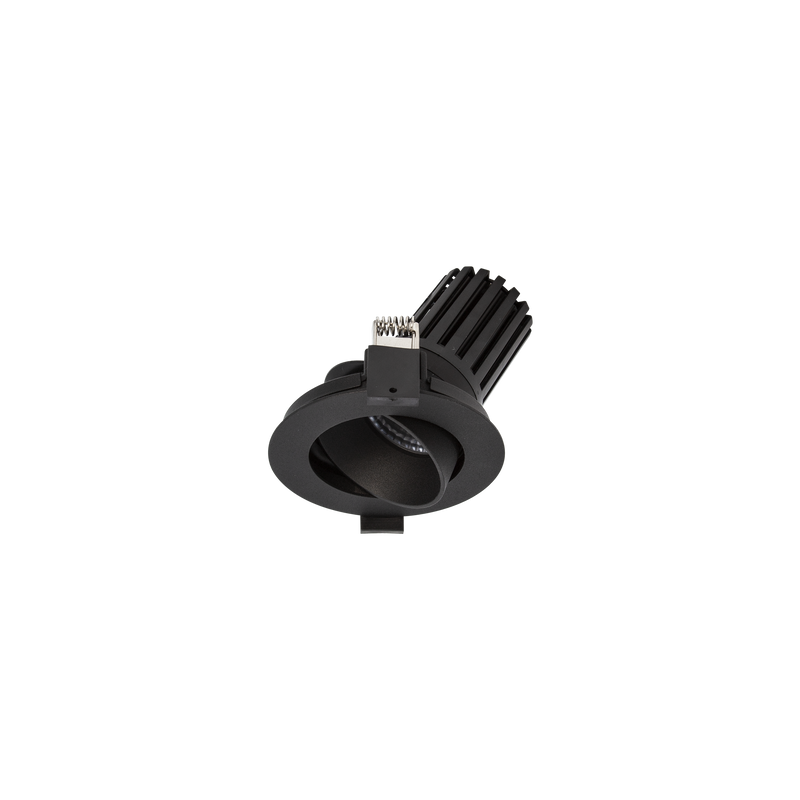

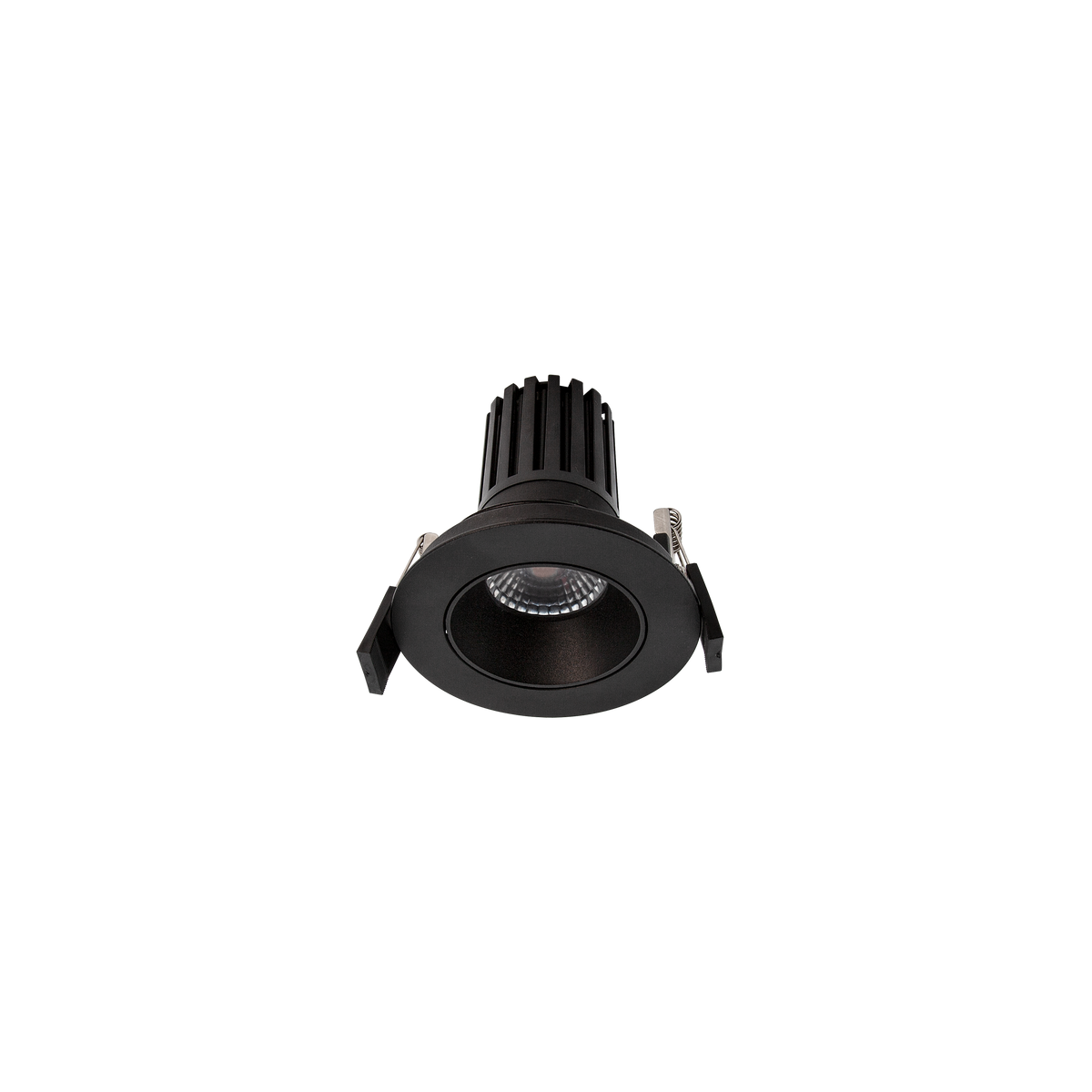

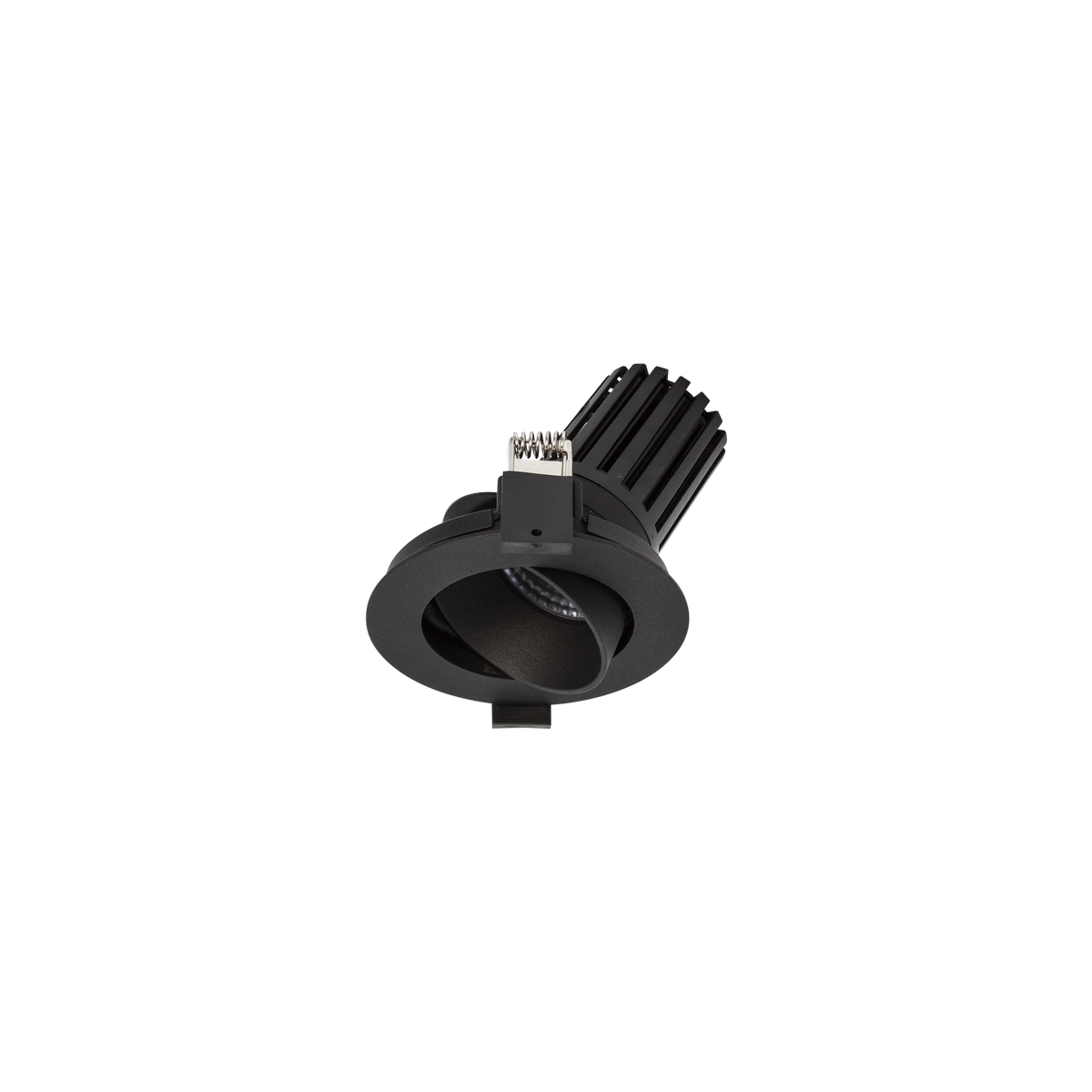

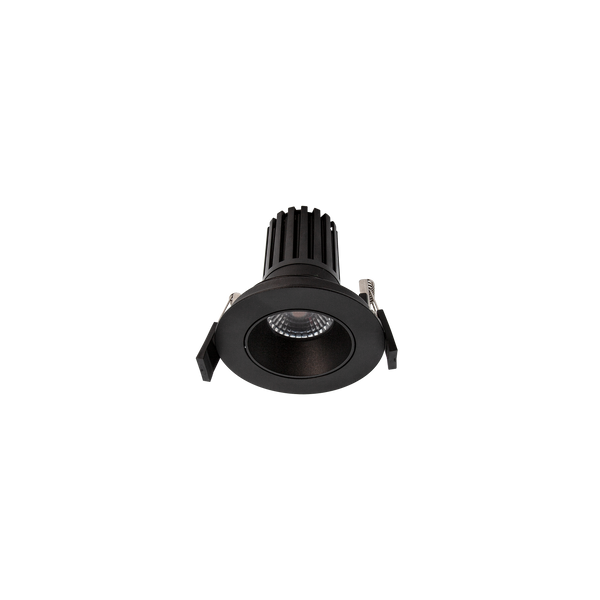

R750 BCCTCAS2 Design Standard Tilt Downlight Black 2700-6500K Tunable White Casambi
Lumens
Watts
Tilt Angle
820lm (See Spec Sheet)
10.5W
32°
View Options
-
R750 Adaptor Plate Black
Select Downlights
R750
Design Standard Tilt Downlight Black 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Tilt Angle
32°
Cut out
85-92mm
Lumens
820lm (See Spec Sheet)
Watts
10.5W
R750
Design Standard Tilt Downlight Kit White 2700K
Temp.
2700K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
800lm
Watts
9.5W
R750
Design Standard Tilt Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
860lm
Watts
9.5W
R750

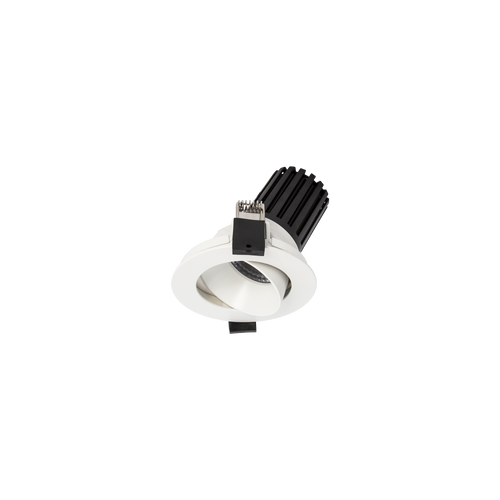

Design Standard Tilt Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
32°
Cut out
85-92mm
Lumens
880lm
Watts
9.5W
R750
Design Standard Tilt Downlight White 2700-6500K Tunable White Casambi
Temp.
2700K to 6500K (Tunable White)
Tilt Angle
32°
Cut out
92mm
Lumens
880lm (See Spec Sheet)
Watts
10.5W
R750
Design Standard Tilt Downlight Kit Black 2700K
Temp.
2700K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
760lm
Watts
9.5W
R750
Design Standard Tilt Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
85-92mm
Lumens
840lm
Watts
9.5W
R750
Design Standard Tilt Downlight Kit Black 4000K
Temp.
4000K
Tilt Angle
32°
Cut out
85-92mm
Lumens
850lm
Watts
9.5W
Specifications
Finish
Black
Colour Temp
2700K to 6500K (Tunable White)
Watts
10.5W
Lumens
820lm (See Spec Sheet)
Beam Angle
50°
Dimming / Control
Casambi
CRI
90
Lifespan
55,000hrs (L80)
Tilt Angle
32°
Ingress Protection
IP54
Cut Out
85-92mm
Diameter
100mm
Height
101mm
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, ADC12, PC
Electrical Class
Class II
Driver Output Current
230mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Downloads
