R737
- Checking stock...
Configure your R737 3 options
- White (selected)
- Black — not available in this configuration

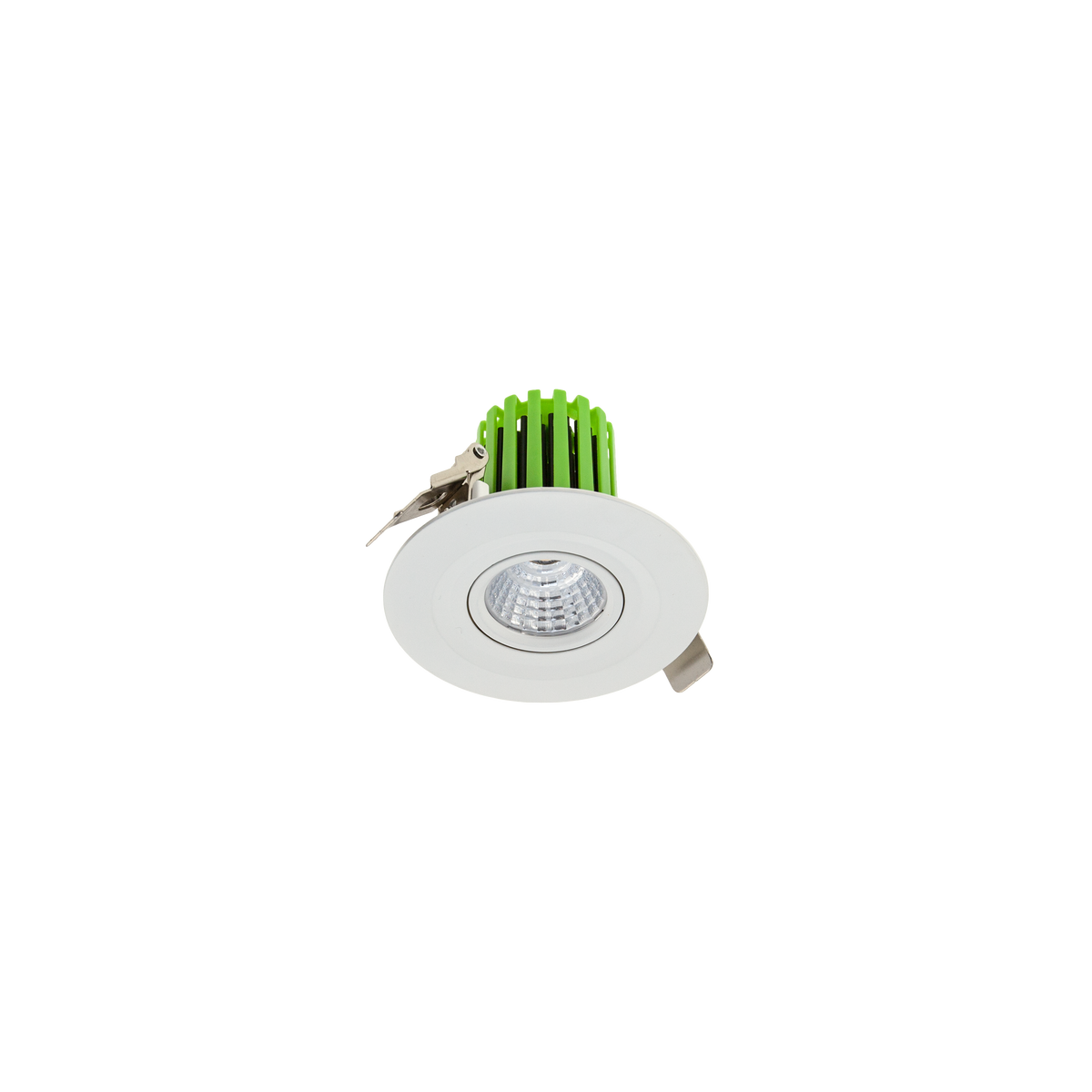

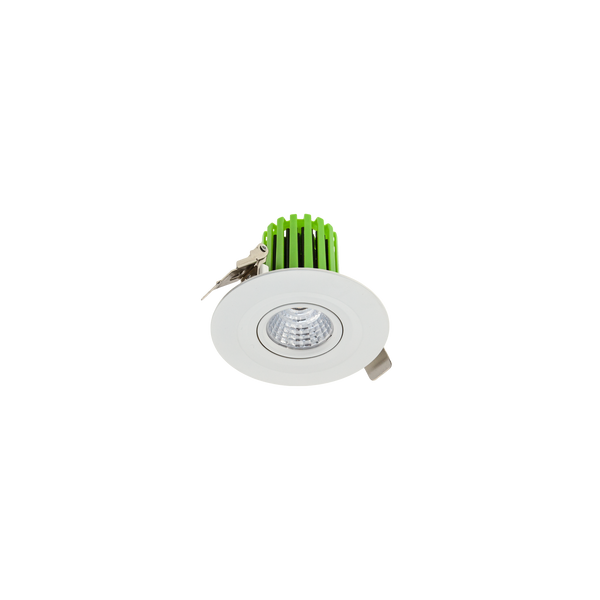

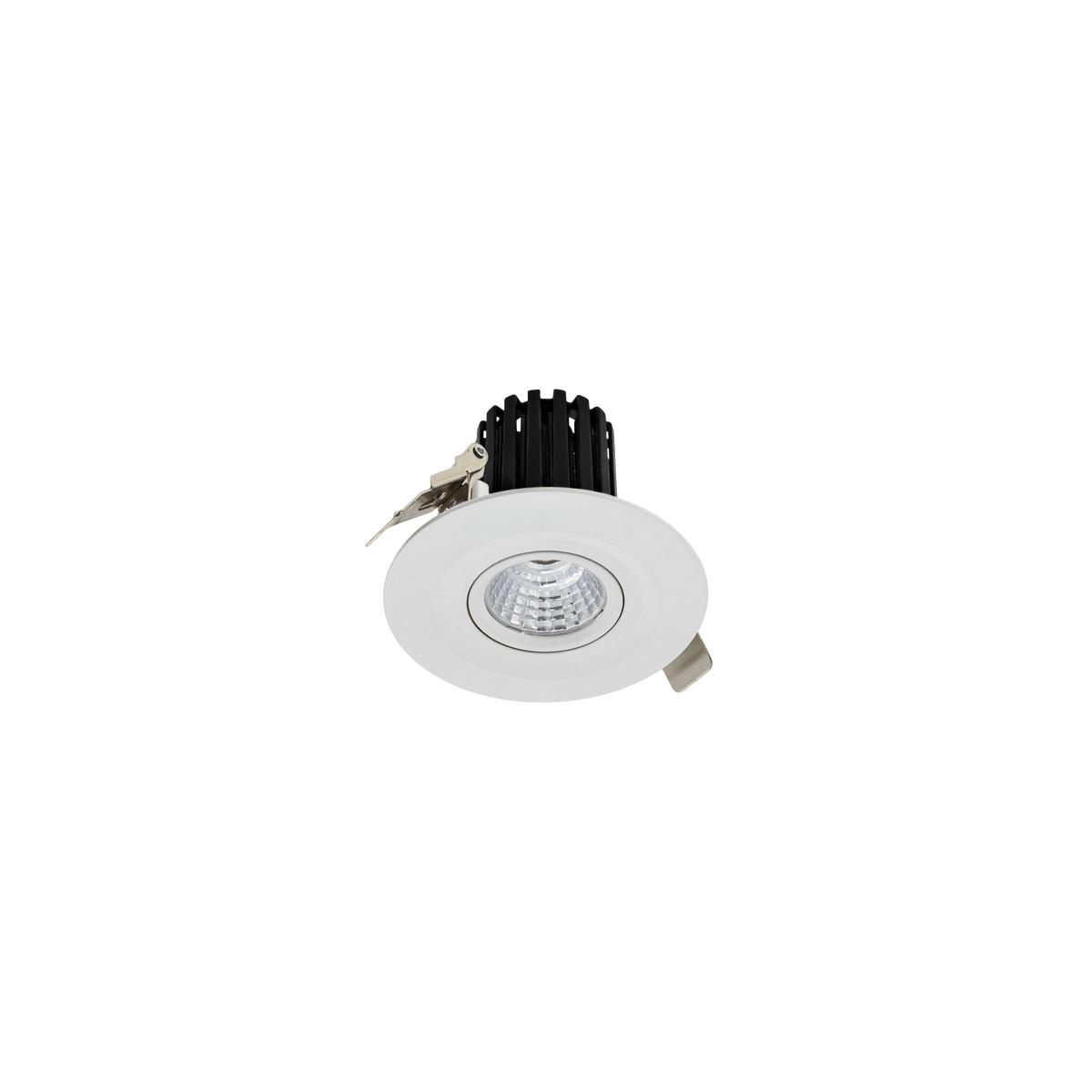

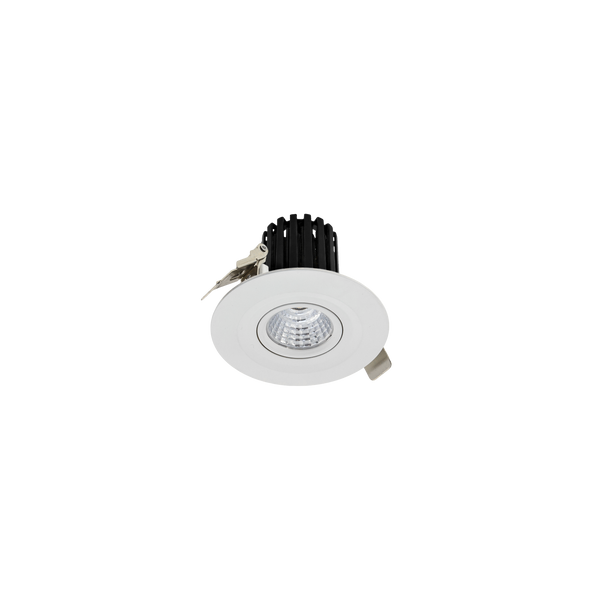

R737 KWNUDL Smart Tilt Downlight Kit White 4000K
Lumens
Watts
Tilt Angle
950lm
12W
30°
DCC260-DX-12W-GL 260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Watts
6W-12W
-
Conversion Plate for R737 Downlight Kit White
Select Downlights
Smart Tilt Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82mm
Lumens
930lm
Watts
12W
Smart Tilt Downlight Kit White 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
82mm
Lumens
950lm
Watts
12W
Smart Tilt Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82mm
Lumens
880lm
Watts
12W
Specifications
R737 KWNUDL
Cut Out
82mm
Finish
White
Colour Temp
4000K Natural White
Watts
12W
Lumens
950lm
Beam Angle
60°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Tilt Angle
30°
Lifespan
105,000hrs (L80 B10)
Ingress Protection
IP44
Diameter
105mm
Height
80mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium with Patented Heat Shield & Gasket
Electrical Class
Class II
Driver Output Current
260mA
Driver
Included, Remote
Warranty
5 Year Warranty
Specifications
DCC260-DX-12W-GL
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
