R711 WWL
R711
- Checking stock...

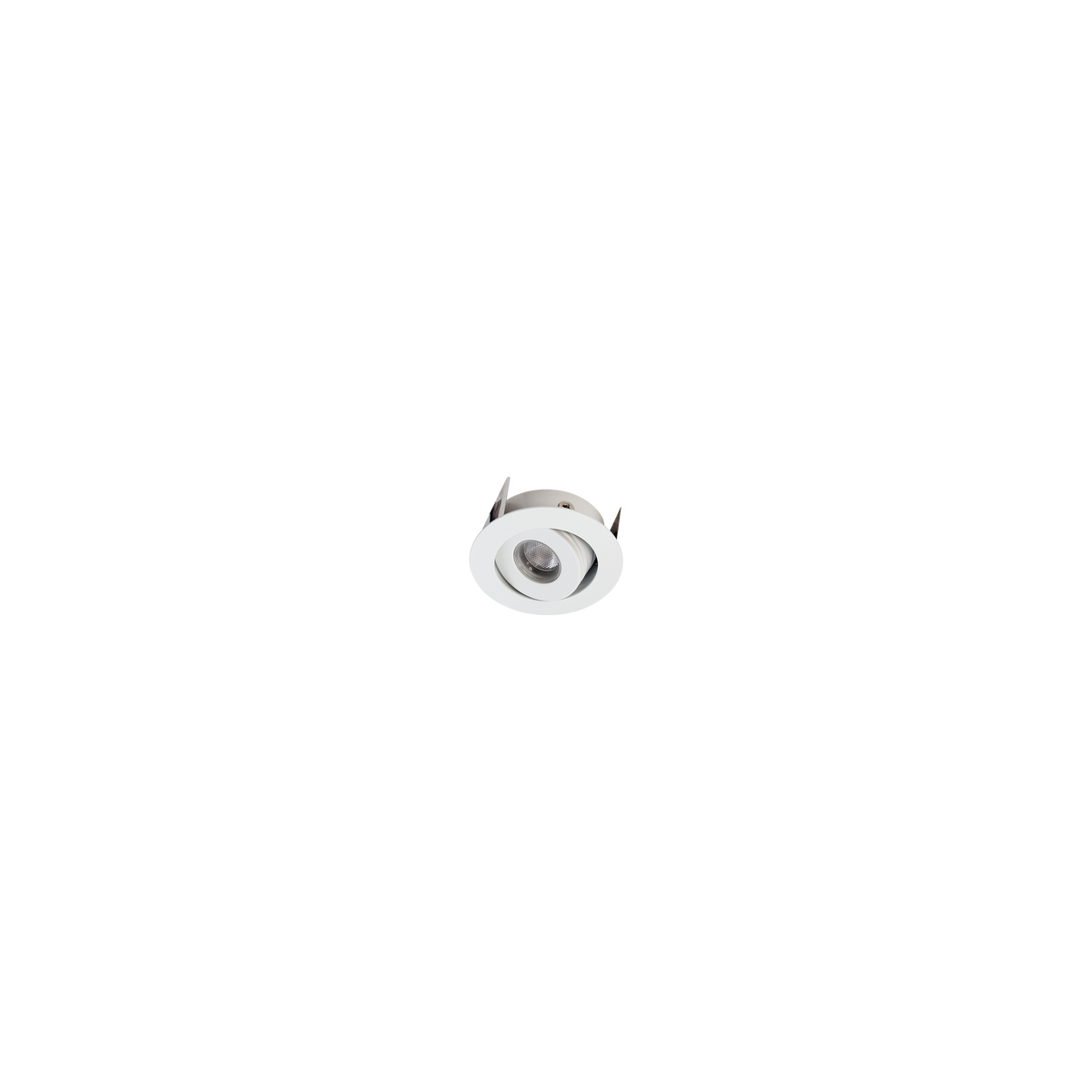

R711 WWL Mini Shallow Tilt Wide Beam White 3000K
Lumens
Watts
Tilt Angle
70lm
1.2W
30°
Lumens
Watts
Tilt Angle
70lm
1.2W
30°
Add Driver
driver not included
View Options
Select driver
driver sold separately. Please select below.
Dimmable
DCC350-DM-4W-IP
IP65 350mA 4W Constant Current Mini Dimmable Driver
Watts
2W-4W
DCC350-DM-10W-IP
IP65 350mA 10W Constant Current Mini Dimmable Driver
Watts
5W-10W
DCC350-DX-6W
350mA 6W Dimmable Constant Current DX Series Driver
Watts
3.5W-6W
DCC350-DX-9W
350mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
DCC350-DX-12W
350mA 12W Dimmable Constant Current DX Series Driver
Watts
6W-12W
DCC350-DX-20W
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
DCC350-DX-28W
350mA 28W Dimmable Constant Current DX Series Driver
Watts
14W-28W
Non Dimmable
DCC350-M-4W-IP
IP65 350mA 4W Constant Current Mini Non-dimmable Driver
Watts
1W-4W
DCC350-M-12W-IP
IP65 350mA 12W Constant Current Mini Non-dimmable Driver
Watts
6W-12W
DCC350-6W
350mA 6W Constant Current Non-dimmable Driver
Watts
3W-6W
DCC350-12W
350mA 12W Constant Current Non-dimmable Driver
Watts
1W-12W
DCC350-20W
350mA 20W Constant Current Non-dimmable Driver
Watts
1W-20W
DCC350-40W
350mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
1.2W
Lumens
70lm
Beam Angle
60°
Input
350mA
Dimming / Control
Dimmable
CRI
90
Lifespan
50,000hrs
Tilt Angle
30°
Ingress Protection
IP20
Cut Out
46mm
Diameter
52mm
Height
22mm
Binning
SDCM 3
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class III
Driver Output Current
350mA
Driver Included / Incorporated
Driver not included, sold separately
Warranty
5 Year Warranty
Driver
None
