R692 W4KFR
R692
- Checking stock...

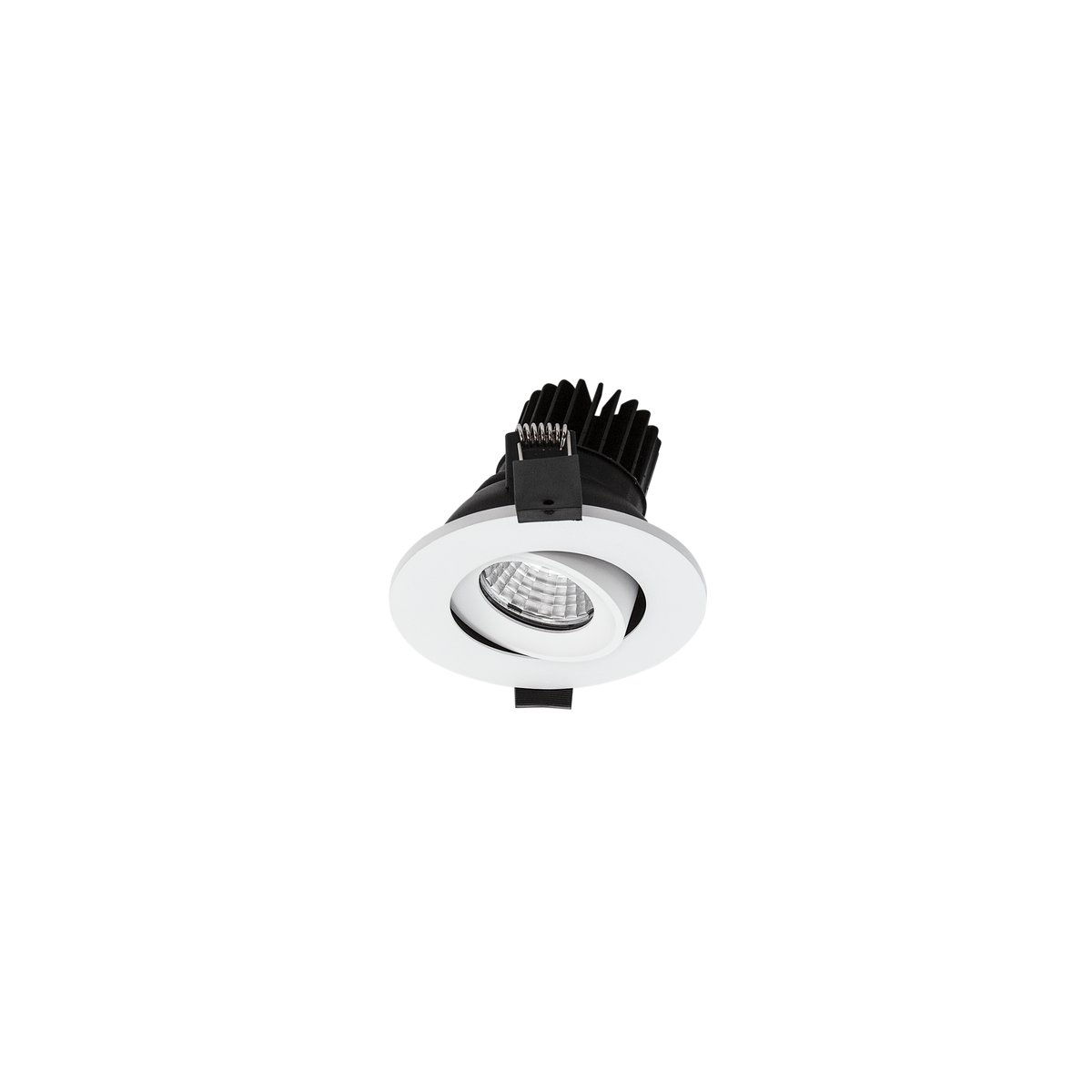

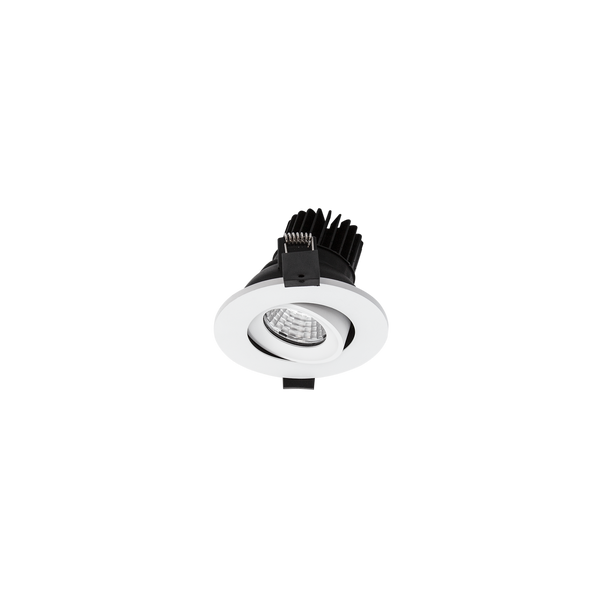

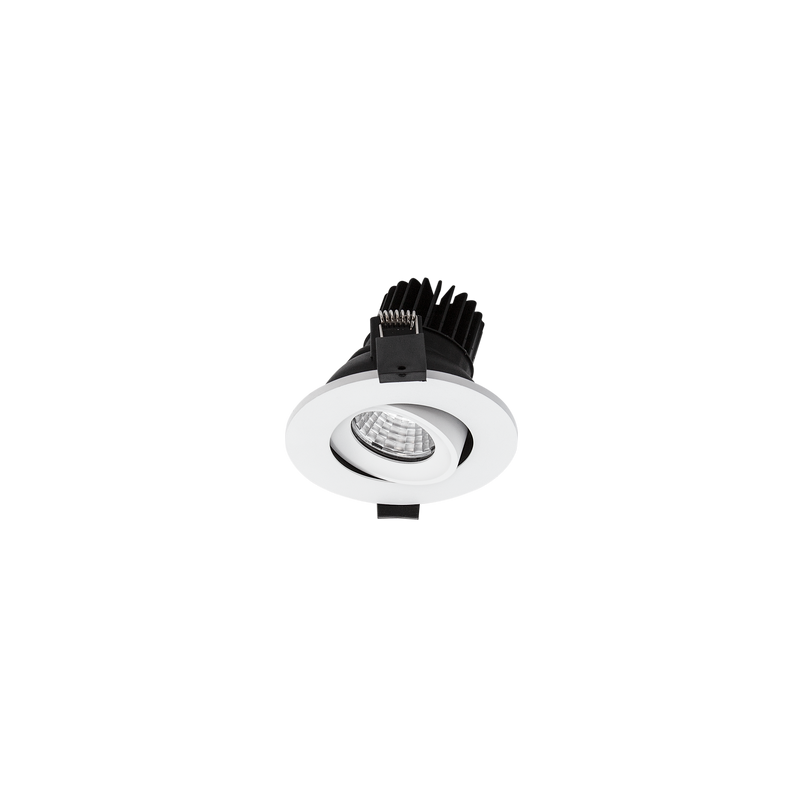

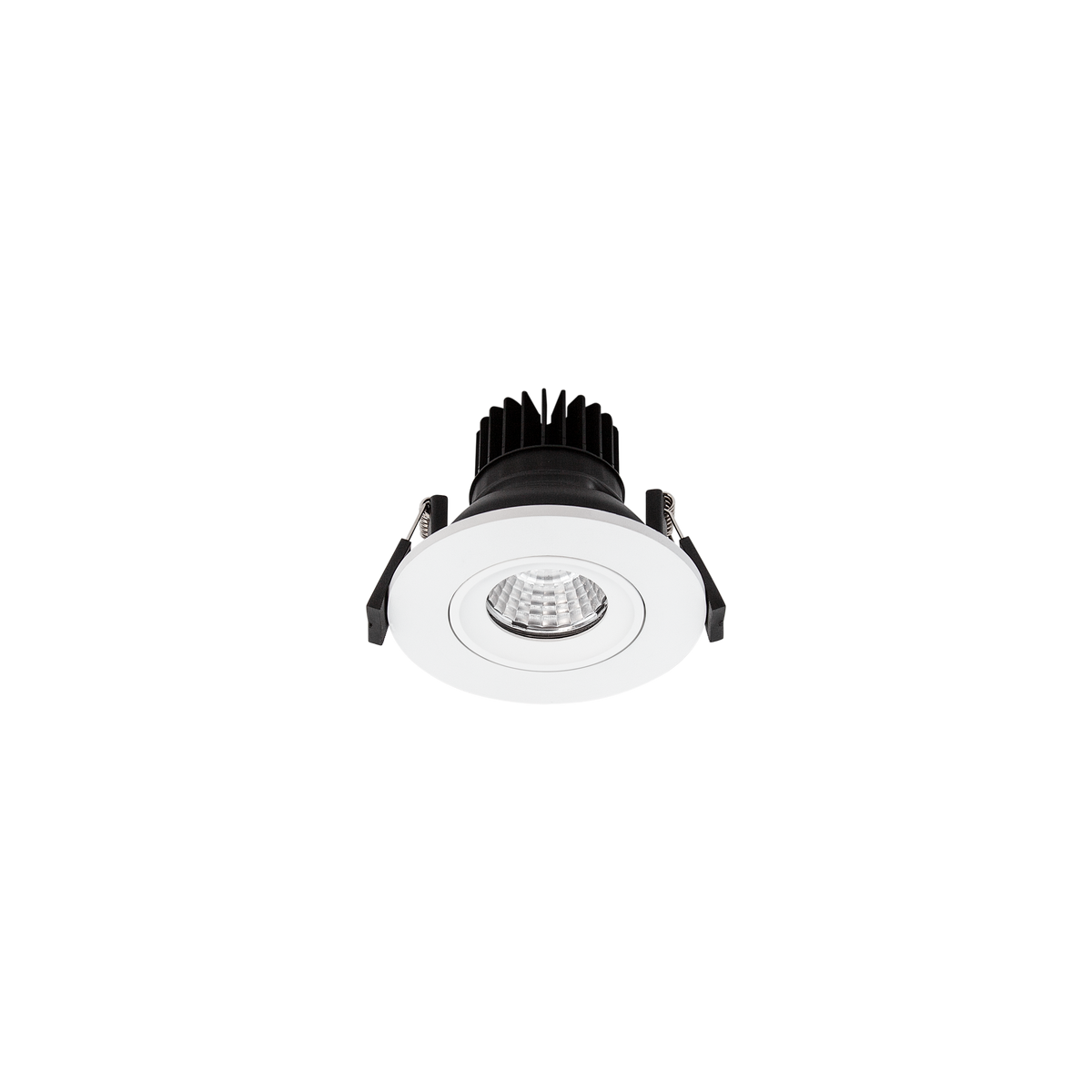

R692 W4KFR Smart Tilt Classic Downlight Kit Fire Rated White 4000K
Lumens
Watts
Tilt Angle
800lm
9.5W
30°
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R692
Smart Tilt Classic Downlight Kit Fire Rated White 4000K
Temp.
4000K Natural White
Tilt Angle
30°
Cut out
82mm
Lumens
800lm
Watts
9.5W
R692
Smart Tilt Classic Downlight Kit Fire Rated White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82mm
Lumens
770lm
Watts
9.5W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
9.5W
Lumens
800lm
Beam Angle
60°
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
50,000hrs
Tilt Angle
30°
Ingress Protection
IP54
Cut Out
82mm
Diameter
104mm
Height
81mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F
Material
Steel, ADC12, Silica, Fireproof Graphite
Electrical Class
Class II
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
